Half-Bridge (HB) DC-DC Power Supply Basic Simulation Circuit

This reference design provides OrCAD® based simulation circuit, simulation results and design guide. This is for designing Half-Bridge (HB) topology of DC-DC power supply.

Circuit of Half-Bridge (HB) DC-DC power supply basic simulation circuit.

Features

  • undled simulation circuit and device models.
  • Able to edit power supply specificatoin and devices freely.
  • Able to set power supply specificatoin and ciruit parameters on OrCAD®

Description

  • Basic simulation circuit of Half-Bridge DC-DC Power Supply Basic Simulation Circuit that can operate on OrCAD®.
Input voltage DC 48 V
Output voltage DC 5 V
Output power 100 W

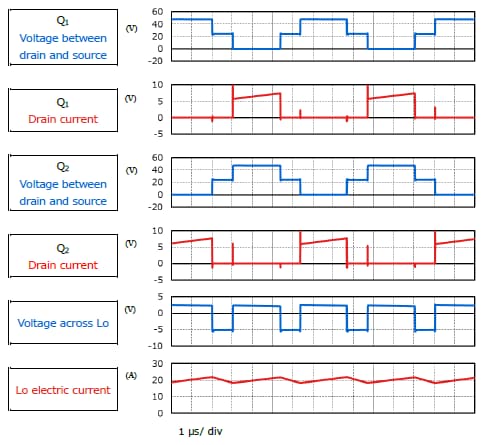

Waveforms of Half-Bridge (HB) DC-DC power supply basic simulation circuit.
Waveforms

Design Documents

Materials for designers, such as an overview of circuit operation and explanations of design considerations. Please click on each tab to view the contents.

Design Data

Provides circuit data that can be loaded into EDA tools, PCB layout data, and data used in PCB manufacturing. Available in formats from multiple tool vendors. You can freely edit it with your preferred tool.

Used Toshiba Items

Part Number Device Category Portion Usage Description
Power MOSFET (N-ch single 60V<VDSS≤150V) Primary side・2 N-ch MOSFET, 80 V, 0.0133 Ω@10V, TSON Advance, U-MOSⅧ-H
Power MOSFET (N-ch single VDSS≤30V) Secondary side
synchronous rectification・2		 N-ch MOSFET, 30 V, 0.002 Ω@10V, SOP Advance, U-MOSⅨ-H
