Overall block diagram

Overall block diagram example

Sub block diagram

DC-DC power supply circuits
Example of a DC-DC power supply circuit for providing various DC voltages to systems

Application / Refrigerator

MCU power supply circuit
Example of a stable power supply circuit for MCU

Application / Refrigerator

Compressor drive circuit
Example of a high-voltage motor driving circuit for a compressor using an IPD

Application / Refrigerator

Damper drive circuit
Example of a small size motor driving circuit for damper using MOSFETs

Application / Refrigerator

Fan drive circuit
Example of a small size motor driving circuit for fan using MOSFETs

Application / Refrigerator

LED driving circuit
Example of an LED driving circuit for indicator using MOSFETs

Application / Refrigerator

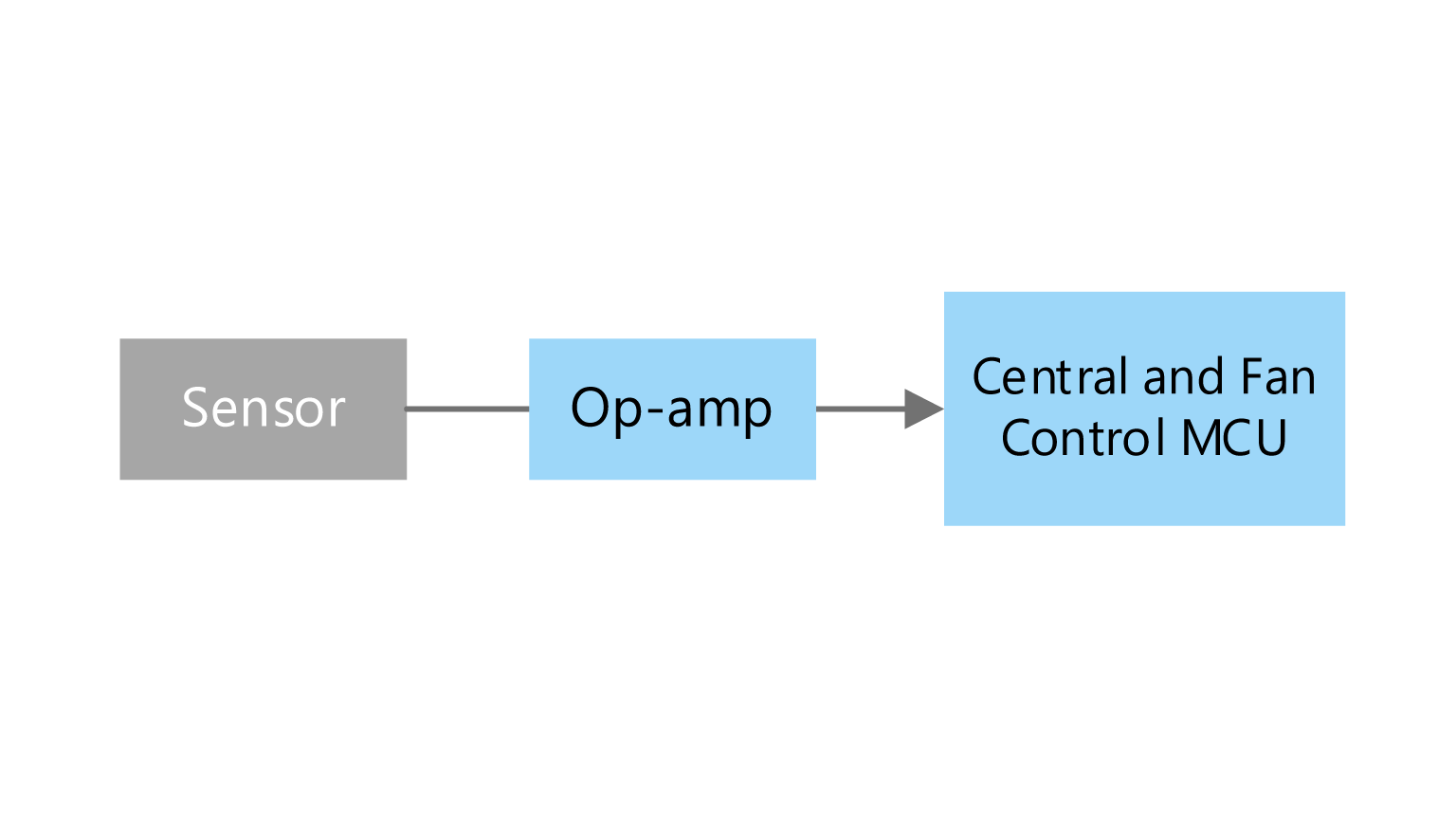

Sensor input circuit

Application / Refrigerator

Heater control circuit
Example of a heater control circuit using triac output coupler

Application / Refrigerator


Name Date

Reference Design

Application Circuit of TPD4207F for Small Compressor Motor Drive
This reference design provides an example circuit of small compressor motor drive with combination of TPD4207F and TMPM4K0FSADUG, and design guide of peripheral circuit.

TPD4207F / small / compressor / motor

LDO Regulator TCR3UG Series Application for Power Supply of IoT Devices
This reference design provides document with low consumption current, PSRR, and dynamic response.The LDO has small package, low consumed power, and fast load transient response.

LDO Regulator / TCR3UG

LDO Regulator TCR15AG (fixed output voltage type) Application & Circuit
This reference design provides document with PSRR, dynamic response and controlling output voltage.The LDO has very small package and fixed output voltage for consumer application.

LDORegulator / TCR15AG
