Head-up Display (HUD)

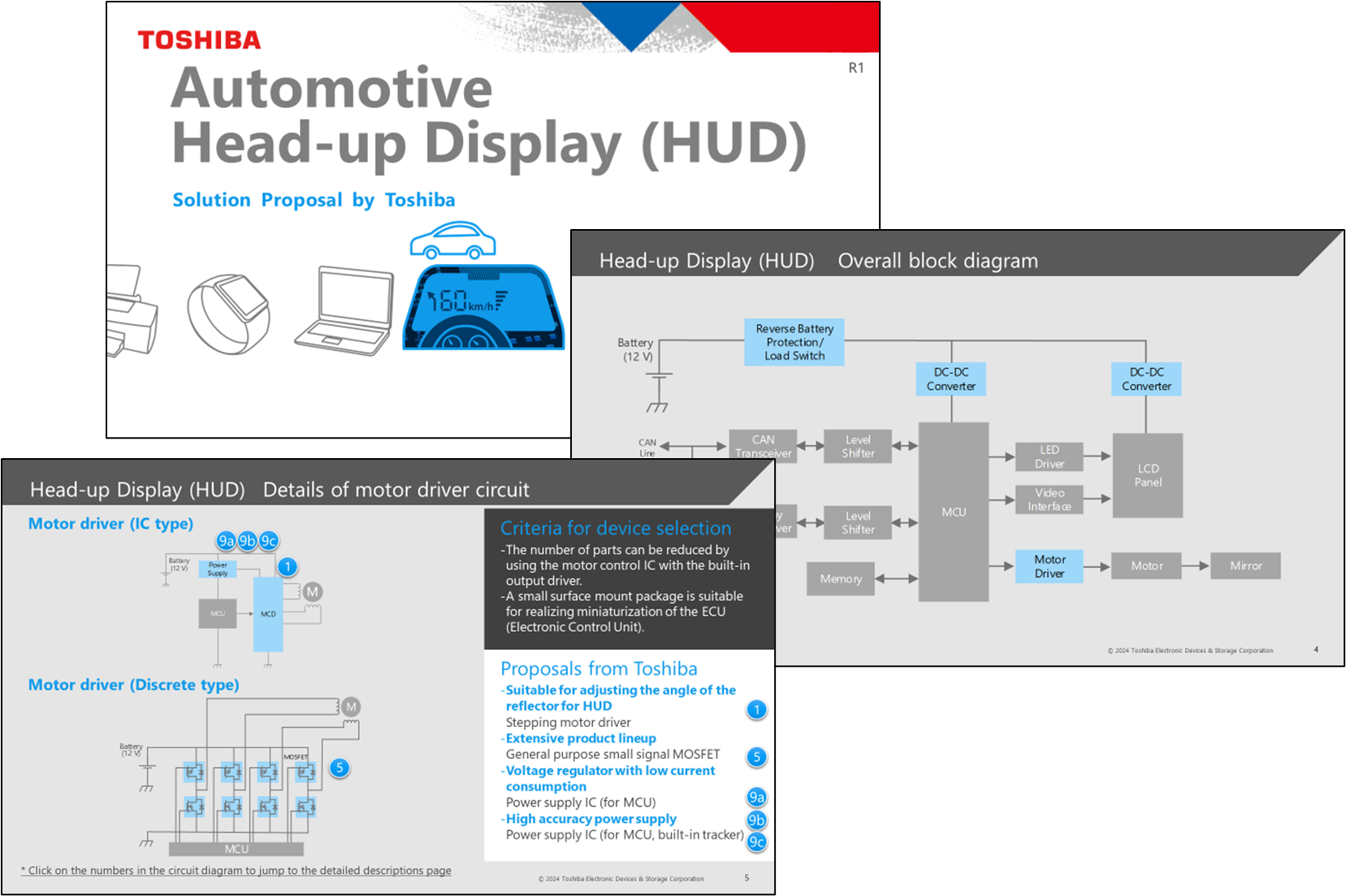

Overall block diagram

Head-up Display (HUD)

Click the area you want to check the details in the overall block diagram. Show links to our proposed sub-block diagram.

DC-DC converter circuit

DC-DC converter (non-isolated boost type)

Example of non-isolated boost DC-DC converters

DC-DC converter (non-isolated buck type)

Example of non-isolated step-down DC-DC converter

Motor driver

Motor driver (Discrete type)

Example of motor drive circuit using MOSFETs

Motor driver (IC type)

Example of motor drive circuit using motor driver IC

Power supply ON/OFF control and reverse connection protection circuit

Power supply ON/OFF control and reverse connection protection circuit (N-ch type)

Example of ON/OFF control and reverse connection protecting circuit using N-ch MOSFET for 12 V power lines

Power supply ON/OFF control and reverse connection protection circuit (P-ch type)

Example of ON/OFF control and reverse connection protecting circuits using P-ch MOSFET for 12 V power lines

Sub block diagram

DC-DC converter circuit

DC-DC converter (non-isolated boost type)

Example of non-isolated boost DC-DC converters

U-MOS Series 40 V N-ch MOSFET

U-MOS Series 40 V N-ch MOSFET

Part Number	XPN3R804NC	TK1R4S04PB	XPHR7904PS	TPWR7904PB	XPJR6604PB	XPQR3004PB
Toshiba Package Name	TSON Advance(WF)	DPAK+	SOP Advance(WF)	DSOP Advance(WF)L	S-TOGL	L-TOGL
V_DSS (Max) [V]	40	40	40	40	40	40
I_D (Max) [A]	40	120	150	150	200	400
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.0038	0.00135	0.00079	0.00079	0.00066	0.00030
Polarity	N-ch	N-ch	N-ch	N-ch	N-ch	N-ch

Search for lineup

DC-DC converter (non-isolated buck type)

Example of non-isolated step-down DC-DC converter

U-MOS Series 40 V N-ch MOSFET

U-MOS Series 40 V N-ch MOSFET

Part Number	XPN3R804NC	TK1R4S04PB	XPHR7904PS	TPWR7904PB	XPJR6604PB	XPQR3004PB
Toshiba Package Name	TSON Advance(WF)	DPAK+	SOP Advance(WF)	DSOP Advance(WF)L	S-TOGL	L-TOGL
V_DSS (Max) [V]	40	40	40	40	40	40
I_D (Max) [A]	40	120	150	150	200	400
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.0038	0.00135	0.00079	0.00079	0.00066	0.00030
Polarity	N-ch	N-ch	N-ch	N-ch	N-ch	N-ch

Search for lineup

Motor driver

Motor driver (Discrete type)

Example of motor drive circuit using MOSFETs

General purpose small signal MOSFET

General purpose small signal MOSFET

Part Number	SSM3K7002KF	SSM3J168F	SSM3J66MFV
Toshiba Package Name	SOT-346 (S-Mini)	SOT-346 (S-Mini)	SOT-723 (VESM)
V_DSS (Max) [V]	60	-60	-20
I_D (Max) [A]	0.4	-0.4	-0.8
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 4.5 [V]	1.75	1.9	0.39
Polarity	N-ch	P-ch	P-ch

Search for lineup

Motor driver (IC type)

Example of motor drive circuit using motor driver IC

Stepping motor driver
Power supply IC (for MCU)
Power supply IC (for MCU, built-in tracker)

Stepping motor driver

Part Number	TB9120AFTG
Toshiba Package Name	P-VQFN28-0606-0.65
Product Category	Stepping motor driver for automobile

Search for lineup

Power supply IC (for MCU)

Part Number	TB9005FNG
Toshiba Package Name	SSOP20
Product Category	Automobile CPU regulator, built-in watchdog timer

Search for lineup

Power supply IC (for MCU, built-in tracker)

Part Number	TB9044AFNG	TB9045FNG-110	TB9045FNG-120	TB9045FNG-125	TB9045FNG-150
Toshiba Package Name	HTSSOP48-P-300-0.50	HTSSOP48-P-300-0.50	HTSSOP48-P-300-0.50	HTSSOP48-P-300-0.50	HTSSOP48-P-300-0.50
Product Category	Automobile CPU regulator, built-in watchdog timer	Automobile CPU regulator, built-in watchdog timer	Automobile CPU regulator, built-in watchdog timer	Automobile CPU regulator, built-in watchdog timer	Automobile CPU regulator, built-in watchdog timer

Search for lineup

Power supply ON/OFF control and reverse connection protection circuit

Power supply ON/OFF control and reverse connection protection circuit (N-ch type)

Example of ON/OFF control and reverse connection protecting circuit using N-ch MOSFET for 12 V power lines

U-MOS Series 40 V N-ch MOSFET
Gate driver (for switch)
General purpose small signal MOSFET
General purpose small signal bipolar transistor
Small signal bias resistor built-in transistor (BRT)
TVS diode (for CAN communication)
Power supply IC (for MCU)
Power supply IC (for MCU, built-in tracker)

U-MOS Series 40 V N-ch MOSFET

Part Number	XPN3R804NC	TK1R4S04PB	XPHR7904PS	TPWR7904PB	XPJR6604PB	XPQR3004PB
Toshiba Package Name	TSON Advance(WF)	DPAK+	SOP Advance(WF)	DSOP Advance(WF)L	S-TOGL	L-TOGL
V_DSS (Max) [V]	40	40	40	40	40	40
I_D (Max) [A]	40	120	150	150	200	400
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.0038	0.00135	0.00079	0.00079	0.00066	0.00030
Polarity	N-ch	N-ch	N-ch	N-ch	N-ch	N-ch

Search for lineup

Gate driver (for switch)

Part Number	TPD7104AF	TPD7106F	TPD7107F
Toshiba Package name	PS-8	SSOP16	WSON10A
V_BB (Max) [V]
V_CC (Max) [V]
I_O (Max) [A]	+5mA/ Internally Limited		Internally Limited /-5m

Search for lineup

General purpose small signal MOSFET

Part Number	SSM3K7002KF	SSM3J168F	SSM3J66MFV
Toshiba Package Name	SOT-346 (S-Mini)	SOT-346 (S-Mini)	SOT-723 (VESM)
V_DSS (Max) [V]	60	-60	-20
I_D (Max) [A]	0.4	-0.4	-0.8
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 4.5 [V]	1.75	1.9	0.39
Polarity	N-ch	P-ch	P-ch

Search for lineup

General purpose small signal bipolar transistor

Part Number	2SC4738	2SA1832	2SC4116	2SA1586	2SC2712	2SA1162
Toshiba Package Name	SOT-416 (SSM)	SOT-416 (SSM)	SOT-323 (USM)	SOT-323 (USM)	SOT-346 (S-Mini)	SOT-346 (S-Mini)
V_CEO (Max) [V]	50	-50	50	-50	50	-50
I_C (Max) [A]	0.15	-0.15	0.15	-0.15	0.15	-0.15
Polarity	NPN	PNP	NPN	PNP	NPN	PNP

Search for lineup

Small signal bias resistor built-in transistor (BRT)

Part Number	RN1907FE	RN2907FE	RN1901	RN2901
Toshiba Package Name	SOT-563 (ES6)	SOT-563 (ES6)	SOT-363 (US6)	SOT-363 (US6)
V_CEO (Q1) (Max) [V]	50	-50	50	-50
V_CEO (Q2) (Max) [V]	50	-50	50	-50
I_C (Q1) (Max) [A]	0.1	-0.1	0.1	-0.1
I_C (Q2) (Max) [A]	0.1	-0.1	0.1	-0.1
Polarity (Q1)	NPN	PNP	NPN	PNP
Polarity (Q2)	NPN	PNP	NPN	PNP

Search for lineup

TVS diode (for CAN communication)

Part Number	DF3D18FU	DF3D29FU	DF3D36FU
Toshiba Package Name	SOT-323 (USM)	SOT-323 (USM)	SOT-323 (USM)
V_ESD (Max) [kV]	+/-30	+/-25	+/-20
I_R (Max) [µA]	0.1	0.1	0.1
R_dyn (Typ.) [Ω]	0.8	1.1	1.5
C_T (Typ.) [pF] @ V_R = 0 [V], f = 1 [MHz]	9	9	6.5

Search for lineup

Power supply IC (for MCU)

Part Number	TB9005FNG
Toshiba Package Name	SSOP20
Product Category	Automobile CPU regulator, built-in watchdog timer

Search for lineup

Power supply IC (for MCU, built-in tracker)

Part Number	TB9044AFNG	TB9045FNG-110	TB9045FNG-120	TB9045FNG-125	TB9045FNG-150
Toshiba Package Name	HTSSOP48-P-300-0.50	HTSSOP48-P-300-0.50	HTSSOP48-P-300-0.50	HTSSOP48-P-300-0.50	HTSSOP48-P-300-0.50
Product Category	Automobile CPU regulator, built-in watchdog timer	Automobile CPU regulator, built-in watchdog timer	Automobile CPU regulator, built-in watchdog timer	Automobile CPU regulator, built-in watchdog timer	Automobile CPU regulator, built-in watchdog timer

Search for lineup

Power supply ON/OFF control and reverse connection protection circuit (P-ch type)

Example of ON/OFF control and reverse connection protecting circuits using P-ch MOSFET for 12 V power lines

U-MOS Series -40 V / -60 V P-ch MOSFET
General purpose small signal MOSFET
General purpose small signal bipolar transistor
Small signal bias resistor built-in transistor (BRT)
TVS diode (for CAN communication)
Power supply IC (for MCU)
Power supply IC (for MCU, built-in tracker)

U-MOS Series -40 V / -60 V P-ch MOSFET

Part Number	XPN9R614MC	TJ90S04M3L	TJ60S06M3L	XPH3R114MC	XPH8R316MC
Toshiba Package Name	TSON Advance(WF)	DPAK+	DPAK+	SOP Advance(WF)	SOP Advance(WF)
V_DSS (Max) [V]	-40	-40	-60	-40	-60
I_D (Max) [A]	-40	-90	-60	-100	-90
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.0096	0.0043	0.0112	0.0031	0.0083
Polarity	P-ch	P-ch	P-ch	P-ch	P-ch

Search for lineup

General purpose small signal MOSFET

Part Number	SSM3K7002KF	SSM3J168F	SSM3J66MFV
Toshiba Package Name	SOT-346 (S-Mini)	SOT-346 (S-Mini)	SOT-723 (VESM)
V_DSS (Max) [V]	60	-60	-20
I_D (Max) [A]	0.4	-0.4	-0.8
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 4.5 [V]	1.75	1.9	0.39
Polarity	N-ch	P-ch	P-ch

Search for lineup

General purpose small signal bipolar transistor

Part Number	2SC4738	2SA1832	2SC4116	2SA1586	2SC2712	2SA1162
Toshiba Package Name	SOT-416 (SSM)	SOT-416 (SSM)	SOT-323 (USM)	SOT-323 (USM)	SOT-346 (S-Mini)	SOT-346 (S-Mini)
V_CEO (Max) [V]	50	-50	50	-50	50	-50
I_C (Max) [A]	0.15	-0.15	0.15	-0.15	0.15	-0.15
Polarity	NPN	PNP	NPN	PNP	NPN	PNP

Search for lineup

Small signal bias resistor built-in transistor (BRT)

Part Number	RN1907FE	RN2907FE	RN1901	RN2901
Toshiba Package Name	SOT-563 (ES6)	SOT-563 (ES6)	SOT-363 (US6)	SOT-363 (US6)
V_CEO (Q1) (Max) [V]	50	-50	50	-50
V_CEO (Q2) (Max) [V]	50	-50	50	-50
I_C (Q1) (Max) [A]	0.1	-0.1	0.1	-0.1
I_C (Q2) (Max) [A]	0.1	-0.1	0.1	-0.1
Polarity (Q1)	NPN	PNP	NPN	PNP
Polarity (Q2)	NPN	PNP	NPN	PNP

Search for lineup

TVS diode (for CAN communication)

Part Number	DF3D18FU	DF3D29FU	DF3D36FU
Toshiba Package Name	SOT-323 (USM)	SOT-323 (USM)	SOT-323 (USM)
V_ESD (Max) [kV]	+/-30	+/-25	+/-20
I_R (Max) [µA]	0.1	0.1	0.1
R_dyn (Typ.) [Ω]	0.8	1.1	1.5
C_T (Typ.) [pF] @ V_R = 0 [V], f = 1 [MHz]	9	9	6.5

Search for lineup

Power supply IC (for MCU)

Part Number	TB9005FNG
Toshiba Package Name	SSOP20
Product Category	Automobile CPU regulator, built-in watchdog timer

Search for lineup

Power supply IC (for MCU, built-in tracker)

Part Number	TB9044AFNG	TB9045FNG-110	TB9045FNG-120	TB9045FNG-125	TB9045FNG-150
Toshiba Package Name	HTSSOP48-P-300-0.50	HTSSOP48-P-300-0.50	HTSSOP48-P-300-0.50	HTSSOP48-P-300-0.50	HTSSOP48-P-300-0.50
Product Category	Automobile CPU regulator, built-in watchdog timer	Automobile CPU regulator, built-in watchdog timer	Automobile CPU regulator, built-in watchdog timer	Automobile CPU regulator, built-in watchdog timer	Automobile CPU regulator, built-in watchdog timer

Search for lineup
