DF2B29FU

ESD protection diode (bi-directional type)

Data sheet

DF2B29FU Data sheet/Japanese[Jun,2021]PDF: 412KB

Data sheet

DF2B29FU Data sheet/English[Jun,2021]PDF: 300KB

Simulation Model

PSpice Model[Jun,2017]lib: 1KB

Simulation Model

LTspice Model[Mar,2019]ZIP: 7KB

Reliability Information

Reliability Data[Sep,2024]PDF: 274KB

Environment Information

Certificate Regarding EU RoHS(2011/65/EU)Controlled Substances[Dec,2024]PDF: 85KB

Environment Information

Certificate on Content of SVHC of REACH[Dec,2024]PDF: 85KB

Application Note

Basics of ESD Protection (TVS)Diodes[May,2022]PDF: 1674KB

Application Note

Overvoltage protection device Zener diode and ESD protection diode[Apr,2022]PDF: 1161KB

Application Note

Basics of Diodes (Power Losses and Thermal Design)[Aug,2021]PDF: 649KB

Application Note

Basics of Diodes (Absolute Maximum Ratings and Electrical Characteristics)[Aug,2021]PDF: 846KB

Application Note

Basics of Diodes (Types and Overview of Diodes)[Aug,2021]PDF: 1557KB

Catalog

Selection Guide Small Signal 2024 Rev2.0[Jul,2024]PDF: 15538KB

Catalog

Mini catalog Introduction of Toshiba TVS Diodes(ESD Protection Diodes) Line-up[Jul,2024]PDF: 575KB

Catalog

Mini catalog Introduction of Toshiba Zener Diode for protection[Jul,2024]PDF: 541KB

Catalog

Mini catalog Introduction of Toshiba diode lineup for Industries[Apr,2024]PDF: 943KB

Catalog

Mini catalog Toshiba's circuit protection solutions and switch solutions[Aug,2023]PDF: 523KB

Data sheet

DF2B29FU Data sheet/Japanese[Jun,2021]PDF: 412KB

Data sheet

DF2B29FU Data sheet/English[Jun,2021]PDF: 300KB

Application Note

Basics of ESD Protection (TVS)Diodes[May,2022]PDF: 1674KB

Application Note

Overvoltage protection device Zener diode and ESD protection diode[Apr,2022]PDF: 1161KB

Application Note

Basics of Diodes (Power Losses and Thermal Design)[Aug,2021]PDF: 649KB

Application Note

Basics of Diodes (Absolute Maximum Ratings and Electrical Characteristics)[Aug,2021]PDF: 846KB

Application Note

Basics of Diodes (Types and Overview of Diodes)[Aug,2021]PDF: 1557KB

Simulation Model

PSpice Model[Jun,2017]lib: 1KB

Simulation Model

LTspice Model[Mar,2019]ZIP: 7KB

Reliability Information

Reliability Data[Sep,2024]PDF: 274KB

Environment Information

Certificate Regarding EU RoHS(2011/65/EU)Controlled Substances[Dec,2024]PDF: 85KB

Environment Information

Certificate on Content of SVHC of REACH[Dec,2024]PDF: 85KB

Catalog

Selection Guide Small Signal 2024 Rev2.0[Jul,2024]PDF: 15538KB

Catalog

Mini catalog Introduction of Toshiba TVS Diodes(ESD Protection Diodes) Line-up[Jul,2024]PDF: 575KB

Catalog

Mini catalog Introduction of Toshiba Zener Diode for protection[Jul,2024]PDF: 541KB

Catalog

Mini catalog Introduction of Toshiba diode lineup for Industries[Apr,2024]PDF: 943KB

Catalog

Mini catalog Toshiba's circuit protection solutions and switch solutions[Aug,2023]PDF: 523KB

Description

Internal Connection Single
Number of Circuits 1
Number of Protected Lines 1
Configuration Bidirectional

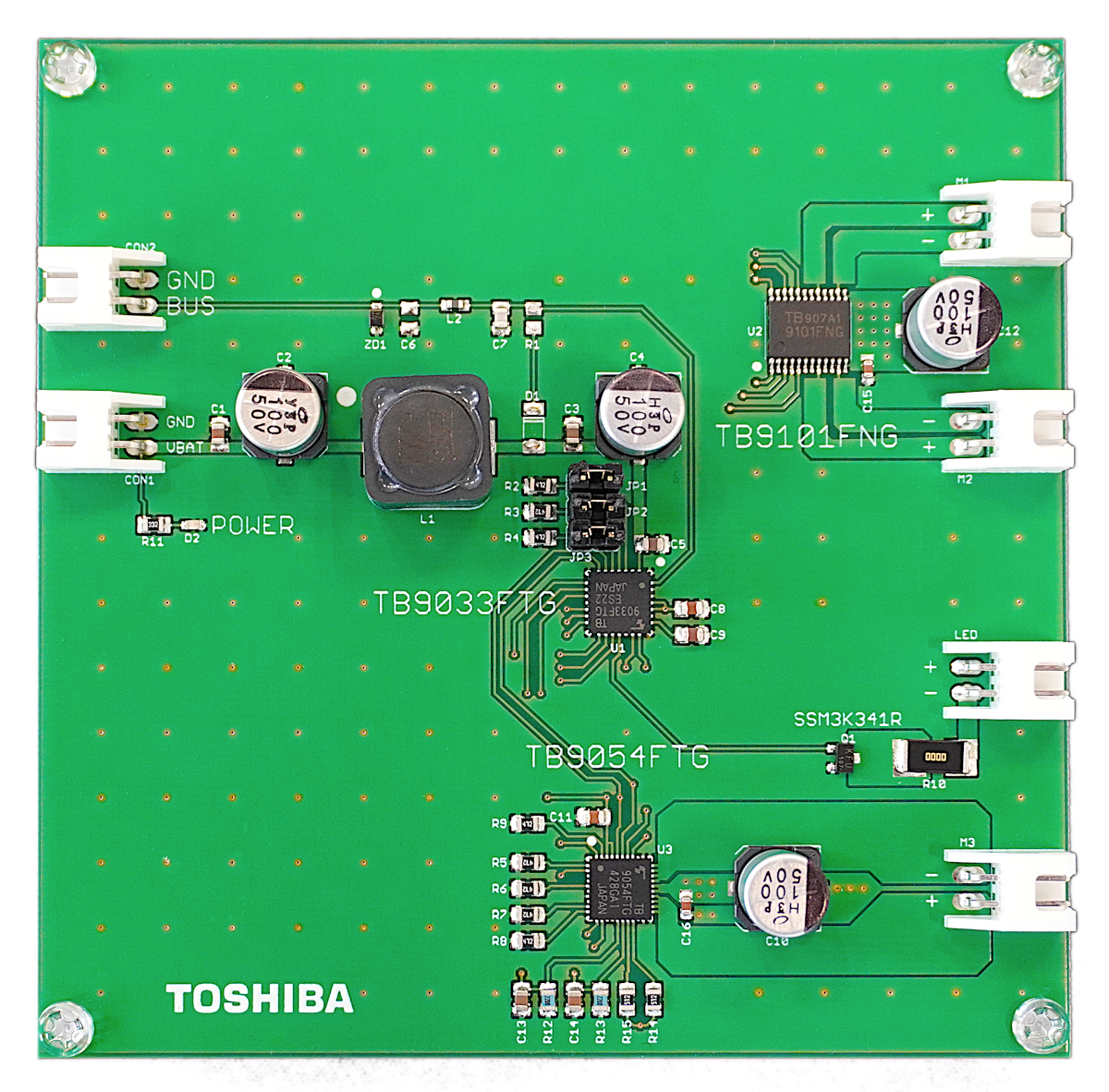

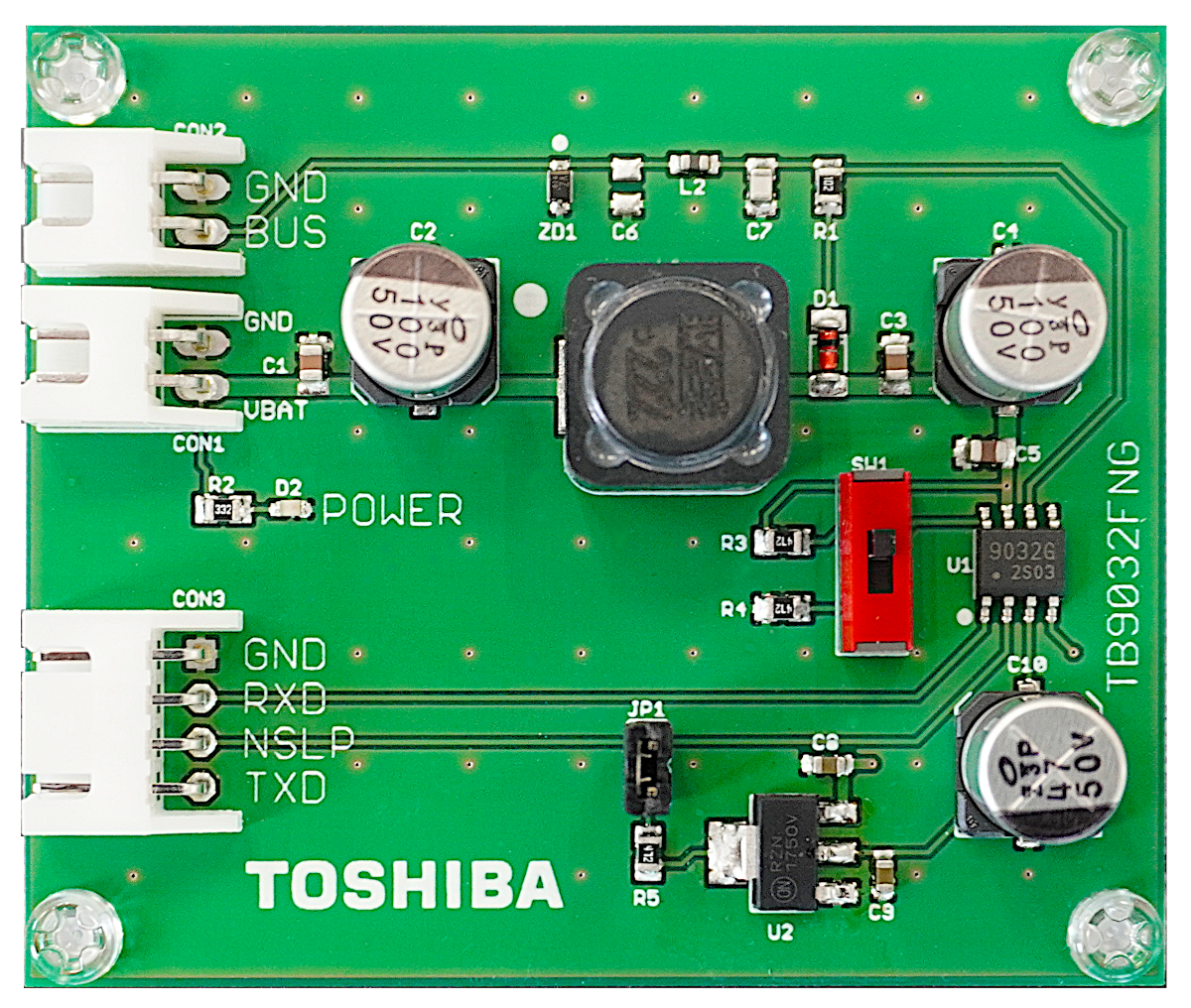

Application CAN/LIN Interface / Power supply
PPAP Capable(*)
AEC-Q101 Qualified(*)
RoHS Compatible Product(s) (#) Available

*: For detail information, please contact to our sales.

Package Information

package name (TOSHIBA) SOD-323 (USC)
Package Image USC
package code SOD-323
Pins 2
Mounting Surface Mount
Width×Length×Height
(mm)		 2.5×1.25×0.9
Package Dimensions View
Land pattern dimensions View
CAD data
(Symbol, Footprint and 3D model)		 Download from UltraLibrarian<sup>®</sup> in your desired CAD format (Note)

Download from UltraLibrarian® in your desired CAD format (Note)

 Please refer to the link destination to check the detailed size.

(Note)

Ultra Librarian® is a Registered trademark and CAD data library of EMA (EMA Design Automation, Inc.).

Absolute Maximum Ratings

Characteristics Symbol Rating Unit
Electrostatic discharge voltage(IEC61000-4-2) VESD +/-25 kV
Peak pulse current (IEC61000-4-5) IPP 3 A

Electrical Characteristics

Characteristics Symbol Condition Value Unit
Working peak reverse voltage (Max) VRWM - +/-24 V
Total Capacitance (Max) CT VR=0V
f=1MHz		 10 pF
Total Capacitance (Typ.) CT VR=0V
f=1MHz		 9 pF
Dynamic resistance (Typ.) Rdyn IPP=8A to 16A 1.1 Ω
Reverse Breakdown Voltage (Min) VBR IBR=1mA 26 V
Reverse Current (Max) IR VRWM=24V 0.1 μA
Clamp voltage (Based on IEC61000-4-5) (Typ.) VC IPP=1A 30 V
Purchase and Sample
Please contact one of Toshiba's official distributors or the nearest Toshiba sales office.
You can search for and purchase a small on-line sample by clicking on the following link.

Document

  • If the checkbox is invisible, the corresponding document cannot be downloaded in batch.

Jun,2017

Mar,2019

Sep,2024

Dec,2024

Dec,2024

(Note)

LTspice ® is a trademark and simulation software of ADI (Analog Devices, Inc.).

Orderable part number

Orderable part number
(example)		 MOQ(pcs) Reliability
Information		 RoHS AEC_Q100-Q101 Note
DF2B29FU,H3F 3000 Yes - General Use
DF2B29FU,H3XGF 3000 - Yes Yes (Note) Unintended Use (Note)
DF2B29FU,H3XHF 3000 - Yes Yes Automotive Use

(Note)：For more information, please contact our sales or use the inquiry form on our website.
