Automotive SmartMCD™
The SmartMCD™ series integrates an Arm®Cortex®based microcontroller and a motor driver, delivering high performance within a compact package. In addition, it supports communication interfaces such as LIN, offering new options for controlling automotive DC motors and BLDC motors.
What is SmartMCD™
The SmartMCD™ series is a product that integrates a microcontroller and motor driver along with flash memory, power supply circuitry, and communication interfaces.
SmartMCD™ Feature
Lineup
| Part Number | TB9M001FTG | TB9M003FG |
|---|---|---|
| Processor | ARM® Cortex®-M0 | ARM® Cortex®-M0 |
| Flash Memory Size | 192 KB + 16 KB | 64 KB |
| Driver | Relay Driver | Three‑Phase Bridge Driver |
| Communication Interface | LIN | PWM, LIN |
| Junction Temperature (Tj) | -40°C to 150°C | -40°C to 175°C |
| Reliability Grade | AEC‑Q100 | AEC‑Q100 |
| Functional Safety Level | ASIL‑A | QM |

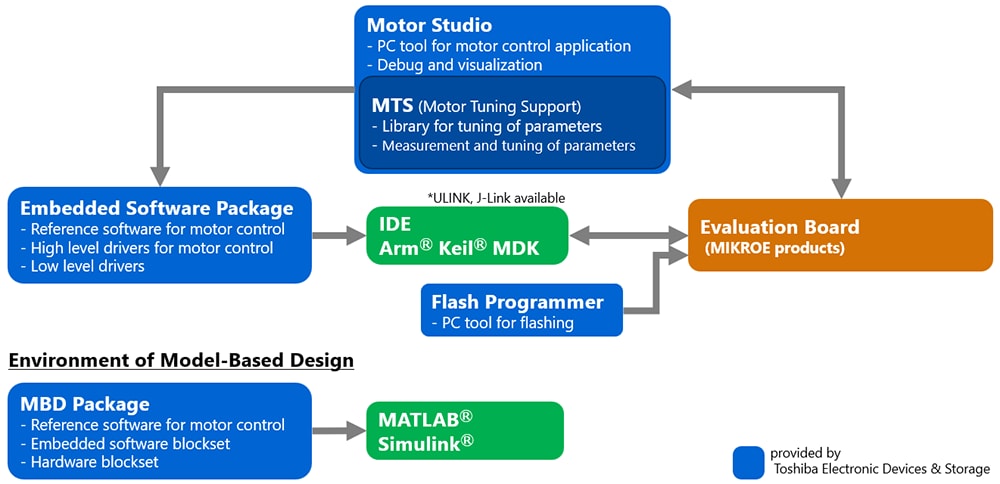

Software Development Environment
The development environment is composed of tools provided by our company as well as third-party vendors.
It includes an integrated development environment (IDE), a motor control PC tool (Motor Studio), a FLASH programmer, a RAM monitor, motor control reference software, low-level drivers, evaluation boards, and model-based design (MBD) models.
Motor Studio allows users to configure motor control parameters and perform real-time monitoring via a graphical user interface (GUI).
Download
Technical Articles
Technical Topics
Production Intoroduction Video
Reference Design
