TCR1HF50B

Low Dropout (LDO) Linear Voltage Regulator

  • Related Reference Design(3)

Data sheet

TCR1HF50B Data sheet/Japanese[Nov,2024]PDF: 2806KB

Data sheet

TCR1HF50B Data sheet/English[Nov,2024]PDF: 2554KB

Reliability Information

Reliability Data[Oct,2024]PDF: 245KB

Environment Information

Certificate Regarding EU RoHS(2011/65/EU)Controlled Substances[Dec,2024]PDF: 86KB

Environment Information

Certificate on Content of SVHC of REACH[Dec,2024]PDF: 86KB

Application Note

LDO Regulator Application to Power Supplies for High-Frequency Circuits[Apr,2022]PDF: 3288KB

Application Note

Basics of Low-Dropout (LDO) Regulator ICs[Mar,2021]PDF: 1296KB

Application Note

LDO Regulators Glossary[Mar,2021]PDF: 341KB

Application Note

Dual power supply LDO Regulators for Low Drop Out and Low Loss at low Voltage[Mar,2021]PDF: 790KB

Application Note

Concept of self-heating of LDOs and selection guide[Mar,2021]PDF: 739KB

Application Note

Improving the Load Transient Response of LDOs[Mar,2021]PDF: 1162KB

Application Note

Simple Guide to Improving Ripple Rejection Ratio of LDO Regulators[Mar,2021]PDF: 1249KB

Application Note

Mechanism of LDO Oscillation and Reducing the Susceptibility to Oscillation[Mar,2021]PDF: 1375KB

Application Note

LDO Regulator Application to Power Supply Circuits for Digital Cores of CMOS Image Sensors[Oct,2020]PDF: 2482KB

Application Note

LDO Regulator Application to Power Supply Circuits for MCUs[Oct,2020]PDF: 2575KB

Catalog

Mini catalog Introduction of Toshiba compact LDO regulators[Aug,2024]PDF: 612KB

Catalog

Selection Guide Small Signal 2024 Rev2.0[Jul,2024]PDF: 15538KB

Catalog

Mini catalog Toshiba's circuit protection solutions and switch solutions[Aug,2023]PDF: 523KB

Data sheet

TCR1HF50B Data sheet/Japanese[Nov,2024]PDF: 2806KB

Data sheet

TCR1HF50B Data sheet/English[Nov,2024]PDF: 2554KB

Application Note

LDO Regulator Application to Power Supplies for High-Frequency Circuits[Apr,2022]PDF: 3288KB

Application Note

Basics of Low-Dropout (LDO) Regulator ICs[Mar,2021]PDF: 1296KB

Application Note

LDO Regulators Glossary[Mar,2021]PDF: 341KB

Application Note

Dual power supply LDO Regulators for Low Drop Out and Low Loss at low Voltage[Mar,2021]PDF: 790KB

Application Note

Concept of self-heating of LDOs and selection guide[Mar,2021]PDF: 739KB

Application Note

Improving the Load Transient Response of LDOs[Mar,2021]PDF: 1162KB

Application Note

Simple Guide to Improving Ripple Rejection Ratio of LDO Regulators[Mar,2021]PDF: 1249KB

Application Note

Mechanism of LDO Oscillation and Reducing the Susceptibility to Oscillation[Mar,2021]PDF: 1375KB

Application Note

LDO Regulator Application to Power Supply Circuits for Digital Cores of CMOS Image Sensors[Oct,2020]PDF: 2482KB

Application Note

LDO Regulator Application to Power Supply Circuits for MCUs[Oct,2020]PDF: 2575KB

Reliability Information

Reliability Data[Oct,2024]PDF: 245KB

Environment Information

Certificate Regarding EU RoHS(2011/65/EU)Controlled Substances[Dec,2024]PDF: 86KB

Environment Information

Certificate on Content of SVHC of REACH[Dec,2024]PDF: 86KB

Catalog

Mini catalog Introduction of Toshiba compact LDO regulators[Aug,2024]PDF: 612KB

Catalog

Selection Guide Small Signal 2024 Rev2.0[Jul,2024]PDF: 15538KB

Catalog

Mini catalog Toshiba's circuit protection solutions and switch solutions[Aug,2023]PDF: 523KB

Description

Application Consumer equipment / Industrial power supply / Mobile equipment / Camera/Sensor power supply / General purpose power supply
Feature Wide range input voltage / Low dropout voltage / Low quiescent current / Fast load transient response
Output Type Fixed Output
Overcurrent protection Y
Thermal shutdown Y
Inrush current reduction Y
RoHS Compatible Product(s) (#) Available

Package Information

Toshiba Package Name SOT-25 (SMV)
Package Image SMV
JEITA SC-74A
Package Code SOT-25
Pins 5
Mounting Surface Mount
Width×Length×Height
(mm)		 2.9×2.8×1.1
Package Dimensions View
Land pattern dimensions View

 Please refer to the link destination to check the detailed size.

Absolute Maximum Ratings

Characteristics Symbol Rating Unit
Input Voltage VIN 40 V
Power Dissipation (mounted on glass-epoxy board(25.4mm×25.4mm)) PD 580 mW

Electrical Characteristics

Characteristics Symbol Condition Value Unit
Operating Output Current (Max) IOUT - 150 mA
Operating Input Voltage * VIN - 4 to 36 V
Output Voltage (Typ.) VOUT - 5.0 V
Output Voltage Lineup VOUT - 1.8 to 5.0 V
Quiescent Current (Typ.) * IB(ON) IOUT=0mA 1.0 μA
Stand-by Current (Typ.) * IB(OFF) - 0.27 μA
Dropout Voltage (Typ.) * VDO IOUT=0.15A 415 mV
Ripple Rejection Ratio (Typ.) * R.R. f=1kHz 60 dB
Output Noise Voltage (Typ.) * VNO - 100 μVrms
Operating Temperature Topr - -40 to 125 ℃
Output Capacitance COUT - ≥0.47 μF

 *: Representative value, Please refer to the datasheet for details.

Purchase and Sample
Please contact one of Toshiba's official distributors or the nearest Toshiba sales office.
You can search for and purchase a small on-line sample by clicking on the following link.

Document

  • If the checkbox is invisible, the corresponding document cannot be downloaded in batch.

Oct,2024

Dec,2024

Dec,2024

Orderable part number

Orderable part number
(example)		 MOQ(pcs) Reliability
Information		 RoHS Note
TCR1HF50B,LM 3000 Yes General Use

Reference Design

PCB photo example of Power multiplexer circuit
Power multiplexer circuit
In this reference design, a Power multiplexer circuit with 2 input and 1 output is implemented on a small PCB. MOSFET gate driver ICs, eFuse ICs, zener diodes and small package MOSFETs selected from Toshiba's diverse lineup are used create ideal diode like characteristics with BBM and MBB switching.
Details
PCB photo example of Power multiplexer circuit
Power Multiplexer Circuit Using Common-Drain MOSFET
This power multiplexer circuit with 2 inputs and 1 output is realized on a small board. A new power multiplexer circuit usign common-drain MOSFET has been added to the already developed power multiplexer circuit reference design. These reference circuits allow switching between BBM and MBB modes by combining optimal devices such as MOSFET gate driver ICs and zener diodes from our diverse product lineup.
Details

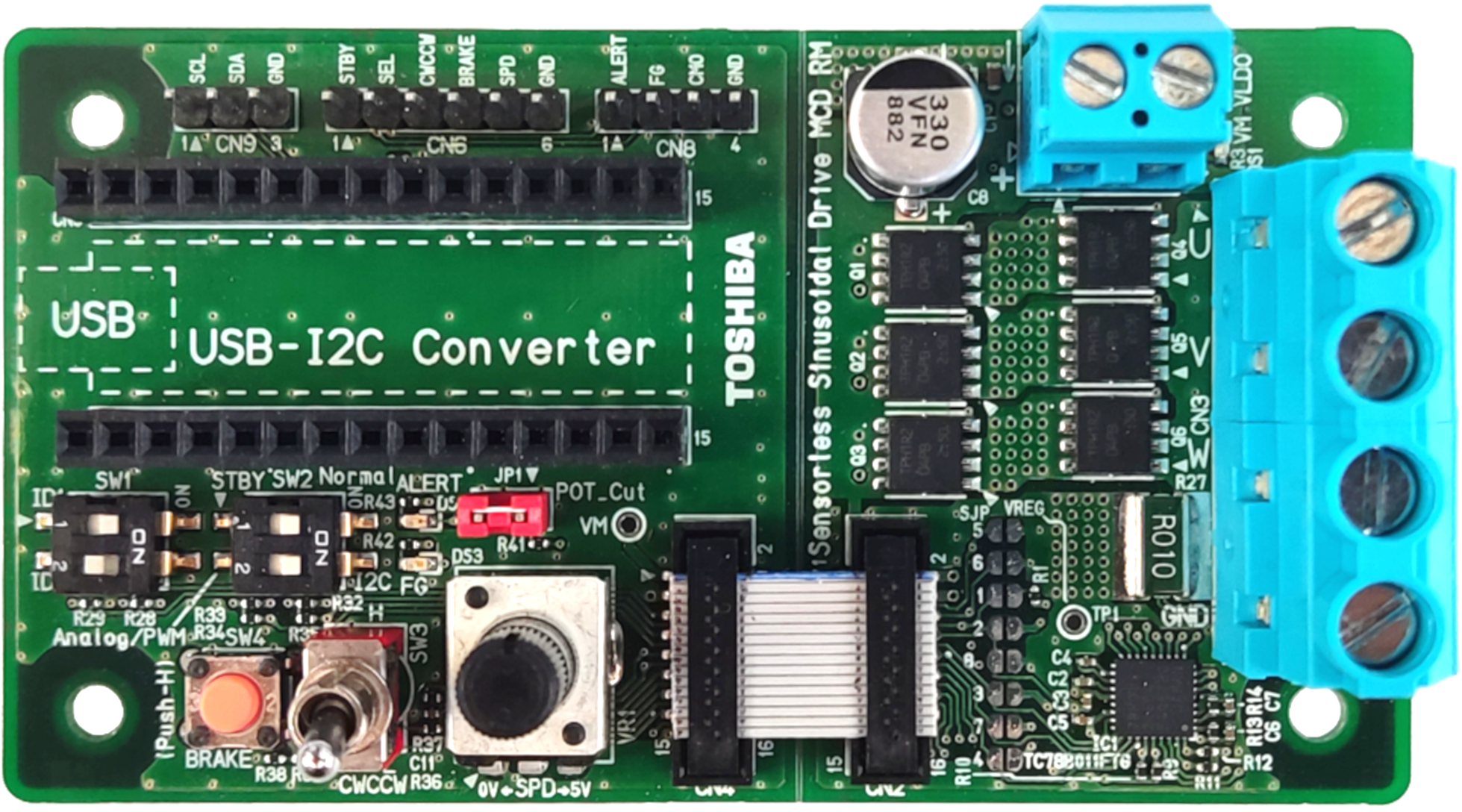

Sensorless Sinusoidal Brushless Motor Drive Circuit Using TC78B011FTG
