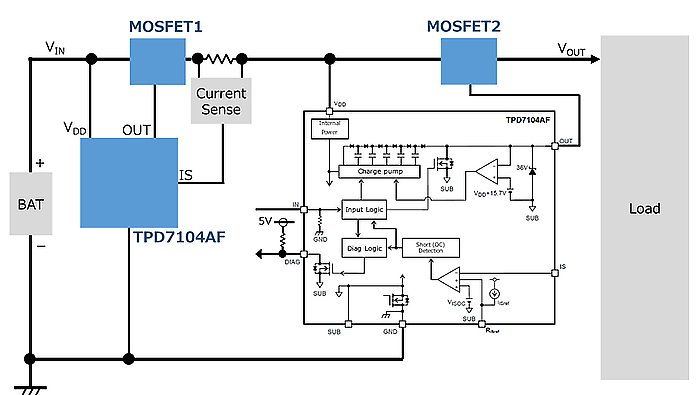

This reference design provides examples of application circuit and simulation for TPD7104AF which features short load protection, reverse power connection protection and others.
Design Documents contain the documents below.
Design Data contains the contents listed below.
|Part Number||Device Category||Portion Usage||Description|
|Intelligent power device (High side power-MOSFET driver with built-in charge pump)||2||Automotive Gate driver for High-side switch, PS-8|
|Power MOSFET (N-ch single 30V<VDSS≤60V)||2||N-ch MOSFET, 40 V, 250 A, 0.00074 Ω@10V, TO-220SM(W)|
