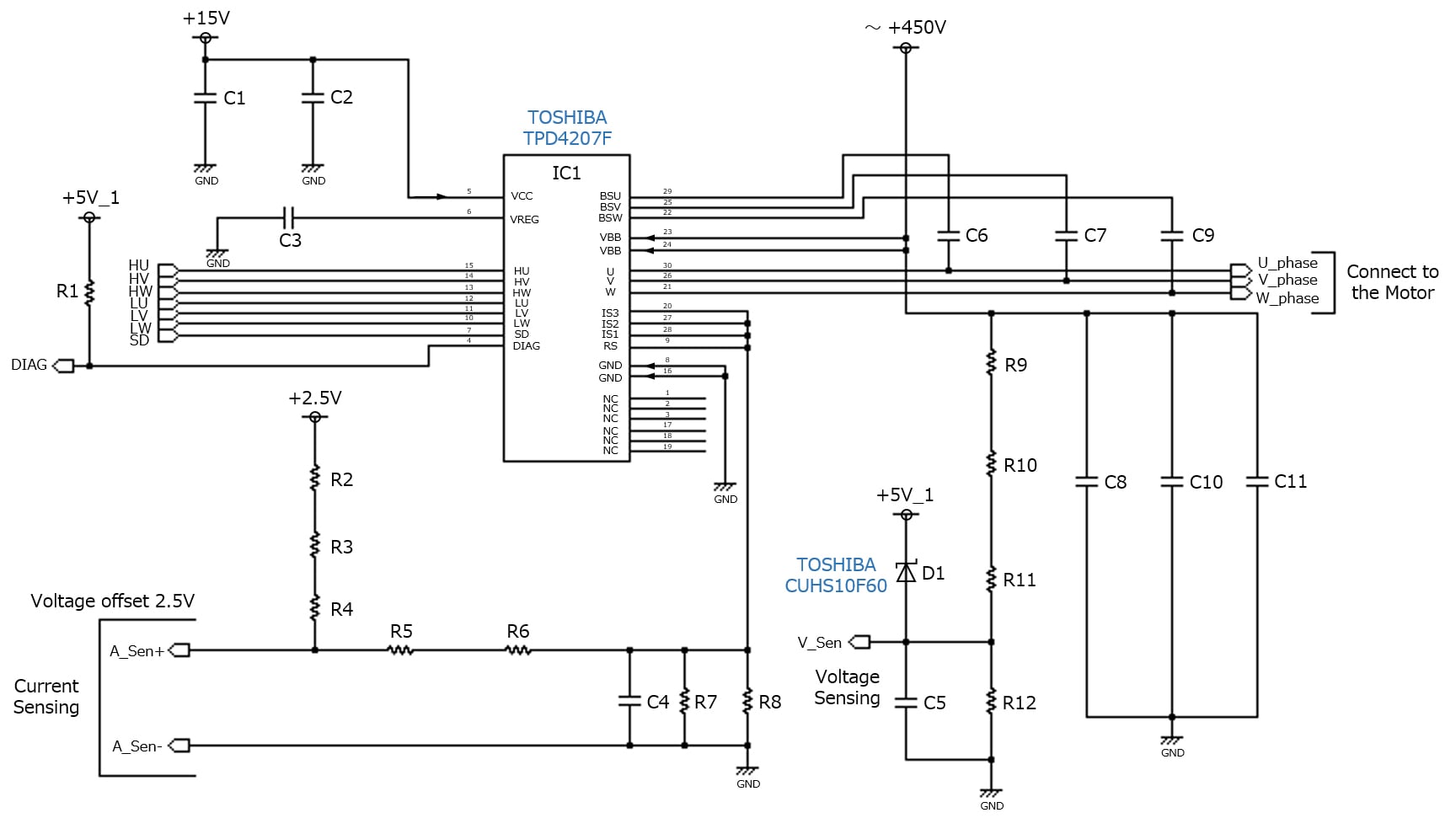

This reference design provides an example circuit of small compressor motor drive with combination of TPD4207F and TMPM4K0FSADUG, and design guide of peripheral circuit.
Design Documents contain the documents below.
Design Data contains the contents listed below.
Part Number | Device Category | Portion Usage | Description |
---|---|---|---|
Intelligent power device 600V (High voltage PWM DC brushless motor driver) | Motor drive・1 | 600 V/5.0 A 3-phase Brushless DC Motor Driver IC built-in Power Device, SSOP30 | |
TXZ4 | PWM control・1 | ||
Photocoupler (photo-IC output) | Communication・2 | Photocoupler (photo-IC output), High-speed, 10 Mbps, 3750 Vrms, 5pin SO6 |
