DC 300 V Input BLDC Motor Sensorless Control Circuit using TPD4204F

This reference design provides design guide, data and other contents of DC 300 V Input BLDC Motor Sensorless Control Circuit using Intelligent Power Device. It achieves vector control with the MCU designed for Motor control.

DC 300 V Input BLDC Motor Sensorless Control Circuit using TPD4204F

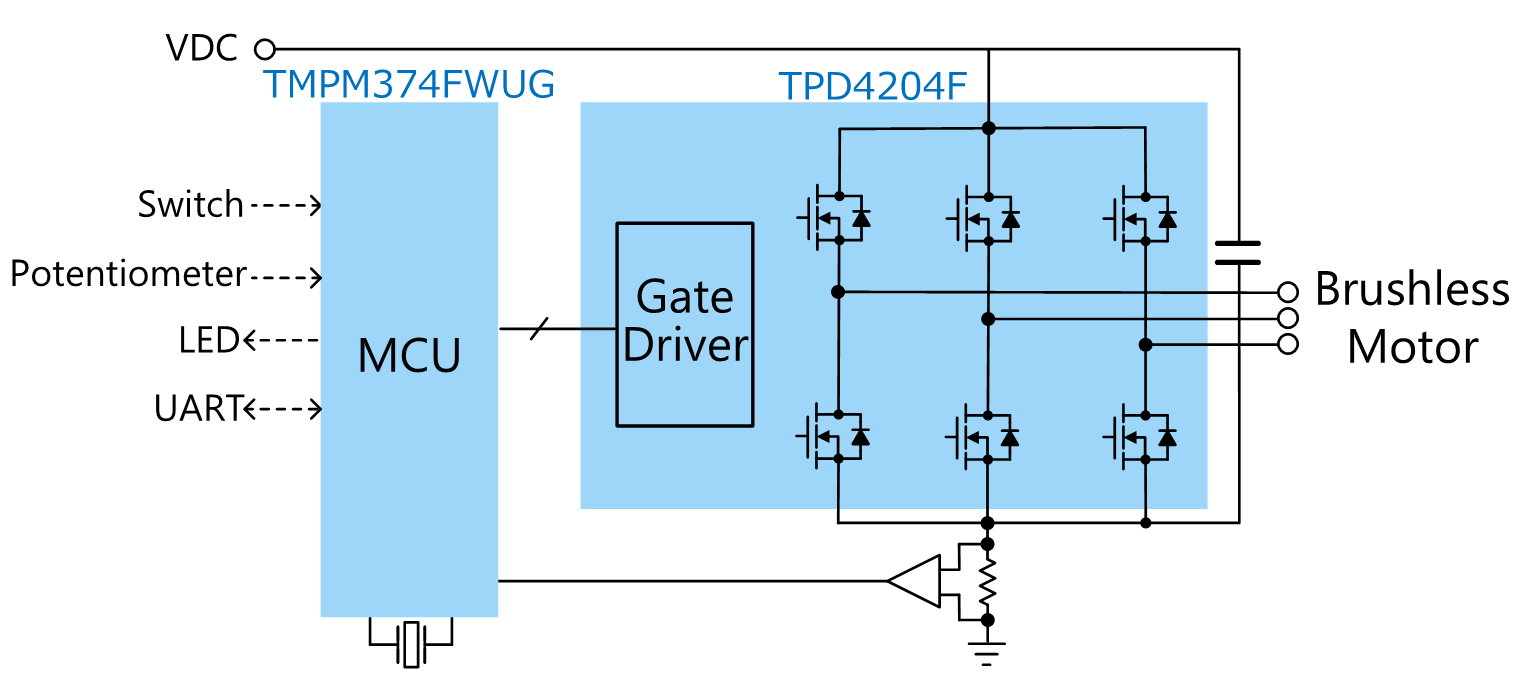

TMPM374FWUG TPD4204F

Click on components for more details

Features

  • Sensorless Vector Control, Supporting 3-shunt or 1-shunt Configuration
  • Outline Size : 130 mm × 85 mm × 53.4 mm
  • Uses optimum Intelligent Power IC and MCU for Motor control supporting vector control

Description

Motor Input Voltage DC 120 to 340 V
Control Input Voltage DC 15 V, DC 5 V
Max Motor Drive Current 2.5 A
Control Method Sensorless Vector Control

Design Documents

Materials for designers, such as an overview of circuit operation and explanations of design considerations. Please click on each tab to view the contents.

Design Data

Provides circuit data that can be loaded into EDA tools, PCB layout data, and data used in PCB manufacturing. Available in formats from multiple tool vendors. You can freely edit it with your preferred tool.

Used Toshiba Items

Part Number Device Category Portion Usage Description
Intelligent power device 600V (High voltage PWM DC brushless motor driver) Motor Drive·1 600 V/2.5 A 3-phase Brushless DC Motor Driver IC built-in Power Device, SSOP30
TX03 Motor Control·1

Related Documents

We provide materials useful for designing and considering similar circuits, such as application notes for installed products. Please click on each tab to view the contents.

Applications

Air Cleaner
Such as high efficiency, low power consumption and miniaturization are important in designing air cleaner. Toshiba provides information on a wide range of semiconductor products suitable for power supply unit, motor driving units, sensor signal input unit, etc., along with circuit configuration examples.
