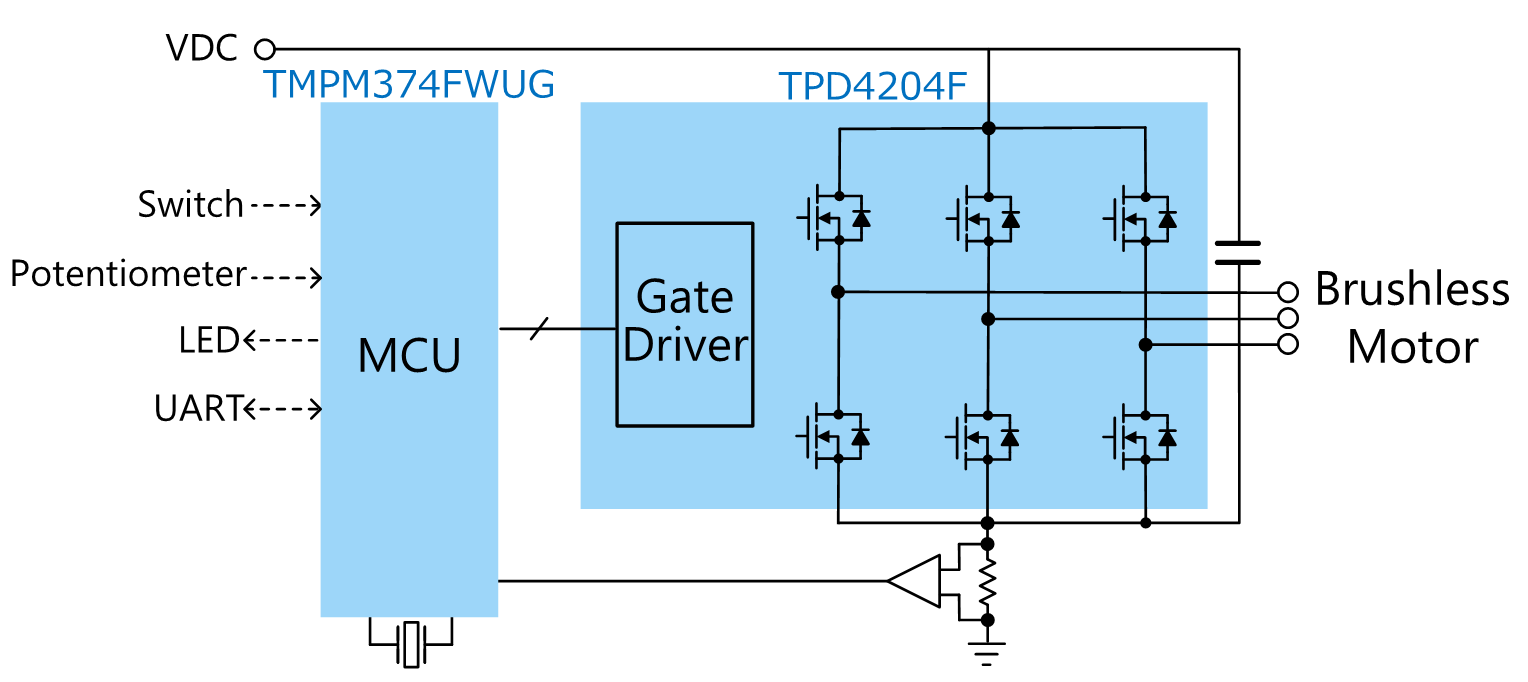

該參考設計提供了使用智能功率器件的直流 300 V 輸入 BLDC 馬達無傳感器控制電路的設計指南、數據和其他內容。它通過專為電機控製而設計的MCU實現向量控制。
Click on components for more details
馬達輸入電壓 | 直流 120 至 340 伏 |
---|---|
控制輸入電壓 | 直流 15 伏,直流 5 伏 |
最大馬達驅動電流 | 2.5 安培 |
控制方式 | 無傳感器矢量控制 |
設計・文件 包含以下文件。
設計數據包含以下內容。
器件型號 | 器件目錄 | 使用部位・數量 | 說明 |
---|---|---|---|
微控制器 | 馬達驅動·1 | ||
智能功率IC | 馬達驅動·1 | 600 V/2.5 A 3-phase Brushless DC Motor Driver IC built-in Power Device, SSOP30 |
