SOP Advance(E)

In developing your designs, please ensure the datasheet.

SOP Advance(E)package
Toshiba Code 2-6L1A
Mounting Surface Mount
Pins 8
Width×Length×Height
(mm)		 4.9×6.1×1.0
3D Model STEP

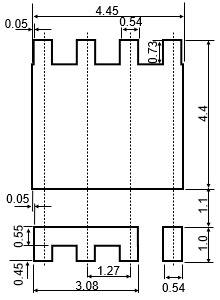

Package Dimensions (mm)
Packing Method Embossed Tape
Packing Name TE12L
Minimum Quantity 5000 pcs/Reel
Tape Width (mm) 12

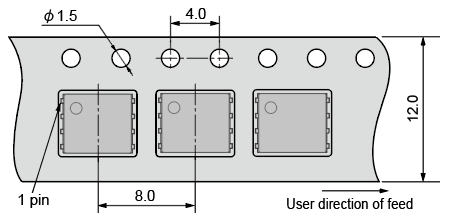

Tape Dimensions (mm)
/

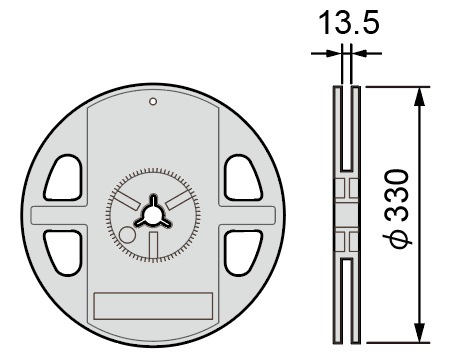

Reel Dimensions (mm)

Download package data for CAD tool, such as 3D model data in STEP format and reference land pattern data designed following JEITA ET-7501 Level3.

  • 3D model(.stp)： 3D model Data in STEP Format
