This reference design provides specification, block diagram and PCB layout data of DC24V/200W AC-DC power supply suitable for consumer applications and embedded power supply.
Input voltage | AC 90 to 264V |
---|---|
Output voltage | DC 24V |
Output power | 200W |
Circuit topology | PFC, LLC + Synchronous Rectification |

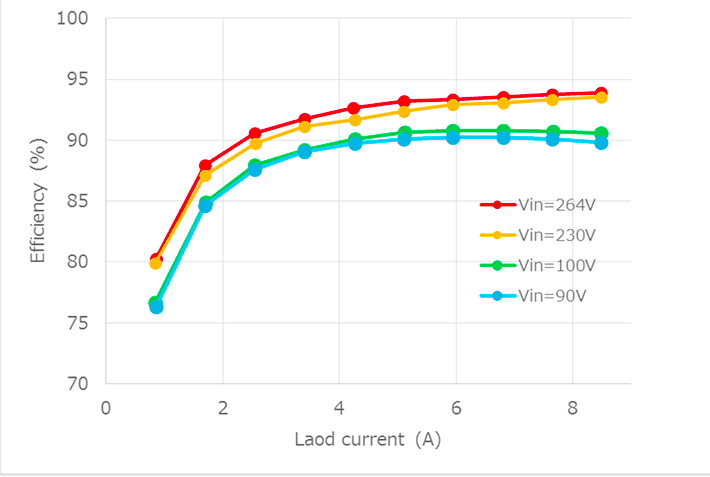

Design Documents contain the documents below.
Design Data contains the contents listed below.
Part Number | Device Category | Portion Usage | Description |
---|---|---|---|
Power MOSFET (N-ch 500V<VDSS≤700V) | PFC・1,Primary side・2 | N-ch MOSFET, 650 V, 0.29 Ω@10V, TO-220SIS, DTMOSⅤ | |
Power MOSFET (N-ch single 30V<VDSS≤60V) | Secondary side・2 | N-ch MOSFET, 60 V, 0.0095 Ω@10V, SOP Advance, U-MOSⅨ-H | |
Photocoupler (phototransistor output) | Communication between primary side and secondary side・2 | Photocoupler (phototransistor output), DC input, 5000 Vrms, DIP4(TLP785F) |
