TLP785F

This page partially uses JavaScript. This page may not operate normally when these functions are not supported by your browser or the setting is disabled.
Please look for the information you need from the following pages:

Site Map

Asia-Pacific - English

Asia-Pacific - 简体中文

Asia-Pacific - 繁體中文

Asia-Pacific - 한국어

Asia-Pacific - 日本語

Americas - English

Europe (EMEA) - English

Feature	Creepage and clearance 8mm
Application Scope	Communication interface / Power supply / AC main voltage detection
Function	General-purpose
Number of Circuits	1
Input type	DC
RoHS Compatible Product(s) (#)	Available
Safety Standard	Approved　:　UL 1577 / cUL (CSA Component Acceptance Service No. 5A) / EN 60747-5-5 (VDE) / EN IEC 62368-1 (VDE) / GB 4943.1-2022 (CQC) Download Online Certification of Safety Standard(UL 1577) Download Online Certification of Safety Standard(cUL)

Package Information

Toshiba Package Name	DIP4(TLP785F)

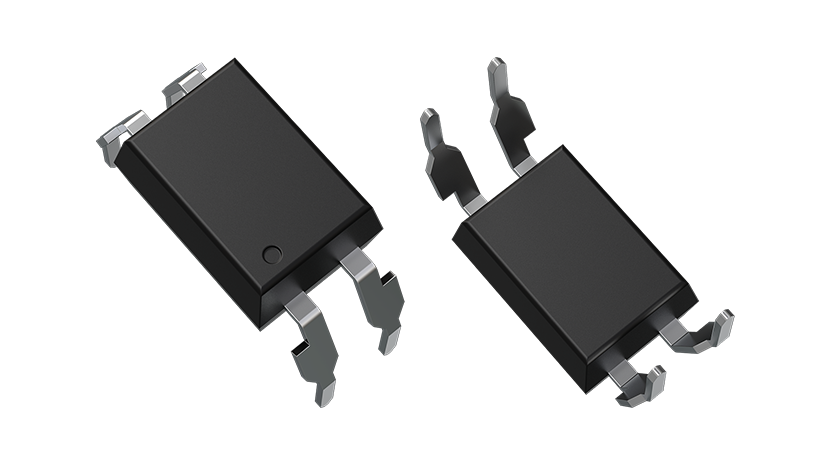

Package Image
Pins	4
Mounting	Through Hole
Width×Length×Height (mm)	4.6×10.16×3.5
Package Dimensions	View
CAD data (Symbol, Footprint and 3D model)	Download from UltraLibrarian^® in your desired CAD format (Note)

Please refer to the link destination to check the detailed size.

(Note) Ultra Librarian^® is a Registered trademark and CAD data library of EMA (EMA Design Automation, Inc.).

Absolute Maximum Ratings

Characteristics	Symbol	Rating	Unit
Collector-emitter voltage	V_CEO	80	V
Collector Current	I_C	0.05	A
Forward Current	I_F	0.06	A
Operating Temperature	T_opr	-55 to 110	℃

Electrical Characteristics

Characteristics	Symbol	Condition	Value	Unit
Collector Emitter Saturation Voltage (Max)	V_CE(sat)	-	0.4	V
Isolation voltage BVs @1minute (Min)	BV_S	t=60sec	5000	Vrms
Current Transfer Ratio (Max)	CTR	I_F=5mA V_CE=5V rank=-	600	%
Current Transfer Ratio (Min)	CTR	I_F=5mA V_CE=5V rank=-	50	%

Document

select all
If the checkbox is invisible, the corresponding document cannot be downloaded in batch.

Name
Date

Data sheet TLP785F Data sheet/Japanese

PDF: 898KB

Mar,2019

Data sheet TLP785F Data sheet/English

PDF: 718KB

Mar,2019

Simulation Model PSpice Model ZIP

ZIP: 4KB

Jul,2018

Reliability Information Reliability Data

PDF: 200KB

Sep,2024

UPDATED Environment Information Certificate Regarding EU RoHS(2011/65/EU)Controlled Substances

PDF: 85KB

Nov,2024

UPDATED Environment Information Certificate on Content of SVHC of REACH

PDF: 85KB

Nov,2024

Application Note Safety standards for photocouplers

PDF: 753KB

Mar,2021

Application Note Glossary of Photocoupler and Photorelay Terms

PDF: 509KB

Mar,2018

Catalog Selection Guide Isolators and Solid State Relays 2024Rev2.0

PDF: 14710KB

Aug,2024

Catalog Photocouplers and Photorelays

PDF: 2619KB

Apr,2020

Orderable part number

Orderable part number (example)	MOQ(pcs)	RoHS	CTR_RANK	VDE
TLP785F(BL-TP7,F	4000	Yes	BL (200%-600%)	-
TLP785F(BLL-T7,F	4000	Yes	BLL(200%-400%)	-
TLP785F(D4-TP7,F	4000	Yes	-	Yes
TLP785F(D4B-T7,F	4000	Yes	BLL(200%-400%)	Yes
TLP785F(D4BLT7,F	4000	Yes	BL (200%-600%)	Yes
TLP785F(D4GBT7,F	4000	Yes	GB(100%-600%)	Yes
TLP785F(D4GHT7,F	4000	Yes	GRH(150%-300%)	Yes
TLP785F(D4GLT7,F	4000	Yes	GRL(100%-200%)	Yes
TLP785F(D4GRT7,F	4000	Yes	GR(100%-300%)	Yes
TLP785F(D4Y-T7,F	4000	Yes	Y(50%-150%)	Yes
TLP785F(D4YHT7,F	4000	Yes	YH(75%-150%)	Yes
TLP785F(GB-TP7,F	4000	Yes	GB(100%-600%)	-
TLP785F(GR-TP7,F	4000	Yes	GR(100%-300%)	-
TLP785F(GRH-T7,F	4000	Yes	GRH(150%-300%)	-
TLP785F(GRL-T7,F	4000	Yes	GRL(100%-200%)	-
TLP785F(TP7,F	4000	Yes	-	-
TLP785F(Y-TP7,F	4000	Yes	Y(50%-150%)	-
TLP785F(YH-TP7,F	4000	Yes	YH(75%-150%)	-
