Lineup Expansion of Automotive 40V N‑channel MOSFETs in Small, High Heat Dissipation S-TOGL™ Package
Toshiba Electronic Devices & Storage Corporation ("Toshiba") has launched the "XPJ1R504PB," an automotive 40V N-channel power MOSFET rated at 120A featuring the S-TOGL™ package, expanding its lineup for 12V systems.
By adding this product to its existing lineup of mass-produced 40V products in the S-TOGL™ package, including XPJR6604PB and XPJ1R004PB, Toshiba has expanded the range of product options to meet various applications and performance requirements.
In recent years, with the advancement of electrification in automotive equipment, the adoption of inverters and motor drives has been expanding, driving higher output and efficiency. To address these trends, MOSFETs are required to deliver both low power loss and high heat dissipation. The XPJ1R504PB, featuring the S-TOGL™ package, enables compact, high-density mounting and excellent heat dissipation, thereby helping to reduce the size of automotive equipment and improve efficiency.
As automotive equipment is used in a wide range of temperature environments, the reliability of solder joints in board mounting is highly important. The S-TOGL™ package employs gull‑wing leads that help relieve mounting stress, thereby improving solder joint reliability.
The new product adopts a post-less structure that unifies the chip’s source electrode connection and outer leads, thereby reducing parasitic resistance and achieving low On resistance. This helps reduce conduction loss and suppress heat generation, thereby helping to improve overall system efficiency. The product is also compliant with the AEC-Q101 automotive reliability standard.
Toshiba will continue to promote the development of automotive MOSFET products suited to various applications and system requirements, thereby contributing to higher efficiency in a wide range of automotive applications.
Features
Small S-TOGL™ package with low package resistance, and high heat dissipation
Features Explanation
Small S-TOGL™ package with low package resistance, and high heat dissipation

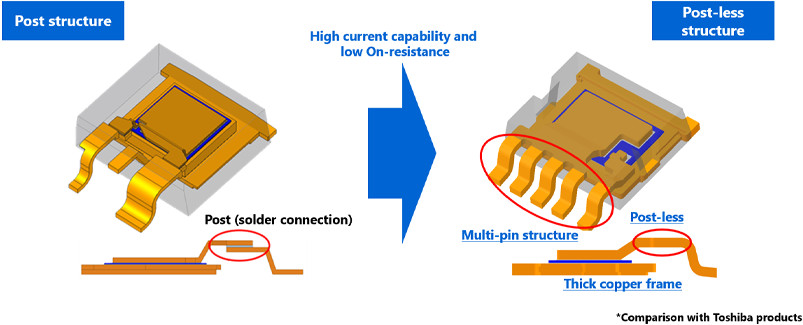

The S-TOGL™ package features a post-less structure that integrates the chip’s source electrode connection and outer leads, eliminating internal connection posts. This reduces parasitic resistance and achieves low On-resistance (RDS(ON)). In addition, the use of a thick copper frame lowers transient thermal impedance between the channel and the case, helping to reduce the size of equipment and power loss. Furthermore, a multi-pin structure for the source leads improves current distribution, enabling high current capability.
Applications
- Automotive equipment: inverters, semiconductor relays, load switches, motor drives, etc.
Main Specifications
(Unless otherwise specified, Ta=25°C)
| Part number | XPJ1R504PB | XPJR6604PB[1] | XPJ1R004PB[1] | |||
|---|---|---|---|---|---|---|
| Polarity | N-channel | |||||
| Absolute maximum ratings |
Drain-source voltage VDSS (V) | 40 | ||||
| Drain current (DC) ID (A) | 120 | 200 | 160 | |||
| Drain current (pulsed) IDP (A) | 360 | 600 | 480 | |||
| Channel temperature Tch (°C) | 175 | |||||
| Electrical characteristics |
Drain-source On-resistance RDS(ON) (mΩ) |
VGS=6V | Max | 2.67 | 1.16 | 1.8 |
| VGS=10V | Max | 1.54 | 0.66 | 1.0 | ||
| Gate threshold voltage Vth (V) |
VDS=10V | 2.0 to 3.0 | ||||
| Input capacitance Ciss (pF) |
VDS=10V, VGS=0V, f=300kHz |
Typ. | 4100 | 8750 | 5300 | |
| Thermal characteristics | Channel-to-case thermal impedance Zth(ch-c) (°C/W) |
Tc=25°C | Max | 0.76 | 0.4 | 0.67 |
| Package | S-TOGL™ | |||||
| Series | U-MOSⅨ-H | |||||
| Sample check & availability |  |
|
|
|||
Note:
[1] Existing products
