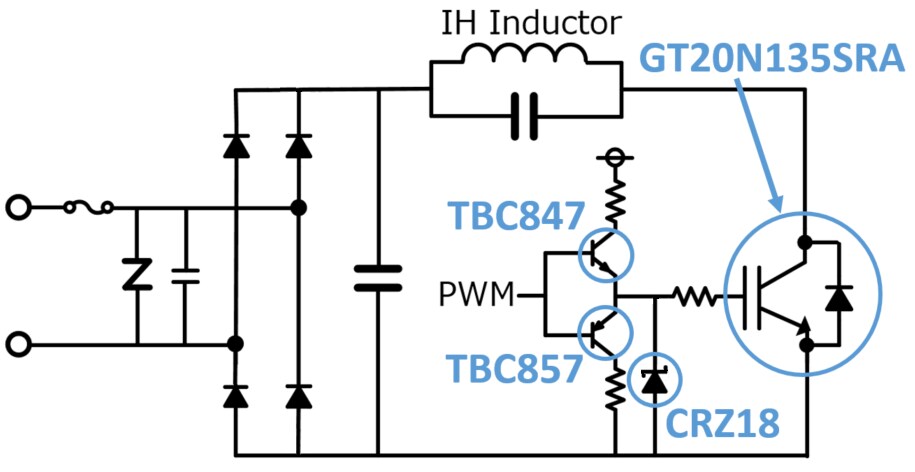

This reference design provides design guide, data and other contents of Inverter Circuit for IH Cooker based on Voltage-Resonant Soft Switching .
Click on components for more details
Input voltage | AC 200 to 240 V |
---|---|
Output power | 100 to 2000 W |
Circuit topology | Voltage-Resonant Soft Switching of the IGBT |
Design Documents contain the documents below.
Design Data contains the contents listed below.
Part Number | Device Category | Portion Usage | Description |
---|---|---|---|
IGBT for soft switching applications | Main switch・1 | 1350 V/40 A IGBT, Built-in Diodes, TO-247 |
