Inverter Circuit for IH Cooker

This reference design provides design guide, data and other contents of Inverter Circuit for IH Cooker based on Voltage-Resonant Soft Switching .
「Please note that 2SC6135 was designated as Not Recommended for New Design (NRND) as of April, 2026.」

Photo of Inverter Circuit for IH Cooker

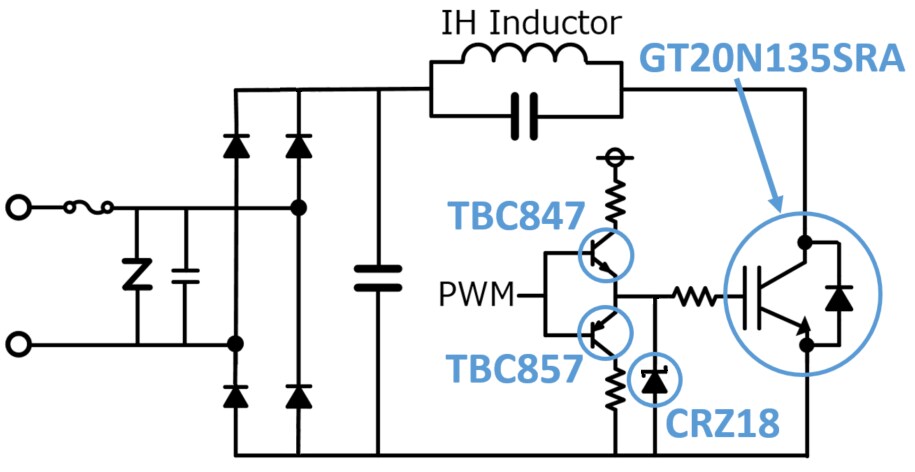

TBC847 TBC857 CRZ18 GT20N135SRA

Click on components for more details

特性

  • Maximum Output Power : 2000 W
  • Outline size : 205 mm x 110 mm
  • Low EMI noise due to optimum IGBT

說明

Input voltage AC 200 to 240 V
Output power 100 to 2000 W
Circuit topology Voltage-Resonant Soft Switching of the IGBT

Design Documents

Materials for designers, such as an overview of circuit operation and explanations of design considerations. Please click on each tab to view the contents.

Design Data

Provides circuit data that can be loaded into EDA tools, PCB layout data, and data used in PCB manufacturing. Available in formats from multiple tool vendors. You can freely edit it with your preferred tool.

使用東芝項目/產品

器件型號 器件目錄 使用部位・數量 說明
IGBT for soft switching applications Main switch・1 1350 V/40 A IGBT, Built-in Diodes, TO-247

Related Documents

We provide materials useful for designing and considering similar circuits, such as application notes for installed products. Please click on each tab to view the contents.
