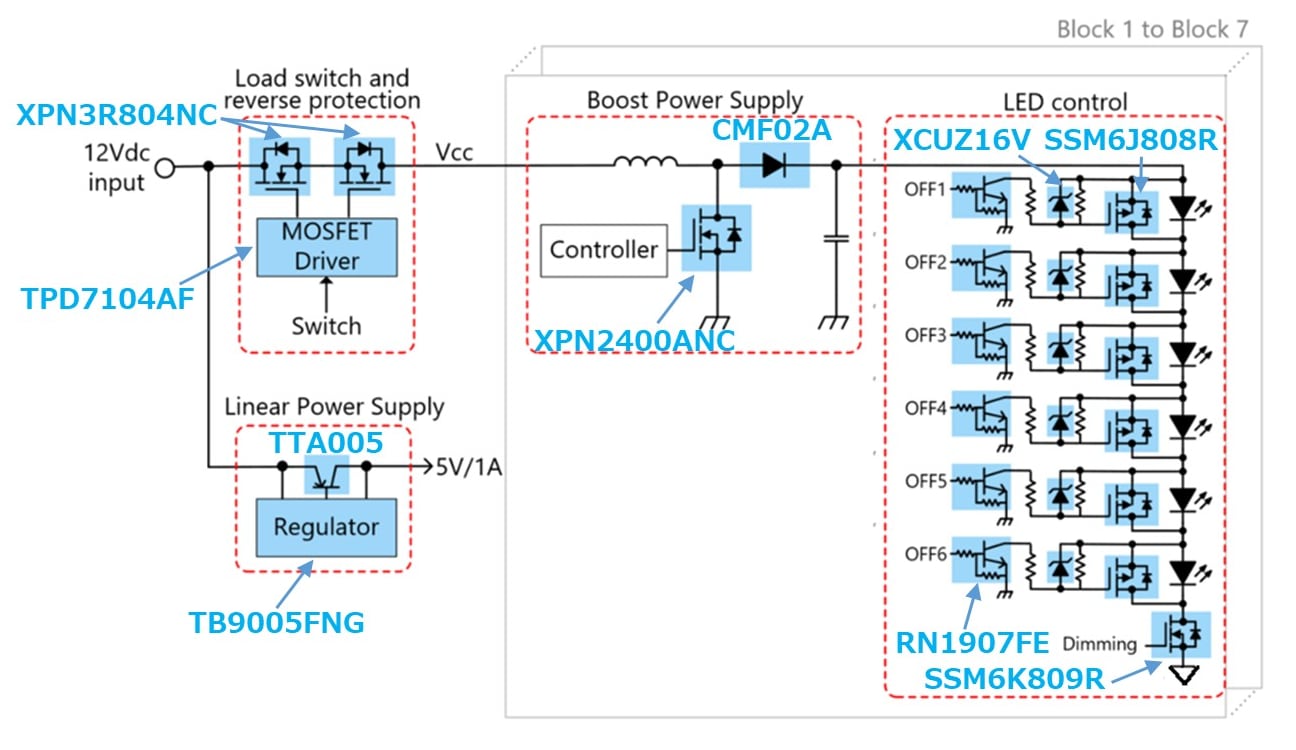

This reference design provides design guide, data and other contents of LED Matrix Headlight. It controls the lighting of multiple LEDs independently according to the situation.
Click on components for more details
Materials for designers, such as an overview of circuit operation and explanations of design considerations. Please click on each tab to view the contents.
Provides circuit data that can be loaded into EDA tools, PCB layout data, and data used in PCB manufacturing. Available in formats from multiple tool vendors. You can freely edit it with your preferred tool.
|Part Number||Device Category||Portion Usage||Description|
|Power MOSFET (N-ch single 30V<VDSS≤60V)||Load switch circuit, Reverse connection protection circuit・2||N-ch MOSFET, 40 V, 40 A, 0.0038 Ω@10V, TSON Advance(WF)|
|Intelligent power device (High side power-MOSFET driver with built-in charge pump)||High-side power MOSFET driver・1||Automotive Gate driver for High-side switch, PS-8|
|Super fast-recovery diode||Boost power supply circuit・7||600 V/1.0 A Rectifier Diode, M-FLAT|
|Zener diode||Boost power supply circuit・7||6.8 V Zener Diode, SOD-323(USC)|
|Small Low ON resistance MOSFETs||LED dimming control circuit・7||N-ch MOSFET, 60 V, 6.0 A, 0.036 Ω@10V, TSOP6F|
|Automobile CPU regulator, built-in watchdog timer||CPU power supply circuit・1|
|Power transistor for high-speed switching applications||CPU power supply circuit・1||PNP Bipolar Transistor, -50 V, -5 A, New PW-Mold|
|Small-signal MOSFET||LED lighting control circuit・42||P-ch MOSFET, -40 V, -7 A, 0.035 Ω@10V, TSOP6F|
|Bias resistor built-in transistor (BRT), 2-in-1||LED lighting control circuit・21||NPN x 2 Bias Resistor Built-in Transistors (BRT), 10 kΩ/47 kΩ, SOT-563(ES6)|
We provide materials useful for designing and considering similar circuits, such as application notes for installed products. Please click on each tab to view the contents.
