TPW1R104PB

Power MOSFET (N-ch single 30V<VDSS≤60V)

Related Reference Design(3)

ALL Data sheet Application Note Other

Data sheet

TPW1R104PB Data sheet/Japanese[Jun,2020]PDF: 741KB

Data sheet

TPW1R104PB Data sheet/English[Jun,2020]PDF: 635KB

Simulation Model

PSpice Model[Jun,2021]ZIP: 42KB

Simulation Model

LTspice Model[Jul,2021]ZIP: 46KB

Simulation Model

SIMetrix Model[Aug,2024]ZIP: 9KB

Simulation Model

ELDO Model[Aug,2024]ZIP: 11KB

Thermal Simulation Model

Simplified CFD Model[Mar,2023]ZIP: 12KB

Reliability Information

Reliability Data[Oct,2024]PDF: 276KB

Application Note

MOSFET SPICE model grade[May,2023]PDF: 1639KB

Application Note

Electrical Characteristics: Power MOSFET Application Notes[Feb,2023]PDF: 1266KB

Application Note

Simplified CFD Model Application Note[Nov,2022]PDF: 993KB

Application Note

Automotive MOSFET DSOP Advance(WF) Package Heat Dissipation Efficacy and Precautions When Mounting on a Board[Sep,2022]PDF: 1266KB

Application Note

Efficiency Evaluation and Loss Analysis of 300W isolated DC-DC converter[Sep,2021]PDF: 2324KB

Application Note

Quick Reference Guide for Thermal Design for Power Semiconductor SMD type: Part 2[Dec,2020]PDF: 3593KB

Application Note

Efficiency evaluation of Half-bridge DC-DC converter supporting 48V Bus system[Sep,2020]PDF: 1517KB

Application Note

Avalanche energy calculation[Mar,2020]PDF: 562KB

Application Note

Quick Reference Guide for Thermal Design for Discrete Semiconductor Devices[Feb,2020]PDF: 2104KB

Application Note

Resonant Circuits and Soft Switching[Nov,2019]PDF: 1071KB

Application Note

U-MOSⅨ-H 60V Low VDS spike TPH1R306P1[Aug,2019]PDF: 1081KB

Application Note

Hints and Tips for Thermal Design part3[Feb,2019]PDF: 3165KB

Application Note

Reverse Recovery Operation and Destruction of MOSFET Body Diode[Sep,2018]PDF: 472KB

Application Note

MOSFET Secondary Breakdown[Sep,2018]PDF: 450KB

Application Note

RC Snubbers for Step-Down Converters[Sep,2018]PDF: 1846KB

Application Note

Structures and Characteristics: Power MOSFET Application Notes[Jul,2018]PDF: 331KB

Application Note

Maximum Ratings: Power MOSFET Application Notes[Jul,2018]PDF: 705KB

Application Note

Selecting MOSFETs and Consideration for Circuit Design: Power MOSFET Application Notes[Jul,2018]PDF: 848KB

Application Note

Thermal Design and Attachment of a Thermal Fin: Power MOSFET Application Notes[Jul,2018]PDF: 789KB

Application Note

Parasitic Oscillation and Ringing: Power MOSFET Application Notes[Jul,2018]PDF: 1394KB

Application Note

Parasitic Oscillation between Parallel Power MOSFETs: Power MOSFET Application Notes[Jul,2018]PDF: 1178KB

Application Note

MOSFET Gate Drive Circuit: Power MOSFET Application Notes[Jul,2018]PDF: 1215KB

Application Note

Impacts of the dv/dt Rate on MOSFETs: Power MOSFET Application Notes[Jul,2018]PDF: 1077KB

Application Note

MOSFET Avalanche Ruggedness: Power MOSFET Application Notes[Jul,2018]PDF: 616KB

Application Note

Hints and Tips for Thermal Design for Discrete Semiconductor Devices[Jul,2018]PDF: 1266KB

Application Note

Calculating the Temperature of Discrete Semiconductor Devices[Jul,2018]PDF: 965KB

Application Note

Derating of the MOSFET Safe Operating Area[Jul,2018]PDF: 656KB

Application Note

MOSFET Self-Turn-On Phenomenon[Jul,2018]PDF: 1338KB

Application Note

Discrete Semiconductor Devices Hints and Tips for Thermal Design Part 2[Jul,2018]PDF: 1069KB

Application Note

Motor Control (Vacuum Cleaners)[Jul,2018]PDF: 2483KB

Catalog

Selection Guide MOSFETs 2025 Rev1.0[Feb,2025]PDF: 3497KB

Data sheet

TPW1R104PB Data sheet/Japanese[Jun,2020]PDF: 741KB

Data sheet

TPW1R104PB Data sheet/English[Jun,2020]PDF: 635KB

Application Note

MOSFET SPICE model grade[May,2023]PDF: 1639KB

Application Note

Electrical Characteristics: Power MOSFET Application Notes[Feb,2023]PDF: 1266KB

Application Note

Simplified CFD Model Application Note[Nov,2022]PDF: 993KB

Application Note

Automotive MOSFET DSOP Advance(WF) Package Heat Dissipation Efficacy and Precautions When Mounting on a Board[Sep,2022]PDF: 1266KB

Application Note

Efficiency Evaluation and Loss Analysis of 300W isolated DC-DC converter[Sep,2021]PDF: 2324KB

Application Note

Quick Reference Guide for Thermal Design for Power Semiconductor SMD type: Part 2[Dec,2020]PDF: 3593KB

Application Note

Efficiency evaluation of Half-bridge DC-DC converter supporting 48V Bus system[Sep,2020]PDF: 1517KB

Application Note

Avalanche energy calculation[Mar,2020]PDF: 562KB

Application Note

Quick Reference Guide for Thermal Design for Discrete Semiconductor Devices[Feb,2020]PDF: 2104KB

Application Note

Resonant Circuits and Soft Switching[Nov,2019]PDF: 1071KB

Application Note

U-MOSⅨ-H 60V Low VDS spike TPH1R306P1[Aug,2019]PDF: 1081KB

Application Note

Hints and Tips for Thermal Design part3[Feb,2019]PDF: 3165KB

Application Note

Reverse Recovery Operation and Destruction of MOSFET Body Diode[Sep,2018]PDF: 472KB

Application Note

MOSFET Secondary Breakdown[Sep,2018]PDF: 450KB

Application Note

RC Snubbers for Step-Down Converters[Sep,2018]PDF: 1846KB

Application Note

Structures and Characteristics: Power MOSFET Application Notes[Jul,2018]PDF: 331KB

Application Note

Maximum Ratings: Power MOSFET Application Notes[Jul,2018]PDF: 705KB

Application Note

Selecting MOSFETs and Consideration for Circuit Design: Power MOSFET Application Notes[Jul,2018]PDF: 848KB

Application Note

Thermal Design and Attachment of a Thermal Fin: Power MOSFET Application Notes[Jul,2018]PDF: 789KB

Application Note

Parasitic Oscillation and Ringing: Power MOSFET Application Notes[Jul,2018]PDF: 1394KB

Application Note

Parasitic Oscillation between Parallel Power MOSFETs: Power MOSFET Application Notes[Jul,2018]PDF: 1178KB

Application Note

MOSFET Gate Drive Circuit: Power MOSFET Application Notes[Jul,2018]PDF: 1215KB

Application Note

Impacts of the dv/dt Rate on MOSFETs: Power MOSFET Application Notes[Jul,2018]PDF: 1077KB

Application Note

MOSFET Avalanche Ruggedness: Power MOSFET Application Notes[Jul,2018]PDF: 616KB

Application Note

Hints and Tips for Thermal Design for Discrete Semiconductor Devices[Jul,2018]PDF: 1266KB

Application Note

Calculating the Temperature of Discrete Semiconductor Devices[Jul,2018]PDF: 965KB

Application Note

Derating of the MOSFET Safe Operating Area[Jul,2018]PDF: 656KB

Application Note

MOSFET Self-Turn-On Phenomenon[Jul,2018]PDF: 1338KB

Application Note

Discrete Semiconductor Devices Hints and Tips for Thermal Design Part 2[Jul,2018]PDF: 1069KB

Application Note

Motor Control (Vacuum Cleaners)[Jul,2018]PDF: 2483KB

Simulation Model

PSpice Model[Jun,2021]ZIP: 42KB

Simulation Model

LTspice Model[Jul,2021]ZIP: 46KB

Simulation Model

SIMetrix Model[Aug,2024]ZIP: 9KB

Simulation Model

ELDO Model[Aug,2024]ZIP: 11KB

Thermal Simulation Model

Simplified CFD Model[Mar,2023]ZIP: 12KB

Reliability Information

Reliability Data[Oct,2024]PDF: 276KB

Catalog

Selection Guide MOSFETs 2025 Rev1.0[Feb,2025]PDF: 3497KB

Description

Application Scope	DC-DC Converters / Automotive / Motor Drivers / Load Switches
Polarity	N-ch
Generation	U-MOSⅨ-H
Internal Connection	Single
PPAP	Capable(*)
AEC-Q101	Qualified(*)
RoHS Compatible Product(s) (#)	Available

*: For detail information, please contact to our sales.

Package Information

Toshiba Package Name	DSOP Advance(WF)M
Package Image
Pins	8
Mounting	Surface Mount
Width×Length×Height (mm)	5.0×6.0×0.76
Package Dimensions	View
Land pattern dimensions	View
Ultra Librarian^® CAD model (Symbol, Footprint and 3D model)	Download from UltraLibrarian^® in your desired CAD format (Note1)(Note3)
SamacSys CAD model (Symbol, Footprint and 3D model)	Download from SamacSys (Note2)(Note3)

Please refer to the link destination to check the detailed size.

(Note1)	Ultra Librarian^® is a Registered trademark and CAD model library of EMA (EMA Design Automation, Inc.). CAD models (Symbol/Footprint /3D model) are provided by UltraLibrarian^®. The footprints are generated based on the specifications of Ultra Librarian^®.
(Note2)	SamacSys is a wholly owned subsidiary of Supplyframe, Inc. CAD models (Symbol/Footprint /3D model) are provided by Supplyframe, Inc. The footprints are generated based on the specifications of SamacSys.
(Note3)	Please note that the footprint dimensions may differ from the reference Land Pattern dimensions provided on our website.

Absolute Maximum Ratings

Characteristics	Symbol	Rating	Unit
Drain-Source voltage	V_DSS	40	V
Gate-Source voltage	V_GSS	+/-20	V
Drain current	I_D	120	A
Power Dissipation	P_D	132	W

Electrical Characteristics

Characteristics	Symbol	Condition	Value	Unit
Gate threshold voltage (Max)	V_th	-	3.0	V
Gate threshold voltage (Min)	V_th	-	2.0	V
Drain-Source on-resistance (Max)	R_DS(ON)	\|V_GS\|=6V	1.96	mΩ
Drain-Source on-resistance (Max)	R_DS(ON)	\|V_GS\|=10V	1.14	mΩ
Input capacitance (Typ.)	C_iss	-	4560	pF
Total gate charge (Typ.)	Q_g	V_GS=10V	55	nC

Notes

The Part Number column shows representative part numbers only, which may not be available for sale in the precise form shown. Each Part Number constitutes a product family which may contain multiple associated product configurations.
(#) Under the RoHS Compatible Product(s) column, "Available" means at least one RoHS-Compatible product is available for sale in the corresponding product family. "None" means no RoHS Compatible product is available in that product family. For Toshiba's definitions of concepts related to the RoHS Directive and RoHS Compatibility, please click here.
The RoHS compatibility information provided herein is to the best of Toshiba's knowledge and belief accurate as of the date Toshiba entered the information into this database. Information is subject to change at any time without notice.
Please contact your Toshiba sales representative for detailed environmental information about each specific part number or product, such as RoHS compatibility or material content. Please use Toshiba products only in compliance with all applicable laws and regulations concerning the inclusion or use of controlled substances, including without limitation the RoHS Directive.TOSHIBA ASSUMES NO LIABILITY FOR DAMAGES OR LOSSES OCCURRING AS A RESULT OF NONCOMPLIANCE WITH APPLICABLE LAWS AND REGULATIONS.

Reliability data are provided for your reference only, please contact your Toshiba sales representative for detailed reliability information about each part number.

For product delivery, additional characters will be added to the part numbers shown on this website. For details, please ask your local distributor, or send an inquiry accessed from "Contact Us" on this website.

(Note1)	LTspice ^® is a trademark and simulation software of ADI (Analog Devices, Inc.).
(Note2)	SIMetrix^® is simulation software and registered trademarks of SIMetrix Technologies Ltd.
(Note3)	ELDO™ is a trademark and simulation software of Siemens Industry Software Inc. Click here for the list of trademarks related to Siemens Industry Software Inc.

Body Electronics

xEV

In-Vehicle Infotainment

Advanced Driver-Assistance Systems (ADAS)

Chassis

Infrastructure

BEMS/HEMS

Factory Automation

Commercial Equipment

IoT Equipment

Healthcare

Wearable Device

Mobile

Computer Peripherals

Home Applicances

SiC Power Devices

Photocouplers

Digital Isolators

Solid State Relays

Fiber Optic Transmitting Modules

Discrete Semiconductor

Diodes

Transistors

Logic ICs

Analog Devices

Digital Devices

Wireless Devices

RF Diodes

Others

TPW1R104PB

Description

Package Information

Absolute Maximum Ratings

Electrical Characteristics

Document

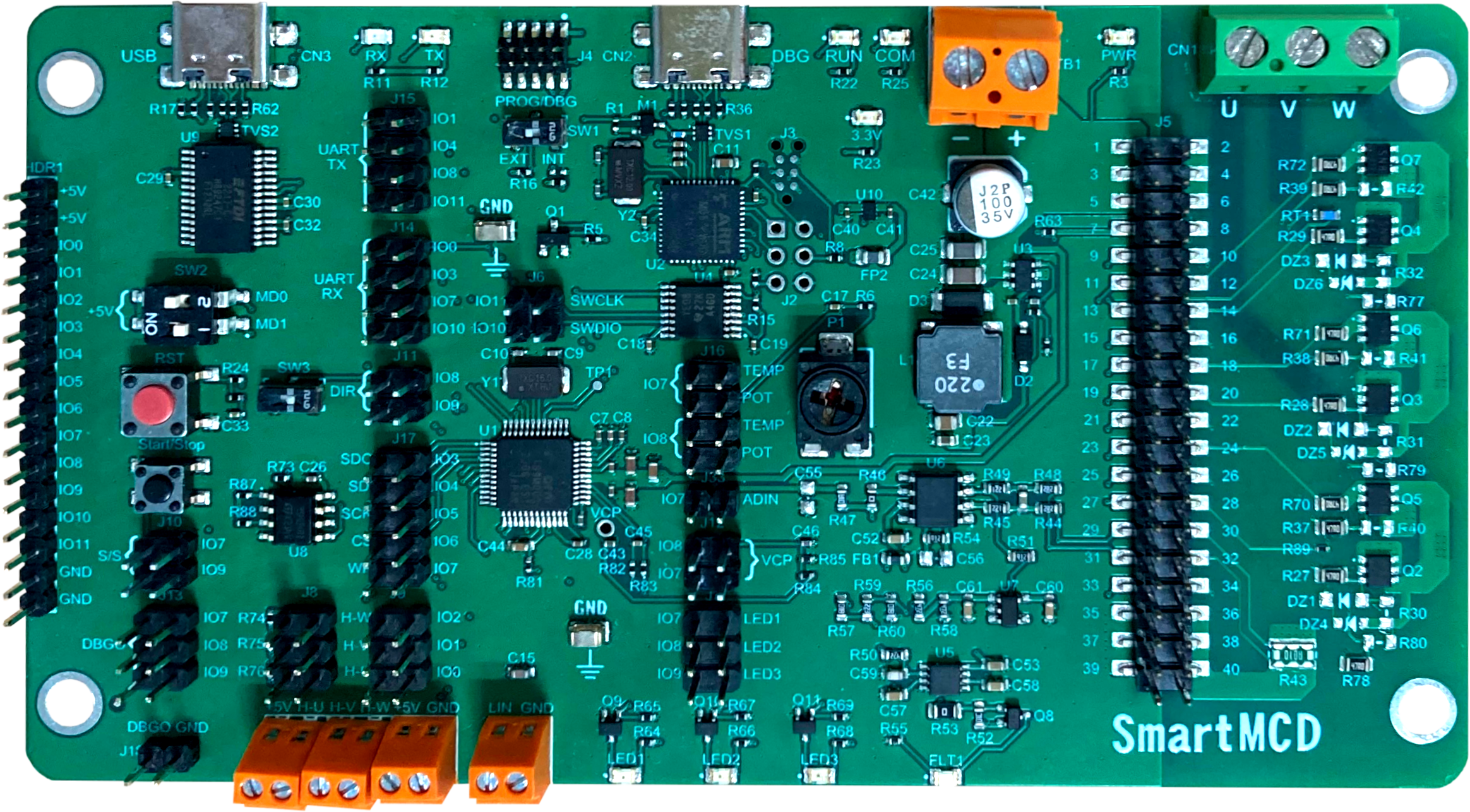

Reference Design
