TPW1R104PB

Power MOSFET (N-ch single 30V<VDSS≤60V)

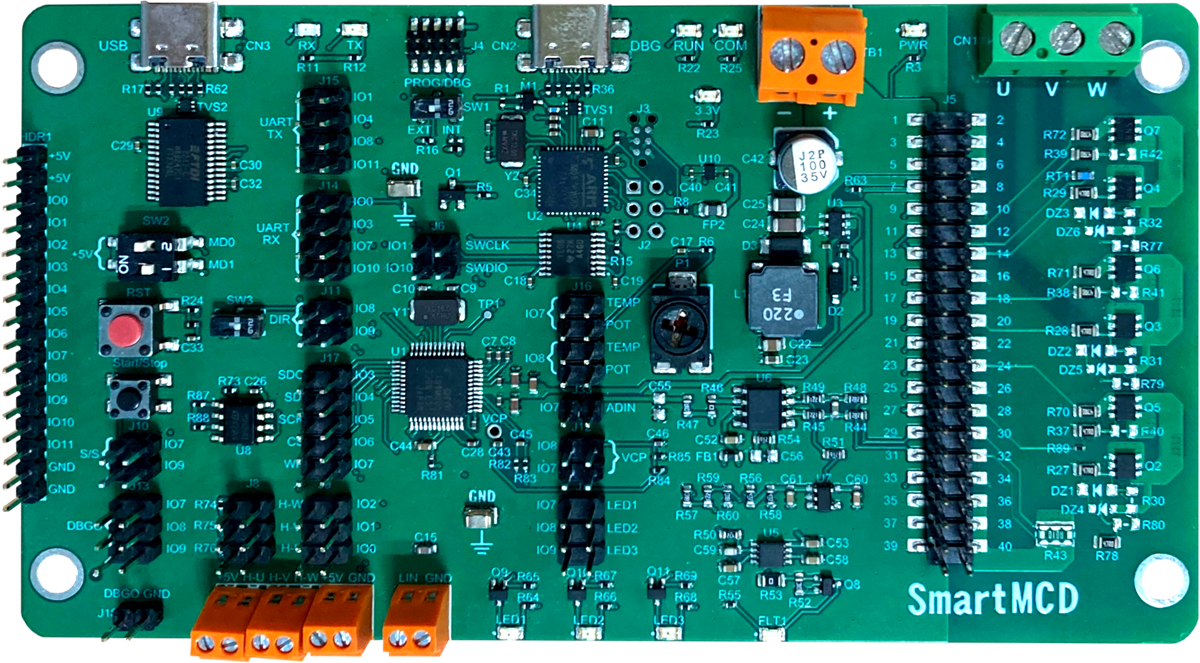

  • 相關參考設計(3)

數據表

TPW1R104PB 數據表/日文[Jun,2020]PDF: 741KB

數據表

TPW1R104PB 數據表/英文[Jun,2020]PDF: 635KB

Simulation Model

PSpice Model[Jun,2021]ZIP: 42KB

Simulation Model

LTspice Model[Jul,2021]ZIP: 46KB

Simulation Model

SIMetrix Model[Aug,2024]ZIP: 9KB

Simulation Model

ELDO Model[Aug,2024]ZIP: 11KB

Thermal Simulation Model

Simplified CFD Model[Mar,2023]ZIP: 12KB

Reliability Information

Reliability Data[Oct,2024]PDF: 276KB

Application Note

MOSFET SPICE model grade[May,2023]PDF: 1639KB

Application Note

Electrical Characteristics: Power MOSFET Application Notes[Feb,2023]PDF: 1266KB

Application Note

Simplified CFD Model Application Note[Nov,2022]PDF: 993KB

Application Note

Automotive MOSFET DSOP Advance(WF) Package Heat Dissipation Efficacy and Precautions When Mounting on a Board[Sep,2022]PDF: 1266KB

Application Note

Efficiency Evaluation and Loss Analysis of 300W isolated DC-DC converter[Sep,2021]PDF: 2324KB

Application Note

Quick Reference Guide for Thermal Design for Power Semiconductor SMD type: Part 2[Dec,2020]PDF: 3593KB

Application Note

Efficiency evaluation of Half-bridge DC-DC converter supporting 48V Bus system[Sep,2020]PDF: 1517KB

Application Note

Avalanche energy calculation[Mar,2020]PDF: 562KB

Application Note

Quick Reference Guide for Thermal Design for Discrete Semiconductor Devices[Feb,2020]PDF: 2104KB

Application Note

Resonant Circuits and Soft Switching[Nov,2019]PDF: 1071KB

Application Note

U-MOSⅨ-H 60V Low VDS spike TPH1R306P1[Aug,2019]PDF: 1081KB

Application Note

Hints and Tips for Thermal Design part3[Feb,2019]PDF: 3165KB

Application Note

Reverse Recovery Operation and Destruction of MOSFET Body Diode[Sep,2018]PDF: 472KB

Application Note

MOSFET Secondary Breakdown[Sep,2018]PDF: 450KB

Application Note

RC Snubbers for Step-Down Converters[Sep,2018]PDF: 1846KB

Application Note

Structures and Characteristics: Power MOSFET Application Notes[Jul,2018]PDF: 331KB

Application Note

Maximum Ratings: Power MOSFET Application Notes[Jul,2018]PDF: 705KB

Application Note

Selecting MOSFETs and Consideration for Circuit Design: Power MOSFET Application Notes[Jul,2018]PDF: 848KB

Application Note

Thermal Design and Attachment of a Thermal Fin: Power MOSFET Application Notes[Jul,2018]PDF: 789KB

Application Note

Parasitic Oscillation and Ringing: Power MOSFET Application Notes[Jul,2018]PDF: 1394KB

Application Note

Parasitic Oscillation between Parallel Power MOSFETs: Power MOSFET Application Notes[Jul,2018]PDF: 1178KB

Application Note

MOSFET Gate Drive Circuit: Power MOSFET Application Notes[Jul,2018]PDF: 1215KB

Application Note

Impacts of the dv/dt Rate on MOSFETs: Power MOSFET Application Notes[Jul,2018]PDF: 1077KB

Application Note

MOSFET Avalanche Ruggedness: Power MOSFET Application Notes[Jul,2018]PDF: 616KB

Application Note

Hints and Tips for Thermal Design for Discrete Semiconductor Devices[Jul,2018]PDF: 1266KB

Application Note

Calculating the Temperature of Discrete Semiconductor Devices[Jul,2018]PDF: 965KB

Application Note

Derating of the MOSFET Safe Operating Area[Jul,2018]PDF: 656KB

Application Note

MOSFET Self-Turn-On Phenomenon[Jul,2018]PDF: 1338KB

Application Note

Discrete Semiconductor Devices Hints and Tips for Thermal Design Part 2[Jul,2018]PDF: 1069KB

Application Note

Motor Control (Vacuum Cleaners)[Jul,2018]PDF: 2483KB

Catalog

Selection Guide MOSFETs 2024 Rev2.0[Jul,2024]PDF: 10837KB

數據表

TPW1R104PB 數據表/日文[Jun,2020]PDF: 741KB

數據表

TPW1R104PB 數據表/英文[Jun,2020]PDF: 635KB

Application Note

MOSFET SPICE model grade[May,2023]PDF: 1639KB

Application Note

Electrical Characteristics: Power MOSFET Application Notes[Feb,2023]PDF: 1266KB

Application Note

Simplified CFD Model Application Note[Nov,2022]PDF: 993KB

Application Note

Automotive MOSFET DSOP Advance(WF) Package Heat Dissipation Efficacy and Precautions When Mounting on a Board[Sep,2022]PDF: 1266KB

Application Note

Efficiency Evaluation and Loss Analysis of 300W isolated DC-DC converter[Sep,2021]PDF: 2324KB

Application Note

Quick Reference Guide for Thermal Design for Power Semiconductor SMD type: Part 2[Dec,2020]PDF: 3593KB

Application Note

Efficiency evaluation of Half-bridge DC-DC converter supporting 48V Bus system[Sep,2020]PDF: 1517KB

Application Note

Avalanche energy calculation[Mar,2020]PDF: 562KB

Application Note

Quick Reference Guide for Thermal Design for Discrete Semiconductor Devices[Feb,2020]PDF: 2104KB

Application Note

Resonant Circuits and Soft Switching[Nov,2019]PDF: 1071KB

Application Note

U-MOSⅨ-H 60V Low VDS spike TPH1R306P1[Aug,2019]PDF: 1081KB

Application Note

Hints and Tips for Thermal Design part3[Feb,2019]PDF: 3165KB

Application Note

Reverse Recovery Operation and Destruction of MOSFET Body Diode[Sep,2018]PDF: 472KB

Application Note

MOSFET Secondary Breakdown[Sep,2018]PDF: 450KB

Application Note

RC Snubbers for Step-Down Converters[Sep,2018]PDF: 1846KB

Application Note

Structures and Characteristics: Power MOSFET Application Notes[Jul,2018]PDF: 331KB

Application Note

Maximum Ratings: Power MOSFET Application Notes[Jul,2018]PDF: 705KB

Application Note

Selecting MOSFETs and Consideration for Circuit Design: Power MOSFET Application Notes[Jul,2018]PDF: 848KB

Application Note

Thermal Design and Attachment of a Thermal Fin: Power MOSFET Application Notes[Jul,2018]PDF: 789KB

Application Note

Parasitic Oscillation and Ringing: Power MOSFET Application Notes[Jul,2018]PDF: 1394KB

Application Note

Parasitic Oscillation between Parallel Power MOSFETs: Power MOSFET Application Notes[Jul,2018]PDF: 1178KB

Application Note

MOSFET Gate Drive Circuit: Power MOSFET Application Notes[Jul,2018]PDF: 1215KB

Application Note

Impacts of the dv/dt Rate on MOSFETs: Power MOSFET Application Notes[Jul,2018]PDF: 1077KB

Application Note

MOSFET Avalanche Ruggedness: Power MOSFET Application Notes[Jul,2018]PDF: 616KB

Application Note

Hints and Tips for Thermal Design for Discrete Semiconductor Devices[Jul,2018]PDF: 1266KB

Application Note

Calculating the Temperature of Discrete Semiconductor Devices[Jul,2018]PDF: 965KB

Application Note

Derating of the MOSFET Safe Operating Area[Jul,2018]PDF: 656KB

Application Note

MOSFET Self-Turn-On Phenomenon[Jul,2018]PDF: 1338KB

Application Note

Discrete Semiconductor Devices Hints and Tips for Thermal Design Part 2[Jul,2018]PDF: 1069KB

Application Note

Motor Control (Vacuum Cleaners)[Jul,2018]PDF: 2483KB

Simulation Model

PSpice Model[Jun,2021]ZIP: 42KB

Simulation Model

LTspice Model[Jul,2021]ZIP: 46KB

Simulation Model

SIMetrix Model[Aug,2024]ZIP: 9KB

Simulation Model

ELDO Model[Aug,2024]ZIP: 11KB

Thermal Simulation Model

Simplified CFD Model[Mar,2023]ZIP: 12KB

Reliability Information

Reliability Data[Oct,2024]PDF: 276KB

Catalog

Selection Guide MOSFETs 2024 Rev2.0[Jul,2024]PDF: 10837KB

產品概要

Application Scope DC-DC Converters / Automotive / Motor Drivers / Load Switches
Polarity N-ch
Generation U-MOSⅨ-H
Internal Connection Single
PPAP Capable(*)
AEC-Q101 Qualified(*)
RoHS Compatible Product(s) (#) Available

*: For detail information, please contact to our sales.

包裝資訊

Toshiba Package Name DSOP Advance(WF)M
Package Image DSOP Advance(WF)M
Pins 8
Mounting Surface Mount
Width×Length×Height
(mm)		 5.0×6.0×0.76
Package Dimensions 檢視
Land pattern dimensions 檢視
CAD data
(Symbol, Footprint and 3D model)		 Download from UltraLibrarian<sup>®</sup> in your desired CAD format (Note) Download from UltraLibrarian® in your desired CAD format (Note)

 Please refer to the link destination to check the detailed size.

 (Note) Ultra Librarian® is a Registered trademark and CAD data library of EMA (EMA Design Automation, Inc.).

絕對最大額定值

項目 符號 值 單位
Drain-Source voltage VDSS 40 V
Gate-Source voltage VGSS +/-20 V
Drain current ID 120 A
Power Dissipation PD 132 W

電器特性

項目 符號 條件 值 單位
Gate threshold voltage (Max) Vth - 3.0 V
Gate threshold voltage (Min) Vth - 2.0 V
Drain-Source on-resistance (Max) RDS(ON) |VGS|=6V 1.96 mΩ
Drain-Source on-resistance (Max) RDS(ON) |VGS|=10V 1.14 mΩ
Input capacitance (Typ.) Ciss - 4560 pF
Total gate charge (Typ.) Qg VGS=10V 55 nC
購買及樣品申請
請聯繫東芝的官方經銷商之一或最近的東芝銷售辦事處
點選以下連結搜索和購買小量樣品

文檔

  • 如果沒看到確認框則對應文件目前無法下載

Jun,2021

Jul,2021

Aug,2024

Aug,2024

Mar,2023

Oct,2024

(Note1)

LTspice ® is a trademark and simulation software of ADI (Analog Devices, Inc.).

(Note2)

SIMetrix® is simulation software and registered trademarks of SIMetrix Technologies Ltd.

(Note3)

ELDO™ is a trademark and simulation software of Siemens Industry Software Inc.
Click here for the list of trademarks related to Siemens Industry Software Inc.

Orderable part number

Orderable part number
(example)		 MOQ(pcs) Reliability
Information		 RoHS AEC-Q100
AEC-Q101
TPW1R104PB,L1Q 5000 Yes -
TPW1R104PB,L1XHQ 5000 - Yes Yes
