TLP5222

Photocoupler (photo-IC output)

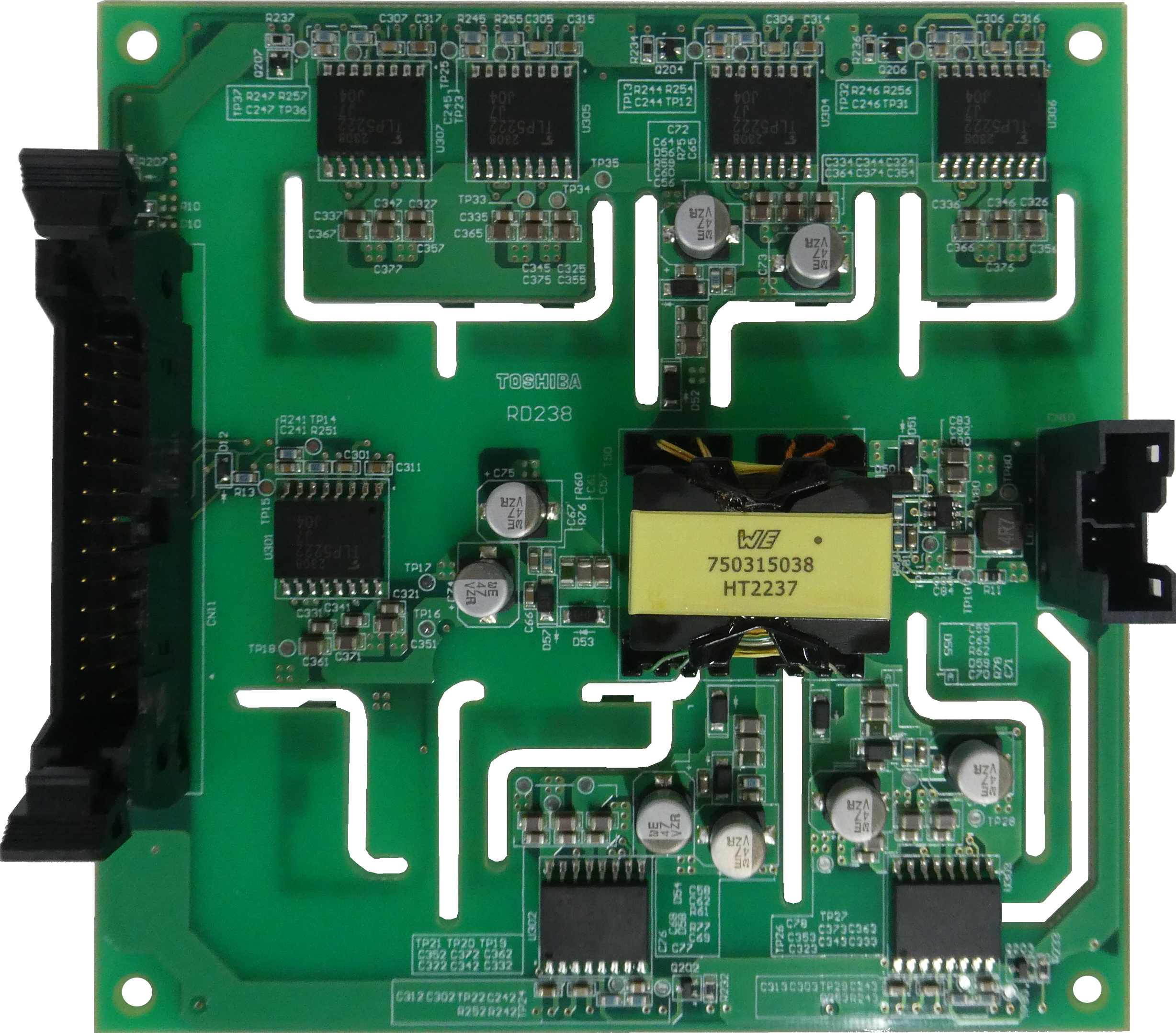

  • Related Reference Design(1)

Data sheet

TLP5222 Data sheet/Japanese[Jul,2022]PDF: 3406KB

Data sheet

TLP5222 Data sheet/English[Jul,2022]PDF: 2965KB

Simulation Model

PSpice Model[Dec,2023]ZIP: 19KB

Reliability Information

Reliability Data[Dec,2023]PDF: 175KB

Environment Information

Certificate Regarding EU RoHS(2011/65/EU)Controlled Substances[Nov,2024]PDF: 85KB

Environment Information

Certificate on Content of SVHC of REACH[Nov,2024]PDF: 84KB

Application Note

Smart Gate Driver Coupler Tips for Designing DESAT Detection Circuits[May,2022]PDF: 1055KB

Application Note

Smart Gate Driver TLP5214A/TLP5214/TLP5212/TLP5222 Application Note -Introduction-[Apr,2022]PDF: 1534KB

Application Note

Smart Gate Driver Coupler TLP5214/TLP5214A/TLP5212/TLP5222 Appication Note -Advanced edition-[Apr,2022]PDF: 2189KB

Application Note

Safety standards for photocouplers[Mar,2021]PDF: 753KB

Application Note

Glossary of Photocoupler and Photorelay Terms[Mar,2018]PDF: 509KB

Catalog

Selection Guide Isolators and Solid State Relays 2024Rev2.0[Aug,2024]PDF: 14710KB

Catalog

Photocouplers and Photorelays[Apr,2020]PDF: 2619KB

Data sheet

TLP5222 Data sheet/Japanese[Jul,2022]PDF: 3406KB

Data sheet

TLP5222 Data sheet/English[Jul,2022]PDF: 2965KB

Application Note

Smart Gate Driver Coupler Tips for Designing DESAT Detection Circuits[May,2022]PDF: 1055KB

Application Note

Smart Gate Driver TLP5214A/TLP5214/TLP5212/TLP5222 Application Note -Introduction-[Apr,2022]PDF: 1534KB

Application Note

Smart Gate Driver Coupler TLP5214/TLP5214A/TLP5212/TLP5222 Appication Note -Advanced edition-[Apr,2022]PDF: 2189KB

Application Note

Safety standards for photocouplers[Mar,2021]PDF: 753KB

Application Note

Glossary of Photocoupler and Photorelay Terms[Mar,2018]PDF: 509KB

Simulation Model

PSpice Model[Dec,2023]ZIP: 19KB

Reliability Information

Reliability Data[Dec,2023]PDF: 175KB

Environment Information

Certificate Regarding EU RoHS(2011/65/EU)Controlled Substances[Nov,2024]PDF: 85KB

Environment Information

Certificate on Content of SVHC of REACH[Nov,2024]PDF: 84KB

Catalog

Selection Guide Isolators and Solid State Relays 2024Rev2.0[Aug,2024]PDF: 14710KB

Catalog

Photocouplers and Photorelays[Apr,2020]PDF: 2619KB

Description

Feature 2.5A peak current / Power device desaturation detection / Power device soft gate turn-off / Isolated fault status feedback
Application Scope Factory automation / Inverter / PV inverter
Function IGBT driver
Number of Circuits 1
Output Interface totem-pole(BUF)
RoHS Compatible Product(s) (#) Available
Safety Standard Approved　:　UL 1577 / cUL (CSA Component Acceptance Service No. 5A) / EN 60747-5-5 (VDE) / EN IEC 62368-1 (VDE) / GB 4943.1-2022 (CQC)

*Download Online Certification of Safety Standard(UL 1577)
*Download Online Certification of Safety Standard(cUL)

Package Information

Toshiba Package Name SO16L
Package Image SO16L
Pins 16
Mounting Surface Mount
Width×Length×Height
(mm)		 10.3×10.0×2.1
Package Dimensions View
Land pattern dimensions View

 Please refer to the link destination to check the detailed size.

Absolute Maximum Ratings

Characteristics Symbol Rating Unit
Supply Voltage VCC2-VEE -0.5 to 35 V
Operating Temperature Topr -40 to 110 ℃

Electrical Characteristics

Characteristics Symbol Condition Value Unit
Pulse width distortion |tpHL-tpLH| - 50 ns
Isolation voltage BVS t=60sec 5000 Vrms
Common mode transient immunity CMH / CML - +/-25 kV/μs
ICC2 (Max) ICC2 - 5 mA
threshold input current(L/H) IFLH - 6 mA
Output Current Iout (peak) (Max) IOP - +/-2.5 A
Propagation delay time (H/L)(Max) tpHL - 250 ns
Propagation delay time (H/L)(Typ.) tpHL - 165 ns
Propagation delay time (L/H)(Max) tpLH - 250 ns
Propagation delay time (L/H)(Typ.) tpLH - 170 ns
Supply Voltage(under Recommended Operating Conditions)(Max) VCC2-VE - 30 V
Supply Voltage(under Recommended Operating Conditions)(Min) VCC2-VE - 15 V
