車用無刷馬達驅控器

For automotive electric pumps, we use sensor-less technology with hard logic control, which has a proven track record in many automotive applications. For HVAC blowers, sinusoidal drive technology provides a quiet and efficient motor drive. For EPS applications, we have a lineup of sensor input products that incorporate functional safety requirements. These automotive motor ASSPs meet the specifications required by customers for various applications and motorization needs. We provide automotive solutions that have qualified the Automotive Reliability Test (AEC-Q100).

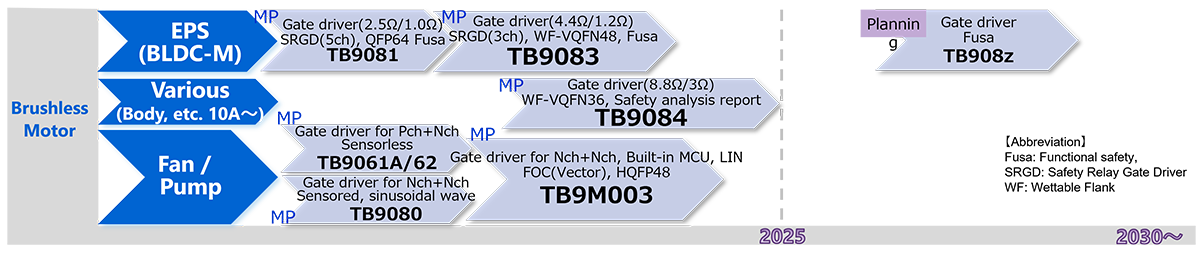

Automotive Brushless Motor Driver ICs roadmap

產品線

Part Number	Package	Input	Commutation	Output	Features & Functions	Supply Voltage	Rel. Level
TB9061AFNG	SSOP24-P-300-0.65A	PWM, DC voltage	120 degree (sensorless)	Gate-drivers P-ch/N-ch	Simple application circuit due to external part count reduction Sensorless control, Overcurrent detection, Wide PWM dynamic range for output	5.5 to 18V	AEC-Q100 qualified
TB9062FNG	SSOP24	PWM	120 degree (sensorless)	Gate-drivers P-ch/N-ch	Sensorless control scheme	8 to 16V	-
TB9067FNG	SSOP24-P-300-0.65A	PWM, DC voltage	120 degree	Gate-drivers P-ch/N-ch	Only a few external parts required, Support for both PWM and DC inputs 120-degree commutation, 5-V sensor comparator	6 to 18V	-
TB9068FG	QFP48-P-0707-0.50	PWM, phase signals	120 degree external control	Drivers	Allows direct drive of a motor with built-in 0.3-A drivers LIN 1.3 transceiver, 5-V system power supply	7 to 18V	-
TB9080FG	LQFP64-P-1010-0.50E	PWM, DC voltage	180 degree sine wave	Gate-drivers N-ch/N-ch	Quiet motor operation due to the use of sine wave current High drive efficiency thanks to auto lead angle control	7 to 18V	AEC-Q100 qualified
TB9081FG	LQFP64-P-1010-0.50E	PWM	External control	Gate-drivers N-ch/N-ch	5-channel safety relays, Selectable operation on fault detection Initial diagnosis of detection circuits	4.5 to 28V	AEC-Q100 qualified
TB9083FTG	P-VQFN48-0707-0.50-005	PWM	External control	Gate-drivers N-ch/N-ch	3-channel safety relays, Selectable operation on fault detection, initial diagnosis of detection circuits	4.5 to 28V	AEC-Q100 qualified
TB9084FTG Under development	P-VQFN36-0606-0.50-003	PWM	External control	Gate-drivers Nch/Nch	A cut-down version of TB9083. Reduced gate driver current capability, reduced current sense amplifier to 2ch and Safety relay gate driver to 2ch, etc.	5.7 to 28V	AEC-Q100 qualified
TB9M003FG	P-HTQFP48-0707-0.50-001	-	Vector control	Gate-drivers N-ch/N-ch	Integrated MCU and gate drivers enable downsizing of the system Built-in vector engine for our original sensor-less control	6 to 18V	AEC-Q100 qualified

Technical Articles

Automotive Devices / Analog Devices / Automotive Brushless Motor Driver ICs

Gate-Driver IC for Automotive Three-Phase Brushless Motor: TB9084FTG

A cut-down version of TB9083FTG. It implements only the minimum necessary functions considered essential for automotive gate driver products, targeting a wide range of applications.

Automotive Devices / Analog Devices / Automotive Brushless Motor Driver ICs

Gate-Driver IC for Automotive Three-Phase Brushless Motor: TB9083FTG

Gate driver IC capable of the latest functional safety standards For three-phase brushless DC motor applications such as electric power steering (EPS) and electric brakes.

Automotive Devices / Analog Devices / Automotive Brushless Motor Driver ICs

Three-Phase Brushless Sensorless Pre-driver IC TB9062FNG

Sensorless control pre-driver with startup stability and out-of-step prevention function improved from TB9061AFNG

Automotive Devices / Analog Devices / Automotive Brushless Motor Driver ICs

3-Phase BLDC Motor Pre-driver IC for EPS Applications: TB9081FG

3-phase motor pre-driver IC that newly designed for high-current applications such as electric powerassisted steering (EPS)

Automotive Devices / Analog Devices / Automotive Brushless Motor Driver ICs

3-phase BLDC Motor Pre-driver IC for Sine Wave Current Control: TB9080FG

This motor driver designed to allow silent motor operation, which is increasingly required to offer a quiet cabin fro HEVs and EVs and during idling stop.

Automotive Devices / Analog Devices / Automotive Brushless Motor Driver ICs

Sensorless 3-phase BLDC Motor Pre-driver IC: TB9061AFNG

Designed to be directly mountable on a motor with a few external parts.

技術議題

應用

Automotive Power Slide Door

Such as ensuring tolerance to motor lock current and reduction of power consumption are important in power sliding door. Toshiba provides information on a wide range of semiconductor products suitable for motor drive unit, power supply unit, etc., along with circuit configuration examples.

詳細資料

Automotive Electric Pump (Water/Oil)

Such as ensuring tolerance to motor lock current and reduction of power consumption are important in electric pump (water/oil). Toshiba provides information on a wide range of semiconductor products suitable for motor drive unit, power supply unit, etc., along with circuit configuration examples.

詳細資料

Automotive Radiator Fan

Such as ensuring tolerance to motor lock current and reduction of power consumption are important in designing radiator fan. Toshiba provides information on a wide range of semiconductor products suitable for motor drive units, communication units, etc., along with circuit configuration examples.

詳細資料

Transmission Management

Such as reduction of power consumption and miniaturization are important in designing transmission management. Toshiba provides information on a wide range of semiconductor products suitable for motor drive units, power supply units, mechanical relay drive units, etc., along with circuit configuration examples.

詳細資料

Automotive Integrated Starter Generator

Such as ensuring tolerance to motor lock current and reduction of power consumption are important in designing ISG. Toshiba provides information on a wide range of semiconductor products suitable for motor drive units, communication units, power supply units, etc., along with circuit configuration examples.

詳細資料

Automotive Electro Active Suspension

Such as reduction of power consumption and miniaturization are important in designing electro active suspension. Toshiba provides information on a wide range of semiconductor products suitable for motor drive units, power supply units, etc., along with circuit configuration examples.

詳細資料

Electric Power Steering

Such as ensuring tolerance to motor lock current and reduction of power consumption are important in designing electric power steering. Toshiba provides information on a wide range of semiconductor products suitable for motor drive units, power supply units, etc., along with circuit configuration examples.

詳細資料

Automotive HVAC

Such as ensuring tolerance to motor lock current and reduction of power consumption are important in designing HVAC. Toshiba provides information on a wide range of semiconductor products suitable for motor drive units, power supply units, etc., along with circuit configuration examples.

詳細資料

參考設計

Automotive 3kW 48V-12V Bidirectional DC-DC Converter

In recent years, xEV (hybrid-electric vehicles and battery-powered electric vehicles) are becoming popular to reduce greenhouse-gas emissions. The xEV may have a 48V battery inside in addition to a 12V battery to reduce electrical power loss.This design is a bidirectional DC-DC converter required for the applications which have the 48V battery and the 12V battery. It achieves high efficiency operation by using Toshiba's automotive MOSFETs which have low on-resistance and high heat dissipation.Design tips on each portion of the circuit, method of operation, and design information such as circuit diagrams and PCB patterns are available, please use them for your design.

詳細資料

Automotive Brushed DC Motor Control Circuit Using TB9103FTG

The Automotive Brushed DC Motor Control Circuit Using TB9103FTG can control two motors in half-bridge mode or one motor in H-bridge mode. The Motor can be controlled using onboard switches or an external MCU. This reference design provides design guide, data, and other contents.

詳細資料

Motor Driving Circuit for Automotive Body Electronics Using SmartMCD™

We developed an automotive body motor control circuit that supports sensorless vector control using SmartMCD™, a gate driver IC with a built-in microcontroller. This reference design provides explanations of design points of various circuits, design data, and usage methods.

詳細資料

Photo of Matrix LED Headlight

Matrix LED Headlight

This reference design provides design guide, data and other contents of LED Matrix Headlight. It controls the lighting of multiple LEDs independently according to the situation.

詳細資料
