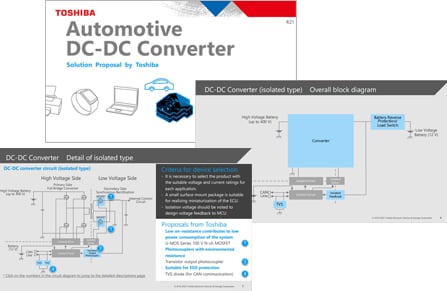

Automotive DC-DC Converter

Automotive DC-DC Converter

Such as reduction of power consumption and miniaturization are important in designing DC-DC converter. Toshiba provides information on a wide range of semiconductor products suitable for step-up or step-down DC-DC converter units, etc., along with circuit configuration examples.

總方塊圖

點選總方塊圖中要查看詳細資訊的區域。顯示我們建議的子方塊圖的連結。

 Low Voltage Battery (12 V) Low Voltage Battery (12 V) High Voltage Battery (up to 400 V) High Voltage Battery(up to 400 V) Battery Reverse Protection/ Load Switch Battery Reverse Protection/Load Switch CAN Line CANLine Battery (12 V) Battery(12 V) Control Circuit Control Circuit Isolated Feedback Isolated Feedback Isolated Driver Isolated Driver Isolated Driver Isolated Driver TVS TVS Converter Converter Power supply ON/OFF control and reverse connection protecting circuit DC-DC converter circuit
DC-DC converter circuit

Example of isolated full-bridge DC-DC converters

Power supply ON/OFF control and reverse connection protecting circuit

Example of ON/OFF control and reverse connection protecting circuit using N-ch MOSFET for 12 V power lines

Example of ON/OFF control and reverse connection protecting circuit using N-ch MOSFET for 48 V power lines

點選總方塊圖中要查看詳細資訊的區域。顯示我們建議的子方塊圖的連結。

 Low Voltage Line Low Voltage Line High Voltage Line High Voltage Line Battery Reverse Protection/ Load Switch Battery Reverse Protection/Load Switch Battery Reverse Protection/ Load Switch Battery Reverse Protection/Load Switch Converter Converter Power supply ON/OFF control and reverse connection protecting circuit Power supply ON/OFF control and reverse connection protecting circuit DC-DC converter circuit (non-isolated buck type)
DC-DC converter circuit (non-isolated buck type)

Example of non-isolated step-down DC-DC converters

Power supply ON/OFF control and reverse connection protecting circuit

Example of ON/OFF control and reverse connection protecting circuit using N-ch MOSFET for 12 V power lines

Example of ON/OFF control and reverse connection protecting circuit using N-ch MOSFET for 48 V power lines

點選總方塊圖中要查看詳細資訊的區域。顯示我們建議的子方塊圖的連結。

 High Voltage Line High Voltage Line Low Voltage Line Low Voltage Line Battery Reverse Protection/ Load Switch Battery Reverse Protection/Load Switch Battery Reverse Protection/ Load Switch Battery Reverse Protection/Load Switch Converter Converter Power supply ON/OFF control and reverse connection protecting circuit Power supply ON/OFF control and reverse connection protecting circuit DC-DC converter circuit (non-isolated boost type)
DC-DC converter circuit (non-isolated boost type)

Example of non-isolated boost DC-DC converters

Power supply ON/OFF control and reverse connection protecting circuit

Example of ON/OFF control and reverse connection protecting circuit using N-ch MOSFET for 12 V power lines

Example of ON/OFF control and reverse connection protecting circuit using N-ch MOSFET for 48 V power lines

子方塊圖

DC-DC converter circuit
DC-DC converter circuit (isolated type)

Example of isolated full-bridge DC-DC converters

Example of isolated full-bridge DC-DC converters
U-MOS Series 100V N-ch MOSFET(1)
器件型號
XPN1300ANC
TK60S10N1L
XPH4R10ANB
XPH6R30ANB
Toshiba Package Name TSON Advance(WF) DPAK+ SOP Advance(WF) SOP Advance(WF)
VDSS (Max) [V] 100 100 100 100
ID (Max) [A] 30 60 70 45
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0133 0.00611 0.0041 0.0063
Polarity N-ch N-ch N-ch N-ch
搜尋產品線
U-MOS Series 100V N-ch MOSFET(2)
器件型號
XPW4R10ANB
XPW6R30ANB
XPQ1R00AQB
Toshiba Package Name DSOP Advance(WF)L DSOP Advance(WF)M L-TOGL
VDSS (Max) [V] 100 100 100
ID (Max) [A] 70 45 300
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0041 0.0063 0.00103
Polarity N-ch N-ch N-ch
搜尋產品線
Transistor output photocoupler
器件型號
TLX9291A
TLX9185A
TLX9000
TLX9300
TLX9188
Toshiba Package Name SO4 4pin SO6 SO4 4pin SO6 4pin SO6
BVS (Min) [Vrms] @ t = 60 [s] 3750 3750 3750 3750 3750
VCEO (Max) [V] 80 80 40 40 200
Topr [°C] -40 to 125 -40 to 125 -40 to 125 -40 to 125 -40 to 125
搜尋產品線
TVS diode (for CAN communication)
器件型號
DF3D18FU
DF3D29FU
DF3D36FU
Toshiba Package Name SOT-323 (USM) SOT-323 (USM) SOT-323 (USM)
VESD (Max) [kV] +/-30 +/-25 +/-20
IR (Max) [µA] 0.1 0.1 0.1
Rdyn (Typ.) [Ω] 0.8 1.1 1.5
CT (Typ.) [pF] @ VR = 0 [V], f = 1 [MHz] 9 9 6.5
搜尋產品線
Power supply ON/OFF control and reverse connection protecting circuit
Power supply ON/OFF control and reverse connection protecting circuit (N-ch type 12 V)

Example of ON/OFF control and reverse connection protecting circuit using N-ch MOSFET for 12 V power lines

Example of ON/OFF control and reverse connection protecting circuit using N-ch MOSFET for 12 V power lines
U-MOS Series 40 V N-ch MOSFET
器件型號
XPN3R804NC
TK1R4S04PB
XPHR7904PS
TPWR7904PB
XPJR6604PB
XPQR3004PB
Toshiba Package Name TSON Advance(WF) DPAK+ SOP Advance(WF) DSOP Advance(WF)L S-TOGL L-TOGL
VDSS (Max) [V] 40 40 40 40 40 40
ID (Max) [A] 40 120 150 150 200 400
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0038 0.00135 0.00079 0.00079 0.00066 0.00030
Polarity N-ch N-ch N-ch N-ch N-ch N-ch
搜尋產品線
Gate driver (for switch)
器件型號
TPD7104AF
TPD7106F
TPD7107F
Toshiba Package name PS-8 SSOP16 WSON10A
VBB (Max) [V]
VCC (Max) [V]
IO (Max) [A] +5mA/ Internally Limited   Internally Limited /-5m
搜尋產品線
General purpose small signal MOSFET
器件型號
SSM3K7002KF
SSM3J168F
SSM3J66MFV
Toshiba Package Name SOT-346 (S-Mini) SOT-346 (S-Mini) SOT-723 (VESM)
VDSS (Max) [V] 60 -60 -20
ID (Max) [A] 0.4 -0.4 -0.8
RDS(ON) (Max) [Ω] @ |VGS| = 4.5 [V] 1.75 1.9 0.39
Polarity N-ch P-ch P-ch
搜尋產品線
General purpose small signal bipolar transistor
器件型號
2SA1832
2SC4738
2SC4116
2SA1586
2SC2712
2SA1162
Toshiba Package Name SOT-416 (SSM) SOT-416 (SSM) SOT-323 (USM) SOT-323 (USM) SOT-346 (S-Mini) SOT-346 (S-Mini)
VCEO (Max) [V] -50 50 50 -50 50 -50
IC (Max) [A] -0.15 0.15 0.15 -0.15 0.15 -0.15
Polarity PNP NPN NPN PNP NPN PNP
搜尋產品線
Small signal bias resistor built-in transistor (BRT)
器件型號
RN1907FE
RN2907FE
RN1901
RN2901
Toshiba Package Name SOT-563 (ES6) SOT-563 (ES6) SOT-363 (US6) SOT-363 (US6)
VCEO (Q1) (Max) [V] 50 -50 50 -50
VCEO (Q2) (Max) [V] 50 -50 50 -50
IC (Q1) (Max) [A] 0.1 -0.1 0.1 -0.1
IC (Q2) (Max) [A] 0.1 -0.1 0.1 -0.1
Polarity (Q1) NPN PNP NPN PNP
Polarity (Q2) NPN PNP NPN PNP
搜尋產品線
TVS diode (for CAN communication)
器件型號
DF3D18FU
DF3D29FU
DF3D36FU
Toshiba Package Name SOT-323 (USM) SOT-323 (USM) SOT-323 (USM)
VESD (Max) [kV] +/-30 +/-25 +/-20
IR (Max) [µA] 0.1 0.1 0.1
Rdyn (Typ.) [Ω] 0.8 1.1 1.5
CT (Typ.) [pF] @ VR = 0 [V], f = 1 [MHz] 9 9 6.5
搜尋產品線
Power supply ON/OFF control and reverse connection protecting circuit (N-ch type 48 V)

Example of ON/OFF control and reverse connection protecting circuit using N-ch MOSFET for 48 V power lines

Example of ON/OFF control and reverse connection protecting circuit using N-ch MOSFET for 48 V power lines
U-MOS Series 100V N-ch MOSFET(1)
器件型號
XPN1300ANC
TK60S10N1L
XPH4R10ANB
XPH6R30ANB
Toshiba Package Name TSON Advance(WF) DPAK+ SOP Advance(WF) SOP Advance(WF)
VDSS (Max) [V] 100 100 100 100
ID (Max) [A] 30 60 70 45
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0133 0.00611 0.0041 0.0063
Polarity N-ch N-ch N-ch N-ch
搜尋產品線
U-MOS Series 100V N-ch MOSFET(2)
器件型號
XPW4R10ANB
XPW6R30ANB
XPQ1R00AQB
Toshiba Package Name DSOP Advance(WF)L DSOP Advance(WF)M L-TOGL
VDSS (Max) [V] 100 100 100
ID (Max) [A] 70 45 300
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0041 0.0063 0.00103
Polarity N-ch N-ch N-ch
搜尋產品線
General purpose small signal MOSFET
器件型號
SSM3K7002KF
SSM3J168F
SSM3J66MFV
Toshiba Package Name SOT-346 (S-Mini) SOT-346 (S-Mini) SOT-723 (VESM)
VDSS (Max) [V] 60 -60 -20
ID (Max) [A] 0.4 -0.4 -0.8
RDS(ON) (Max) [Ω] @ |VGS| = 4.5 [V] 1.75 1.9 0.39
Polarity N-ch P-ch P-ch
搜尋產品線
General purpose small signal bipolar transistor
器件型號
2SA1832
2SC4738
2SC4116
2SA1586
2SC2712
2SA1162
Toshiba Package Name SOT-416 (SSM) SOT-416 (SSM) SOT-323 (USM) SOT-323 (USM) SOT-346 (S-Mini) SOT-346 (S-Mini)
VCEO (Max) [V] -50 50 50 -50 50 -50
IC (Max) [A] -0.15 0.15 0.15 -0.15 0.15 -0.15
Polarity PNP NPN NPN PNP NPN PNP
搜尋產品線
Small signal bias resistor built-in transistor (BRT)
器件型號
RN1907FE
RN2907FE
RN1901
RN2901
Toshiba Package Name SOT-563 (ES6) SOT-563 (ES6) SOT-363 (US6) SOT-363 (US6)
VCEO (Q1) (Max) [V] 50 -50 50 -50
VCEO (Q2) (Max) [V] 50 -50 50 -50
IC (Q1) (Max) [A] 0.1 -0.1 0.1 -0.1
IC (Q2) (Max) [A] 0.1 -0.1 0.1 -0.1
Polarity (Q1) NPN PNP NPN PNP
Polarity (Q2) NPN PNP NPN PNP
搜尋產品線
TVS diode (for CAN communication)
器件型號
DF3D18FU
DF3D29FU
DF3D36FU
Toshiba Package Name SOT-323 (USM) SOT-323 (USM) SOT-323 (USM)
VESD (Max) [kV] +/-30 +/-25 +/-20
IR (Max) [µA] 0.1 0.1 0.1
Rdyn (Typ.) [Ω] 0.8 1.1 1.5
CT (Typ.) [pF] @ VR = 0 [V], f = 1 [MHz] 9 9 6.5
搜尋產品線
DC-DC converter circuit (non-isolated buck type)
DC-DC converter circuit (non-isolated buck type)

Example of non-isolated step-down DC-DC converters

Example of non-isolated step-down DC-DC converters
U-MOS Series 100V N-ch MOSFET(1)
器件型號
XPN1300ANC
TK60S10N1L
XPH4R10ANB
XPH6R30ANB
Toshiba Package Name TSON Advance(WF) DPAK+ SOP Advance(WF) SOP Advance(WF)
VDSS (Max) [V] 100 100 100 100
ID (Max) [A] 30 60 70 45
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0133 0.00611 0.0041 0.0063
Polarity N-ch N-ch N-ch N-ch
搜尋產品線
U-MOS Series 100V N-ch MOSFET(2)
器件型號
XPW4R10ANB
XPW6R30ANB
XPQ1R00AQB
Toshiba Package Name DSOP Advance(WF)L DSOP Advance(WF)M L-TOGL
VDSS (Max) [V] 100 100 100
ID (Max) [A] 70 45 300
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0041 0.0063 0.00103
Polarity N-ch N-ch N-ch
搜尋產品線
U-MOS Series 60 V N-ch MOSFET
器件型號
XPN12006NC
XPN6R706NC
XPH3R206NC
XPH2R106NC
TK90S06N1L
Toshiba Package Name TSON Advance(WF) TSON Advance(WF) SOP Advance(WF) SOP Advance(WF) DPAK+
VDSS (Max) [V] 60 60 60 60 60
ID (Max) [A] 20 40 70 110 90
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0120 0.0067 0.0032 0.0021 0.0033
Polarity N-ch N-ch N-ch N-ch N-ch
搜尋產品線
U-MOS Series 40 V N-ch MOSFET
器件型號
XPN3R804NC
TK1R4S04PB
XPHR7904PS
TPWR7904PB
XPJR6604PB
XPQR3004PB
Toshiba Package Name TSON Advance(WF) DPAK+ SOP Advance(WF) DSOP Advance(WF)L S-TOGL L-TOGL
VDSS (Max) [V] 40 40 40 40 40 40
ID (Max) [A] 40 120 150 150 200 400
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0038 0.00135 0.00079 0.00079 0.00066 0.00030
Polarity N-ch N-ch N-ch N-ch N-ch N-ch
搜尋產品線
Power supply ON/OFF control and reverse connection protecting circuit
Power supply ON/OFF control and reverse connection protecting circuit (N-ch type 12 V)

Example of ON/OFF control and reverse connection protecting circuit using N-ch MOSFET for 12 V power lines

Example of ON/OFF control and reverse connection protecting circuit using N-ch MOSFET for 12 V power lines
U-MOS Series 40 V N-ch MOSFET
器件型號
XPN3R804NC
TK1R4S04PB
XPHR7904PS
TPWR7904PB
XPJR6604PB
XPQR3004PB
Toshiba Package Name TSON Advance(WF) DPAK+ SOP Advance(WF) DSOP Advance(WF)L S-TOGL L-TOGL
VDSS (Max) [V] 40 40 40 40 40 40
ID (Max) [A] 40 120 150 150 200 400
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0038 0.00135 0.00079 0.00079 0.00066 0.00030
Polarity N-ch N-ch N-ch N-ch N-ch N-ch
搜尋產品線
Gate driver (for switch)
器件型號
TPD7104AF
TPD7106F
TPD7107F
Toshiba Package name PS-8 SSOP16 WSON10A
VBB (Max) [V]
VCC (Max) [V]
IO (Max) [A] +5mA/ Internally Limited   Internally Limited /-5m
搜尋產品線
General purpose small signal MOSFET
器件型號
SSM3K7002KF
SSM3J168F
SSM3J66MFV
Toshiba Package Name SOT-346 (S-Mini) SOT-346 (S-Mini) SOT-723 (VESM)
VDSS (Max) [V] 60 -60 -20
ID (Max) [A] 0.4 -0.4 -0.8
RDS(ON) (Max) [Ω] @ |VGS| = 4.5 [V] 1.75 1.9 0.39
Polarity N-ch P-ch P-ch
搜尋產品線
General purpose small signal bipolar transistor
器件型號
2SA1832
2SC4738
2SC4116
2SA1586
2SC2712
2SA1162
Toshiba Package Name SOT-416 (SSM) SOT-416 (SSM) SOT-323 (USM) SOT-323 (USM) SOT-346 (S-Mini) SOT-346 (S-Mini)
VCEO (Max) [V] -50 50 50 -50 50 -50
IC (Max) [A] -0.15 0.15 0.15 -0.15 0.15 -0.15
Polarity PNP NPN NPN PNP NPN PNP
搜尋產品線
Small signal bias resistor built-in transistor (BRT)
器件型號
RN1907FE
RN2907FE
RN1901
RN2901
Toshiba Package Name SOT-563 (ES6) SOT-563 (ES6) SOT-363 (US6) SOT-363 (US6)
VCEO (Q1) (Max) [V] 50 -50 50 -50
VCEO (Q2) (Max) [V] 50 -50 50 -50
IC (Q1) (Max) [A] 0.1 -0.1 0.1 -0.1
IC (Q2) (Max) [A] 0.1 -0.1 0.1 -0.1
Polarity (Q1) NPN PNP NPN PNP
Polarity (Q2) NPN PNP NPN PNP
搜尋產品線
TVS diode (for CAN communication)
器件型號
DF3D18FU
DF3D29FU
DF3D36FU
Toshiba Package Name SOT-323 (USM) SOT-323 (USM) SOT-323 (USM)
VESD (Max) [kV] +/-30 +/-25 +/-20
IR (Max) [µA] 0.1 0.1 0.1
Rdyn (Typ.) [Ω] 0.8 1.1 1.5
CT (Typ.) [pF] @ VR = 0 [V], f = 1 [MHz] 9 9 6.5
搜尋產品線
Power supply ON/OFF control and reverse connection protecting circuit (N-ch type 48 V)

Example of ON/OFF control and reverse connection protecting circuit using N-ch MOSFET for 48 V power lines

Example of ON/OFF control and reverse connection protecting circuit using N-ch MOSFET for 48 V power lines
U-MOS Series 100V N-ch MOSFET(1)
器件型號
XPN1300ANC
TK60S10N1L
XPH4R10ANB
XPH6R30ANB
Toshiba Package Name TSON Advance(WF) DPAK+ SOP Advance(WF) SOP Advance(WF)
VDSS (Max) [V] 100 100 100 100
ID (Max) [A] 30 60 70 45
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0133 0.00611 0.0041 0.0063
Polarity N-ch N-ch N-ch N-ch
搜尋產品線
U-MOS Series 100V N-ch MOSFET(2)
器件型號
XPW4R10ANB
XPW6R30ANB
XPQ1R00AQB
Toshiba Package Name DSOP Advance(WF)L DSOP Advance(WF)M L-TOGL
VDSS (Max) [V] 100 100 100
ID (Max) [A] 70 45 300
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0041 0.0063 0.00103
Polarity N-ch N-ch N-ch
搜尋產品線
General purpose small signal MOSFET
器件型號
SSM3K7002KF
SSM3J168F
SSM3J66MFV
Toshiba Package Name SOT-346 (S-Mini) SOT-346 (S-Mini) SOT-723 (VESM)
VDSS (Max) [V] 60 -60 -20
ID (Max) [A] 0.4 -0.4 -0.8
RDS(ON) (Max) [Ω] @ |VGS| = 4.5 [V] 1.75 1.9 0.39
Polarity N-ch P-ch P-ch
搜尋產品線
General purpose small signal bipolar transistor
器件型號
2SA1832
2SC4738
2SC4116
2SA1586
2SC2712
2SA1162
Toshiba Package Name SOT-416 (SSM) SOT-416 (SSM) SOT-323 (USM) SOT-323 (USM) SOT-346 (S-Mini) SOT-346 (S-Mini)
VCEO (Max) [V] -50 50 50 -50 50 -50
IC (Max) [A] -0.15 0.15 0.15 -0.15 0.15 -0.15
Polarity PNP NPN NPN PNP NPN PNP
搜尋產品線
Small signal bias resistor built-in transistor (BRT)
器件型號
RN1907FE
RN2907FE
RN1901
RN2901
Toshiba Package Name SOT-563 (ES6) SOT-563 (ES6) SOT-363 (US6) SOT-363 (US6)
VCEO (Q1) (Max) [V] 50 -50 50 -50
VCEO (Q2) (Max) [V] 50 -50 50 -50
IC (Q1) (Max) [A] 0.1 -0.1 0.1 -0.1
IC (Q2) (Max) [A] 0.1 -0.1 0.1 -0.1
Polarity (Q1) NPN PNP NPN PNP
Polarity (Q2) NPN PNP NPN PNP
搜尋產品線
TVS diode (for CAN communication)
器件型號
DF3D18FU
DF3D29FU
DF3D36FU
Toshiba Package Name SOT-323 (USM) SOT-323 (USM) SOT-323 (USM)
VESD (Max) [kV] +/-30 +/-25 +/-20
IR (Max) [µA] 0.1 0.1 0.1
Rdyn (Typ.) [Ω] 0.8 1.1 1.5
CT (Typ.) [pF] @ VR = 0 [V], f = 1 [MHz] 9 9 6.5
搜尋產品線
DC-DC converter circuit (non-isolated boost type)
DC-DC converter circuit (non-isolated boost type)

Example of non-isolated boost DC-DC converters

Example of non-isolated boost DC-DC converters
U-MOS Series 100V N-ch MOSFET(1)
器件型號
XPN1300ANC
TK60S10N1L
XPH4R10ANB
XPH6R30ANB
Toshiba Package Name TSON Advance(WF) DPAK+ SOP Advance(WF) SOP Advance(WF)
VDSS (Max) [V] 100 100 100 100
ID (Max) [A] 30 60 70 45
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0133 0.00611 0.0041 0.0063
Polarity N-ch N-ch N-ch N-ch
搜尋產品線
U-MOS Series 100V N-ch MOSFET(2)
器件型號
XPW4R10ANB
XPW6R30ANB
XPQ1R00AQB
Toshiba Package Name DSOP Advance(WF)L DSOP Advance(WF)M L-TOGL
VDSS (Max) [V] 100 100 100
ID (Max) [A] 70 45 300
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0041 0.0063 0.00103
Polarity N-ch N-ch N-ch
搜尋產品線
U-MOS Series 60 V N-ch MOSFET
器件型號
XPN12006NC
XPN6R706NC
XPH3R206NC
XPH2R106NC
TK90S06N1L
Toshiba Package Name TSON Advance(WF) TSON Advance(WF) SOP Advance(WF) SOP Advance(WF) DPAK+
VDSS (Max) [V] 60 60 60 60 60
ID (Max) [A] 20 40 70 110 90
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0120 0.0067 0.0032 0.0021 0.0033
Polarity N-ch N-ch N-ch N-ch N-ch
搜尋產品線
U-MOS Series 40 V N-ch MOSFET
器件型號
XPN3R804NC
TK1R4S04PB
XPHR7904PS
TPWR7904PB
XPJR6604PB
XPQR3004PB
Toshiba Package Name TSON Advance(WF) DPAK+ SOP Advance(WF) DSOP Advance(WF)L S-TOGL L-TOGL
VDSS (Max) [V] 40 40 40 40 40 40
ID (Max) [A] 40 120 150 150 200 400
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0038 0.00135 0.00079 0.00079 0.00066 0.00030
Polarity N-ch N-ch N-ch N-ch N-ch N-ch
搜尋產品線
Power supply ON/OFF control and reverse connection protecting circuit
Power supply ON/OFF control and reverse connection protecting circuit (N-ch type 12 V)

Example of ON/OFF control and reverse connection protecting circuit using N-ch MOSFET for 12 V power lines

Example of ON/OFF control and reverse connection protecting circuit using N-ch MOSFET for 12 V power lines
U-MOS Series 40 V N-ch MOSFET
器件型號
XPN3R804NC
TK1R4S04PB
XPHR7904PS
TPWR7904PB
XPJR6604PB
XPQR3004PB
Toshiba Package Name TSON Advance(WF) DPAK+ SOP Advance(WF) DSOP Advance(WF)L S-TOGL L-TOGL
VDSS (Max) [V] 40 40 40 40 40 40
ID (Max) [A] 40 120 150 150 200 400
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0038 0.00135 0.00079 0.00079 0.00066 0.00030
Polarity N-ch N-ch N-ch N-ch N-ch N-ch
搜尋產品線
Gate driver (for switch)
器件型號
TPD7104AF
TPD7106F
TPD7107F
Toshiba Package name PS-8 SSOP16 WSON10A
VBB (Max) [V]
VCC (Max) [V]
IO (Max) [A] +5mA/ Internally Limited   Internally Limited /-5m
搜尋產品線
General purpose small signal MOSFET
器件型號
SSM3K7002KF
SSM3J168F
SSM3J66MFV
Toshiba Package Name SOT-346 (S-Mini) SOT-346 (S-Mini) SOT-723 (VESM)
VDSS (Max) [V] 60 -60 -20
ID (Max) [A] 0.4 -0.4 -0.8
RDS(ON) (Max) [Ω] @ |VGS| = 4.5 [V] 1.75 1.9 0.39
Polarity N-ch P-ch P-ch
搜尋產品線
General purpose small signal bipolar transistor
器件型號
2SA1832
2SC4738
2SC4116
2SA1586
2SC2712
2SA1162
Toshiba Package Name SOT-416 (SSM) SOT-416 (SSM) SOT-323 (USM) SOT-323 (USM) SOT-346 (S-Mini) SOT-346 (S-Mini)
VCEO (Max) [V] -50 50 50 -50 50 -50
IC (Max) [A] -0.15 0.15 0.15 -0.15 0.15 -0.15
Polarity PNP NPN NPN PNP NPN PNP
搜尋產品線
Small signal bias resistor built-in transistor (BRT)
器件型號
RN1907FE
RN2907FE
RN1901
RN2901
Toshiba Package Name SOT-563 (ES6) SOT-563 (ES6) SOT-363 (US6) SOT-363 (US6)
VCEO (Q1) (Max) [V] 50 -50 50 -50
VCEO (Q2) (Max) [V] 50 -50 50 -50
IC (Q1) (Max) [A] 0.1 -0.1 0.1 -0.1
IC (Q2) (Max) [A] 0.1 -0.1 0.1 -0.1
Polarity (Q1) NPN PNP NPN PNP
Polarity (Q2) NPN PNP NPN PNP
搜尋產品線
TVS diode (for CAN communication)
器件型號
DF3D18FU
DF3D29FU
DF3D36FU
Toshiba Package Name SOT-323 (USM) SOT-323 (USM) SOT-323 (USM)
VESD (Max) [kV] +/-30 +/-25 +/-20
IR (Max) [µA] 0.1 0.1 0.1
Rdyn (Typ.) [Ω] 0.8 1.1 1.5
CT (Typ.) [pF] @ VR = 0 [V], f = 1 [MHz] 9 9 6.5
搜尋產品線
Power supply ON/OFF control and reverse connection protecting circuit (N-ch type 48 V)

Example of ON/OFF control and reverse connection protecting circuit using N-ch MOSFET for 48 V power lines

Example of ON/OFF control and reverse connection protecting circuit using N-ch MOSFET for 48 V power lines
U-MOS Series 100V N-ch MOSFET(1)
器件型號
XPN1300ANC
TK60S10N1L
XPH4R10ANB
XPH6R30ANB
Toshiba Package Name TSON Advance(WF) DPAK+ SOP Advance(WF) SOP Advance(WF)
VDSS (Max) [V] 100 100 100 100
ID (Max) [A] 30 60 70 45
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0133 0.00611 0.0041 0.0063
Polarity N-ch N-ch N-ch N-ch
搜尋產品線
U-MOS Series 100V N-ch MOSFET(2)
器件型號
XPW4R10ANB
XPW6R30ANB
XPQ1R00AQB
Toshiba Package Name DSOP Advance(WF)L DSOP Advance(WF)M L-TOGL
VDSS (Max) [V] 100 100 100
ID (Max) [A] 70 45 300
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0041 0.0063 0.00103
Polarity N-ch N-ch N-ch
搜尋產品線
General purpose small signal MOSFET
器件型號
SSM3K7002KF
SSM3J168F
SSM3J66MFV
Toshiba Package Name SOT-346 (S-Mini) SOT-346 (S-Mini) SOT-723 (VESM)
VDSS (Max) [V] 60 -60 -20
ID (Max) [A] 0.4 -0.4 -0.8
RDS(ON) (Max) [Ω] @ |VGS| = 4.5 [V] 1.75 1.9 0.39
Polarity N-ch P-ch P-ch
搜尋產品線
General purpose small signal bipolar transistor
器件型號
2SA1832
2SC4738
2SC4116
2SA1586
2SC2712
2SA1162
Toshiba Package Name SOT-416 (SSM) SOT-416 (SSM) SOT-323 (USM) SOT-323 (USM) SOT-346 (S-Mini) SOT-346 (S-Mini)
VCEO (Max) [V] -50 50 50 -50 50 -50
IC (Max) [A] -0.15 0.15 0.15 -0.15 0.15 -0.15
Polarity PNP NPN NPN PNP NPN PNP
搜尋產品線
Small signal bias resistor built-in transistor (BRT)
器件型號
RN1907FE
RN2907FE
RN1901
RN2901
Toshiba Package Name SOT-563 (ES6) SOT-563 (ES6) SOT-363 (US6) SOT-363 (US6)
VCEO (Q1) (Max) [V] 50 -50 50 -50
VCEO (Q2) (Max) [V] 50 -50 50 -50
IC (Q1) (Max) [A] 0.1 -0.1 0.1 -0.1
IC (Q2) (Max) [A] 0.1 -0.1 0.1 -0.1
Polarity (Q1) NPN PNP NPN PNP
Polarity (Q2) NPN PNP NPN PNP
搜尋產品線
TVS diode (for CAN communication)
器件型號
DF3D18FU
DF3D29FU
DF3D36FU
Toshiba Package Name SOT-323 (USM) SOT-323 (USM) SOT-323 (USM)
VESD (Max) [kV] +/-30 +/-25 +/-20
IR (Max) [µA] 0.1 0.1 0.1
Rdyn (Typ.) [Ω] 0.8 1.1 1.5
CT (Typ.) [pF] @ VR = 0 [V], f = 1 [MHz] 9 9 6.5
搜尋產品線

解決方案

這些文件說明推薦的半導體產品的要點及其特徵，方便產品選擇。

解決方案
SolutionProposal_Automotive DC-DC Converter / English (PDF:1.1MB)
SolutionProposal_Automotive DC-DC Converter / Japanese (PDF:1.5MB)

參考設計

Automotive Buck-Boost DC-DC Converter for USB PD
This reference design provides design guide, data and other contents of Automotive Buck-Boost DC-DC Converter for USB PD.
詳細資料

文件

其他文件請參閱以下頁面。

開發/設計支援

交換式電源供應器工具庫

您可以按照實際需求選擇並下載電源設備的各種基本topologies，以便在模擬環境中驗證MOSFET的性能。

交換式電源供應器工具庫
馬達控制和驅動電路的線上模擬資料庫

您可以根據實際要求選擇和下載馬達驅動IC的各種基本拓撲結構，例如3相逆變器電路，以驗證MOSFET和其他元件在您的模擬環境中的性能。

馬達控制和驅動電路的線上模擬資料庫
EDA/CAD 模型庫

我們提供開發產品板時所使用的模擬資料、封裝的 3D 模型以及焊盤圖案模型（2D 模型）。

EDA/CAD 模型庫
MCU Motor Studio

MCU Motor Studio 具有專用於東芝 TXZ+TM系列高階微控制器的 PC 工具和馬達控制韌體。

MCU Motor Studio
東芝電子報訂閱
東芝電子報訂閱
請填寫訂閱表格 ，即可收到有關東芝產品的最新消息! 歡迎訂閱!
了解更多

聯繫我們

技術方面問題

聯絡我們

聯絡我們

常見問題

常見問答
  • S-TOGLTM and L-TOGLTM are trademarks of Toshiba Electronic Devices & Storage Corporation.
  • All other company names, product names, and service names may be trademarks of their respective companies.
開啟新視窗
