Air Conditioner

Air Conditioner

Such as efficiency of motor driving, low power consumption and miniaturization are important in designing air conditioner. Toshiba provides information on a wide range of semiconductor products suitable for power sullpy units, motor driving units, control units, sensor signal input units, etc., along with circuit configuration examples.

總方塊圖

點選總方塊圖中要查看詳細資訊的區域。顯示我們建議的子方塊圖的連結。

 MCU MCU Keys Keys Key Input Key Input Sensor Input Sensor Input TVS TVS M M M M M M Indoor Fan Indoor Fan Louvers Louvers Cleaning Unit Cleaning Unit LED LED Motor Controller Motor Controller IPD IPD Motor Driver Motor Driver Motor Driver Motor Driver MCU MCU M M M M Outdoor Fan Outdoor Fan Compressor Compressor IPD IPD Triac Triac 2Way Valve/ 4Way Valve 2Way Valve/4Way Valve Gate Driver Gate Driver Sensor Input Sensor Input Temp. sensor Temp.sensor Isolation Isolation LED Driver LED Driver Brushless Brushless Brushless / Stepping Brushless / Stepping Brushed / Stepping Brushed / Stepping Brushless Brushless Brushless Brushless Isolation Isolation Dust Sensor Dust Sensor Indoor Indoor Unit Unit Outdoor Outdoor Unit Unit MOSFET MOSFET Valve Control Valve Control Op-amp Op-amp Op-amp Op-amp Logic / Motor Power Logic / Motor Power AC-DC /PFC AC-DC/PFC Power Management Power Management Logic / Motor Power Logic / Motor Power AC-DC /PFC AC-DC/PFC Power Management Power Management Pyroelectric Infrared Sensor Pyroelectric Infrared Sensor Op-amp Op-amp Temperature Sensor Temperature Sensor Op-amp Op-amp Humidity Sensor HumiditySensor Op-amp Op-amp Ambient Light Sensor Ambient Light Sensor Op-amp Op-amp Power Management（Indoor Unit） Key input circuit Ambient light sensor circuit Humidity sensor circuit Temperature sensor circuit Human sensor circuit Dust sensor circuit Fan section (Indoor Unit) Louver section Cleaning section Isolation circuit(Between outdoor and indoor units)
Power Management (Indoor Unit)

Example of Flyback AC-DC converter circuit for indoor unit

Example of active type PFC circuit

Example of partical switching type PFC circuit

Fan section (Indoor Unit)

Examples of peripheral circuits for fans using HV-IPDs

Examples of peripheral circuits for fans using MCD (controller) ＋ HV-IPD

Examples of peripheral circuits for fans using MCU (Three-phase motor controller) ＋ HV-IPD

Cleaning section

Example of stepping motor drive circuit using MCD (controller)

Louver section

Example of brushed/stepping motor drive circuit using transistor array

Isolation circuit (Between outdoor and indoor units)

Example of a protection circuit using a photocoupler that protects against noise applied from a harness between board communication

Dust sensor circuit

Example of the circuit using operational amplifier for amplifying dust sensor signal

Human sensor circuit

Example of the circuit using operational amplifier for amplifying human sensor signal

Temperature sensor circuit

Example of the circuit using operational amplifier for amplifying temperature sensor signal

Humidity sensor circuit

Example of the circuit using operational amplifier for amplifying humidity sensor signal

Ambient light sensor circuit

Example of the circuit using operational amplifier for amplifying ambient light sensor signal

Key input circuit

Example of key input circuit using TVS diode for electrostatic protection

點選總方塊圖中要查看詳細資訊的區域。顯示我們建議的子方塊圖的連結。

 MCU MCU Keys Keys Key Input Key Input Sensor Input Sensor Input TVS TVS M M M M M M Indoor Fan Indoor Fan Louvers Louvers Cleaning Unit Cleaning Unit LED LED Motor Controller Motor Controller IPD IPD Motor Driver Motor Driver Motor Driver Motor Driver MCU MCU M M M M Outdoor Fan Outdoor Fan Compressor Compressor IPD IPD Triac Triac 2Way Valve/ 4Way Valve 2Way Valve/4Way Valve Gate Driver Gate Driver Sensor Input Sensor Input Temp. sensor Temp.sensor Isolation Isolation LED Driver LED Driver Brushless Brushless Brushless / Stepping Brushless / Stepping Brushed / Stepping Brushed / Stepping Brushless Brushless Brushless Brushless Isolation Isolation Dust Sensor Dust Sensor Indoor Indoor Unit Unit Outdoor Outdoor Unit Unit MOSFET MOSFET Valve Control Valve Control Op-amp Op-amp Op-amp Op-amp Logic / Motor Power Logic / Motor Power 長方形 AC-DC /PFC AC-DC/PFC Power Management Power Management Logic / Motor Power Logic / Motor Power AC-DC /PFC AC-DC/PFC Power Management Power Management Pyroelectric Infrared Sensor Pyroelectric Infrared Sensor Op-amp Op-amp Temperature Sensor Temperature Sensor Op-amp Op-amp Humidity Sensor HumiditySensor Op-amp Op-amp Ambient Light Sensor Ambient Light Sensor Op-amp Op-amp Power Management (Outdoor Unit) Isolation circuit (Between outdoor and indoor units) Power control block(Outdoor Unit) Fan section(Outdoor Unit) Compressor section Valve control section
Power Management (Outdoor Unit)

Example of Flyback AC-DC converter circuit for outdoor unit

Example of active type PFC circuit

Example of partical switching type PFC circuit

Microcontroller section(Outdoor Unit)

Example of a power supply circuit for MCU using LDO

Fan section(Outdoor Unit)

Examples of peripheral circuits for fans using HV-IPDs

Examples of peripheral circuits for fans using MCD (controller) ＋ HV-IPD

Examples of peripheral circuits for fans using MCU (Three-phase motor controller) ＋ HV-IPD

Compressor section

Example of compressor drive circuits using MOSFETs

Valve control section

Example of valve control circuit using MCU

Isolation circuit (Between outdoor and indoor units)

Example of a protection circuit using a photocoupler that protects against noise applied from a harness between board communication

子方塊圖

Power Management (Indoor Unit)
AC-DC converter circuit (Indoor unit)

Example of Flyback AC-DC converter circuit for indoor unit

Example of Flyback AC-DC converter circuit for indoor unit
π-MOSⅧ Series MOSFET
器件型號
TK6A80E
TK10A80E
TK9J90E
Toshiba Package Name TO-220SIS TO-220SIS TO-3P(N)
VDSS (Max) [V] 800 800 900
ID (Max) [A] 6.0 10 9.0
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 1.7 1.0 1.3
Polarity N-ch N-ch N-ch
搜尋產品線
Transistor output photocoupler
器件型號
TLP383
TLP293
TLP385
Toshiba Package Name 4pin SO6L SO4 4pin SO6L
BVS (Min) [Vrms] @ t = 60 [s] 5000 3750 5000
VCEO (Max) [V] 80 80 80
Topr [°C] -55 to 125 -55 to 125 -55 to 110
搜尋產品線
Small surface mount LDO regulator(1)
器件型號
TCR15AG Series
TCR13AG Series
TCR8BM Series
TCR5BM Series
Toshiba Package Name WCSP6F WCSP6F DFN5B DFN5B
IOUT (Max) [mA] 1500 1300 800 500
VOUT [V] 0.6 to 3.6 0.55 to 3.6 0.8 to 3.6 0.8 to 3.6
搜尋產品線
Small surface mount LDO regulator(2)
器件型號
TCR5RG Series
TCR3RM Series
TCR3U Series
TCR2L Series
TAR5 Series
Toshiba Package Name WCSP4F DFN4F WCSP4F SOT-553 (ESV) SOT-25 (SMV)
IOUT (Max) [mA] 500 300 300 200 200
VOUT [V] 0.9 to 5.0 0.9 to 4.5 0.8 to 5.0 0.8 to 3.6 1.5 to 5.0
搜尋產品線
PFC circuit (Active type)

Example of active type PFC circuit

Example of active type PFC circuit
TXZ+TM 4A Series M4K Group / TX04 Series M470 Group / TX03 Series M370 Group
Series TXZ+TM 4A Series TX04 Series TX03 Series
Group M4K Group M470 Group M370 Group
搜尋產品線
DTMOSⅥ Series MOSFET
器件型號
TK065U65Z
TK040N65Z
Toshiba Package Name TOLL TO-247
VDSS (Max) [V] 650 650
ID (Max) [A] 38 57
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.065 0.04
Polarity N-ch N-ch
搜尋產品線
Discrete IGBT
器件型號
GT50JR22
GT30J122A
GT50J123
GT30J65MRB
Toshiba Package Name TO-3P(N) TO-3P(N) TO-3P(N) TO-3P(N)
VCES (Max) [V] 600 600 600 650
IC (Max) [A] 50 30 59 60
搜尋產品線
PFC circuit (Partical switching type)

Example of partical switching type PFC circuit

Example of partical switching type PFC circuit
TXZ+TM 4A Series M4K Group / TX04 Series M470 Group / TX03 Series M370 Group
Series TXZ+TM 4A Series TX04 Series TX03 Series
Group M4K Group M470 Group M370 Group
搜尋產品線
Discrete IGBT
器件型號
GT50JR22
GT30J122A
GT50J123
GT30J65MRB
Toshiba Package Name TO-3P(N) TO-3P(N) TO-3P(N) TO-3P(N)
VCES (Max) [V] 600 600 600 650
IC (Max) [A] 50 30 59 60
搜尋產品線
Fan section (Indoor Unit)

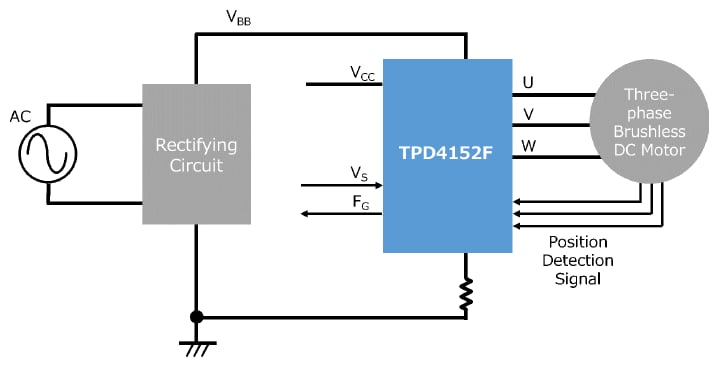

Fan section (indoor/outdoor units)　High voltage IPD

Examples of peripheral circuits for fans using HV-IPDs

Examples of peripheral circuits for fans using HV-IPDs
TXZ+TM 4A Series M4K Group / TX04 Series M470 Group / TX03 Series M370 Group
Series TXZ+TM 4A Series TX04 Series TX03 Series
Group M4K Group M470 Group M370 Group
搜尋產品線
TXZ+TM 3A Series M3H Group
Series TXZ+TM 3A Series
Group M3H Group
搜尋產品線
High Voltage IPD
器件型號
TPD4162F
Toshiba Package name HSSOP31
VBB (Max) [V] 600
VCC (Max) [V] 20
IO (Max) [A] 0.7
搜尋產品線

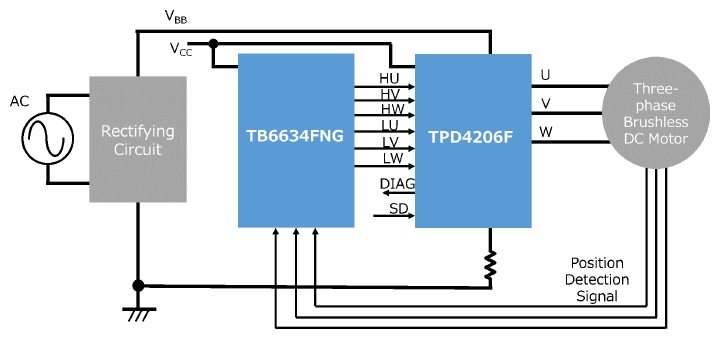

Fan section (indoor/outdoor units)　MCD (controller) ＋ high voltage IPD

Examples of peripheral circuits for fans using MCD (controller) ＋ HV-IPD

Examples of peripheral circuits for fans using MCD (controller) ＋ HV-IPD
TXZ+TM 4A Series M4K Group / TX04 Series M470 Group / TX03 Series M370 Group
Series TXZ+TM 4A Series TX04 Series TX03 Series
Group M4K Group M470 Group M370 Group
搜尋產品線
TXZ+TM 3A Series M3H Group
Series TXZ+TM 3A Series
Group M3H Group
搜尋產品線
Three-phase brushless DC motor controller
器件型號
TC78B041FNG
TC78B042FTG
TB6584FNG
TB6584AFNG
TB6634FNG
Toshiba Package Name SSOP30-P-300-0.65 P-VQFN32-0505-0.50-005 SSOP30-P-300-0.65 SSOP30-P-300-0.65 SSOP30-P-300-0.65
VOUT (Max) [V] 18 18 18 18 18
IOUT (Max) [A] 0.002 0.002 0.002 0.002 0.002
VM [V] 6 to 16.5 6 to 16.5 6 to 16.5 6 to 16.5 6 to 16.5
RON (Typ.) [Ω]
搜尋產品線
Three-phase brushless DC motor driver
器件型號
TB67B000AHG
TB67B000AFG
Toshiba Package Name P-HDIP30-1233-1.78-001 P-HSSOP34-0918-0.80-001
VOUT (Max) [V] 600 600
IOUT (Max) [A] 2 2
VM [V] 50 to 450 50 to 450
RON (Typ.) [Ω]
搜尋產品線
High voltage IPD
器件型號
TPD4204F
TPD4163F
TPD4164F
TPD4163K
TPD4164K
Toshiba Package name SSOP30 HSSOP31 HSSOP31 HDIP30 HDIP30
VBB (Max) [V] 600 600 600 600 600
VCC (Max) [V] 18 20 20 20 20
IO (Max) [A] 2.5 1 2 1 2
搜尋產品線
Fan section (indoor/outdoor units)　MCU (Three-phase motor controller) ＋ high voltage IPD

Examples of peripheral circuits for fans using MCU (Three-phase motor controller) ＋ HV-IPD

Examples of peripheral circuits for fans using MCU (Three-phase motor controller) ＋ HV-IPD
TXZ+TM 4A Series M4K Group / TX04 Series M470 Group / TX03 Series M370 Group
Series TXZ+TM 4A Series TX04 Series TX03 Series
Group M4K Group M470 Group M370 Group
搜尋產品線
TXZ+TM 3A Series M3H Group
Series TXZ+TM 3A Series
Group M3H Group
搜尋產品線
High voltage IPD
器件型號
TPD4204F
TPD4163F
TPD4164F
TPD4163K
TPD4164K
Toshiba Package name SSOP30 HSSOP31 HSSOP31 HDIP30 HDIP30
VBB (Max) [V] 600 600 600 600 600
VCC (Max) [V] 18 20 20 20 20
IO (Max) [A] 2.5 1 2 1 2
搜尋產品線
Cleaning section
Cleaning section

Example of stepping motor drive circuit using MCD (controller)

Example of stepping motor drive circuit using MCD (controller)
Stepping motor
器件型號
TC78H621FNG
Toshiba Package Name P-TSSOP16-0505-0.65-001
VOUT (Max) [V] 18
IOUT (Max) [A] 1.1
VM [V] 2.5 to 15
RON (Typ.) [Ω] 0.8
搜尋產品線
Brushed DC motor driver
器件型號
TC78H660FNG
TC78H660FTG
Toshiba Package Name P-TSSOP16-0505-0.65-001 P-VQFN16-0303-0.50-001
VOUT (Max) [V] 18 18
IOUT (Max) [A] 2.0 2.0
VM [V] 2.5 to 16 2.5 to 16
RON(Normal) (Typ.) [Ω] 0.48 0.48
RON(Large) (Typ.) [Ω]
搜尋產品線
TXZ+TM 3A Series M3H Group
Series TXZ+TM 3A Series
Group M3H Group
搜尋產品線
Transistor array
器件型號
TBD62003AFWG
TBD62083AFG
TBD62064AFAG
Toshiba Package Name SOL16 SOP18-P-375-1.27 P-SSOP24-0613-1.00-001
Number of Circuits 7 8 4
IOUT (Max) [mA/ch] 500 500 1500
搜尋產品線
Louver section
Louver section

Example of brushed/stepping motor drive circuit using transistor array

Example of brushed/stepping motor drive circuit using transistor array
TXZ+TM 3A Series M3H Group
Series TXZ+TM 3A Series
Group M3H Group
搜尋產品線
Transistor array
器件型號
TBD62003AFWG
TBD62083AFG
TBD62064AFAG
Toshiba Package Name SOL16 SOP18-P-375-1.27 P-SSOP24-0613-1.00-001
Number of Circuits 7 8 4
IOUT (Max) [mA/ch] 500 500 1500
搜尋產品線
Isolation circuit (Between outdoor and indoor units)
Isolation circuit (Between outdoor and indoor units)

Example of a protection circuit using a photocoupler that protects against noise applied from a harness between board communication

Example of a protection circuit using a photocoupler that protects against noise applied from a harness between board communication
TXZ+TM 4A Series M4K Group / TX04 Series M470 Group / TX03 Series M370 Group
Series TXZ+TM 4A Series TX04 Series TX03 Series
Group M4K Group M470 Group M370 Group
搜尋產品線
TXZ+TM 3A Series M3H Group
Series TXZ+TM 3A Series
Group M3H Group
搜尋產品線
Transistor output photocoupler
器件型號
TLP383
TLP293
TLP385
Toshiba Package Name 4pin SO6L SO4 4pin SO6L
BVS (Min) [Vrms] @ t = 60 [s] 5000 3750 5000
VCEO (Max) [V] 80 80 80
Topr [°C] -55 to 125 -55 to 125 -55 to 110
搜尋產品線
Dust sensor circuit
Dust sensor circuit

Example of the circuit using operational amplifier for amplifying dust sensor signal

Example of the circuit using operational amplifier for amplifying dust sensor signal
Small surface mount LDO regulator(1)
器件型號
TCR15AG Series
TCR13AG Series
TCR8BM Series
TCR5BM Series
Toshiba Package Name WCSP6F WCSP6F DFN5B DFN5B
IOUT (Max) [mA] 1500 1300 800 500
VOUT [V] 0.6 to 3.6 0.55 to 3.6 0.8 to 3.6 0.8 to 3.6
搜尋產品線
Small surface mount LDO regulator(2)
器件型號
TCR5RG Series
TCR3RM Series
TCR3U Series
TCR2L Series
TAR5 Series
Toshiba Package Name WCSP4F DFN4F WCSP4F SOT-553 (ESV) SOT-25 (SMV)
IOUT (Max) [mA] 500 300 300 200 200
VOUT [V] 0.9 to 5.0 0.9 to 4.5 0.8 to 5.0 0.8 to 3.6 1.5 to 5.0
搜尋產品線
Low current consumption op-amp / Low noise op-amp
器件型號
TC75S102F
TC75S67TU
Toshiba Package Name SOT-25 (SMV) SOT-353F (UFV)
VCC (Max) [V] 5.5 5.5
VCC, VEE (Max) [V] +/-2.75 +/-2.75
搜尋產品線
Human sensor circuit
Human sensor circuit

Example of the circuit using operational amplifier for amplifying human sensor signal

Example of the circuit using operational amplifier for amplifying human sensor signal
Small surface mount LDO regulator(1)
器件型號
TCR15AG Series
TCR13AG Series
TCR8BM Series
TCR5BM Series
Toshiba Package Name WCSP6F WCSP6F DFN5B DFN5B
IOUT (Max) [mA] 1500 1300 800 500
VOUT [V] 0.6 to 3.6 0.55 to 3.6 0.8 to 3.6 0.8 to 3.6
搜尋產品線
Small surface mount LDO regulator(2)
器件型號
TCR5RG Series
TCR3RM Series
TCR3U Series
TCR2L Series
TAR5 Series
Toshiba Package Name WCSP4F DFN4F WCSP4F SOT-553 (ESV) SOT-25 (SMV)
IOUT (Max) [mA] 500 300 300 200 200
VOUT [V] 0.9 to 5.0 0.9 to 4.5 0.8 to 5.0 0.8 to 3.6 1.5 to 5.0
搜尋產品線
Low current consumption op-amp / Low noise op-amp
器件型號
TC75S102F
TC75S67TU
Toshiba Package Name SOT-25 (SMV) SOT-353F (UFV)
VCC (Max) [V] 5.5 5.5
VCC, VEE (Max) [V] +/-2.75 +/-2.75
搜尋產品線
Temperature sensor circuit
Temperature sensor circuit

Example of the circuit using operational amplifier for amplifying temperature sensor signal

Example of the circuit using operational amplifier for amplifying temperature sensor signal
Small surface mount LDO regulator(1)
器件型號
TCR15AG Series
TCR13AG Series
TCR8BM Series
TCR5BM Series
Toshiba Package Name WCSP6F WCSP6F DFN5B DFN5B
IOUT (Max) [mA] 1500 1300 800 500
VOUT [V] 0.6 to 3.6 0.55 to 3.6 0.8 to 3.6 0.8 to 3.6
搜尋產品線
Small surface mount LDO regulator(2)
器件型號
TCR5RG Series
TCR3RM Series
TCR3U Series
TCR2L Series
TAR5 Series
Toshiba Package Name WCSP4F DFN4F WCSP4F SOT-553 (ESV) SOT-25 (SMV)
IOUT (Max) [mA] 500 300 300 200 200
VOUT [V] 0.9 to 5.0 0.9 to 4.5 0.8 to 5.0 0.8 to 3.6 1.5 to 5.0
搜尋產品線
Low current consumption op-amp / Low noise op-amp
器件型號
TC75S102F
TC75S67TU
Toshiba Package Name SOT-25 (SMV) SOT-353F (UFV)
VCC (Max) [V] 5.5 5.5
VCC, VEE (Max) [V] +/-2.75 +/-2.75
搜尋產品線
Humidity sensor circuit
Humidity sensor circuit

Example of the circuit using operational amplifier for amplifying humidity sensor signal

Example of the circuit using operational amplifier for amplifying humidity sensor signal
Small surface mount LDO regulator(1)
器件型號
TCR15AG Series
TCR13AG Series
TCR8BM Series
TCR5BM Series
Toshiba Package Name WCSP6F WCSP6F DFN5B DFN5B
IOUT (Max) [mA] 1500 1300 800 500
VOUT [V] 0.6 to 3.6 0.55 to 3.6 0.8 to 3.6 0.8 to 3.6
搜尋產品線
Small surface mount LDO regulator(2)
器件型號
TCR5RG Series
TCR3RM Series
TCR3U Series
TCR2L Series
TAR5 Series
Toshiba Package Name WCSP4F DFN4F WCSP4F SOT-553 (ESV) SOT-25 (SMV)
IOUT (Max) [mA] 500 300 300 200 200
VOUT [V] 0.9 to 5.0 0.9 to 4.5 0.8 to 5.0 0.8 to 3.6 1.5 to 5.0
搜尋產品線
Low current consumption op-amp / Low noise op-amp
器件型號
TC75S102F
TC75S67TU
Toshiba Package Name SOT-25 (SMV) SOT-353F (UFV)
VCC (Max) [V] 5.5 5.5
VCC, VEE (Max) [V] +/-2.75 +/-2.75
搜尋產品線
Ambient light sensor circuit
Ambient light sensor circuit

Example of the circuit using operational amplifier for amplifying ambient light sensor signal

Example of the circuit using operational amplifier for amplifying ambient light sensor signal
Small surface mount LDO regulator(1)
器件型號
TCR15AG Series
TCR13AG Series
TCR8BM Series
TCR5BM Series
Toshiba Package Name WCSP6F WCSP6F DFN5B DFN5B
IOUT (Max) [mA] 1500 1300 800 500
VOUT [V] 0.6 to 3.6 0.55 to 3.6 0.8 to 3.6 0.8 to 3.6
搜尋產品線
Small surface mount LDO regulator(2)
器件型號
TCR5RG Series
TCR3RM Series
TCR3U Series
TCR2L Series
TAR5 Series
Toshiba Package Name WCSP4F DFN4F WCSP4F SOT-553 (ESV) SOT-25 (SMV)
IOUT (Max) [mA] 500 300 300 200 200
VOUT [V] 0.9 to 5.0 0.9 to 4.5 0.8 to 5.0 0.8 to 3.6 1.5 to 5.0
搜尋產品線
Low current consumption op-amp / Low noise op-amp
器件型號
TC75S102F
TC75S67TU
Toshiba Package Name SOT-25 (SMV) SOT-353F (UFV)
VCC (Max) [V] 5.5 5.5
VCC, VEE (Max) [V] +/-2.75 +/-2.75
搜尋產品線
Key input circuit
Key input circuit

Example of key input circuit using TVS diode for electrostatic protection

Example of key input circuit using TVS diode for electrostatic protection
TXZ+TM 3A Series M3H Group
Series TXZ+TM 3A Series
Group M3H Group
搜尋產品線
TVS diode
器件型號
DF2B7BSL
DF2B5M4SL
DF2B6M4SL
Toshiba Package Name SOD-962 (SL2) SOD-962 (SL2) SOD-962 (SL2)
VESD (Max) [kV] +/-30 +/-20 +/-20
IR (Max) [µA] 0.1 0.1 0.1
Rdyn (Typ.) [Ω] 0.2 0.5 0.5
CT (Typ.) [pF] @ VR = 0 [V], f = 1 [MHz] 12 0.2 0.2
搜尋產品線
Power Management (Outdoor Unit)
AC-DC converter circuit (Outdoor unit)

Example of Flyback AC-DC converter circuit for outdoor unit

Example of Flyback AC-DC converter circuit for outdoor unit
π-MOSⅧ Series MOSFET
器件型號
TK6A80E
TK10A80E
TK9J90E
Toshiba Package Name TO-220SIS TO-220SIS TO-3P(N)
VDSS (Max) [V] 800 800 900
ID (Max) [A] 6.0 10 9.0
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 1.7 1.0 1.3
Polarity N-ch N-ch N-ch
搜尋產品線
Transistor output photocoupler
器件型號
TLP383
TLP293
TLP385
Toshiba Package Name 4pin SO6L SO4 4pin SO6L
BVS (Min) [Vrms] @ t = 60 [s] 5000 3750 5000
VCEO (Max) [V] 80 80 80
Topr [°C] -55 to 125 -55 to 125 -55 to 110
搜尋產品線
PFC circuit (Active type)

Example of active type PFC circuit

Example of active type PFC circuit
TXZ+TM 4A Series M4K Group / TX04 Series M470 Group / TX03 Series M370 Group
Series TXZ+TM 4A Series TX04 Series TX03 Series
Group M4K Group M470 Group M370 Group
搜尋產品線
DTMOSⅥ Series MOSFET
器件型號
TK065U65Z
TK040N65Z
Toshiba Package Name TOLL TO-247
VDSS (Max) [V] 650 650
ID (Max) [A] 38 57
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.065 0.04
Polarity N-ch N-ch
搜尋產品線
Discrete IGBT
器件型號
GT50JR22
GT30J122A
GT50J123
GT30J65MRB
Toshiba Package Name TO-3P(N) TO-3P(N) TO-3P(N) TO-3P(N)
VCES (Max) [V] 600 600 600 650
IC (Max) [A] 50 30 59 60
搜尋產品線
PFC circuit (Partical switching type)

Example of partical switching type PFC circuit

Example of partical switching type PFC circuit
TXZ+TM 4A Series M4K Group / TX04 Series M470 Group / TX03 Series M370 Group
Series TXZ+TM 4A Series TX04 Series TX03 Series
Group M4K Group M470 Group M370 Group
搜尋產品線
Discrete IGBT
器件型號
GT50JR22
GT30J122A
GT50J123
GT30J65MRB
Toshiba Package Name TO-3P(N) TO-3P(N) TO-3P(N) TO-3P(N)
VCES (Max) [V] 600 600 600 650
IC (Max) [A] 50 30 59 60
搜尋產品線
Microcontroller section(Outdoor Unit)
Microcontroller section (Power control block for outdoor unit)

Example of a power supply circuit for MCU using LDO

Example of a power supply circuit for MCU using LDO
Small surface mount LDO regulator(1)
器件型號
TCR15AG Series
TCR13AG Series
TCR8BM Series
TCR5BM Series
Toshiba Package Name WCSP6F WCSP6F DFN5B DFN5B
IOUT (Max) [mA] 1500 1300 800 500
VOUT [V] 0.6 to 3.6 0.55 to 3.6 0.8 to 3.6 0.8 to 3.6
搜尋產品線
Small surface mount LDO regulator(2)
器件型號
TCR5RG Series
TCR3RM Series
TCR3U Series
TCR2L Series
TAR5 Series
Toshiba Package Name WCSP4F DFN4F WCSP4F SOT-553 (ESV) SOT-25 (SMV)
IOUT (Max) [mA] 500 300 300 200 200
VOUT [V] 0.9 to 5.0 0.9 to 4.5 0.8 to 5.0 0.8 to 3.6 1.5 to 5.0
搜尋產品線
TXZ+TM 4A Series M4K Group / TX04 Series M470 Group / TX03 Series M370 Group
Series TXZ+TM 4A Series TX04 Series TX03 Series
Group M4K Group M470 Group M370 Group
搜尋產品線
Fan section(Outdoor Unit)
Fan section (indoor/outdoor units)　High voltage IPD

Examples of peripheral circuits for fans using HV-IPDs

Examples of peripheral circuits for fans using HV-IPDs
TXZ+TM 4A Series M4K Group / TX04 Series M470 Group / TX03 Series M370 Group
Series TXZ+TM 4A Series TX04 Series TX03 Series
Group M4K Group M470 Group M370 Group
搜尋產品線
TXZ+TM 3A Series M3H Group
Series TXZ+TM 3A Series
Group M3H Group
搜尋產品線
High Voltage IPD
器件型號
TPD4162F
Toshiba Package name HSSOP31
VBB (Max) [V] 600
VCC (Max) [V] 20
IO (Max) [A] 0.7
搜尋產品線
Fan section (indoor/outdoor units)　MCD (controller) ＋ high voltage IPD

Examples of peripheral circuits for fans using MCD (controller) ＋ HV-IPD

Examples of peripheral circuits for fans using MCD (controller) ＋ HV-IPD
TXZ+TM 4A Series M4K Group / TX04 Series M470 Group / TX03 Series M370 Group
Series TXZ+TM 4A Series TX04 Series TX03 Series
Group M4K Group M470 Group M370 Group
搜尋產品線
TXZ+TM 3A Series M3H Group
Series TXZ+TM 3A Series
Group M3H Group
搜尋產品線
Three-phase brushless DC motor controller
器件型號
TC78B041FNG
TC78B042FTG
TB6584FNG
TB6584AFNG
TB6634FNG
Toshiba Package Name SSOP30-P-300-0.65 P-VQFN32-0505-0.50-005 SSOP30-P-300-0.65 SSOP30-P-300-0.65 SSOP30-P-300-0.65
VOUT (Max) [V] 18 18 18 18 18
IOUT (Max) [A] 0.002 0.002 0.002 0.002 0.002
VM [V] 6 to 16.5 6 to 16.5 6 to 16.5 6 to 16.5 6 to 16.5
RON (Typ.) [Ω]
搜尋產品線
Three-phase brushless DC motor driver
器件型號
TB67B000AHG
TB67B000AFG
Toshiba Package Name P-HDIP30-1233-1.78-001 P-HSSOP34-0918-0.80-001
VOUT (Max) [V] 600 600
IOUT (Max) [A] 2 2
VM [V] 50 to 450 50 to 450
RON (Typ.) [Ω]
搜尋產品線
High voltage IPD
器件型號
TPD4204F
TPD4163F
TPD4164F
TPD4163K
TPD4164K
Toshiba Package name SSOP30 HSSOP31 HSSOP31 HDIP30 HDIP30
VBB (Max) [V] 600 600 600 600 600
VCC (Max) [V] 18 20 20 20 20
IO (Max) [A] 2.5 1 2 1 2
搜尋產品線
Fan section (indoor/outdoor units)　MCU (Three-phase motor controller) ＋ high voltage IPD

Examples of peripheral circuits for fans using MCU (Three-phase motor controller) ＋ HV-IPD

Examples of peripheral circuits for fans using MCU (Three-phase motor controller) ＋ HV-IPD
TXZ+TM 4A Series M4K Group / TX04 Series M470 Group / TX03 Series M370 Group
Series TXZ+TM 4A Series TX04 Series TX03 Series
Group M4K Group M470 Group M370 Group
搜尋產品線
TXZ+TM 3A Series M3H Group
Series TXZ+TM 3A Series
Group M3H Group
搜尋產品線
High voltage IPD
器件型號
TPD4204F
TPD4163F
TPD4164F
TPD4163K
TPD4164K
Toshiba Package name SSOP30 HSSOP31 HSSOP31 HDIP30 HDIP30
VBB (Max) [V] 600 600 600 600 600
VCC (Max) [V] 18 20 20 20 20
IO (Max) [A] 2.5 1 2 1 2
搜尋產品線
Compressor section
Compressor section

Example of compressor drive circuits using MOSFETs

Example of compressor drive circuits using MOSFETs
TXZ+TM 4A Series M4K Group / TX04 Series M470 Group / TX03 Series M370 Group
Series TXZ+TM 4A Series TX04 Series TX03 Series
Group M4K Group M470 Group M370 Group
搜尋產品線
DTMOSⅣ(HSD) Series MOSFET
器件型號
TK20A60W5
Toshiba Package Name TO-220SIS
VDSS (Max) [V] 600
ID (Max) [A] 20
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.175
Polarity N-ch
搜尋產品線
Valve control section
Valve control section

Example of valve control circuit using MCU

Example of valve control circuit using MCU
TXZ+TM 4A Series M4K Group / TX04 Series M470 Group / TX03 Series M370 Group
Series TXZ+TM 4A Series TX04 Series TX03 Series
Group M4K Group M470 Group M370 Group
搜尋產品線
Triac output photocoupler
器件型號
TLP3083
TLP3073
Toshiba Package Name 5pin DIP6 5pin DIP6
BVS (Min) [Vrms] @ t = 60 [s] 5000 5000
Topr [°C] -40 to 100 -40 to 100
搜尋產品線
Transistor array
器件型號
TBD62003AFWG
TBD62083AFG
TBD62064AFAG
Toshiba Package Name SOL16 SOP18-P-375-1.27 P-SSOP24-0613-1.00-001
Number of Circuits 7 8 4
IOUT (Max) [mA/ch] 500 500 1500
搜尋產品線
Isolation circuit (Between outdoor and indoor units)
Isolation circuit (Between outdoor and indoor units)

Example of a protection circuit using a photocoupler that protects against noise applied from a harness between board communication

Example of a protection circuit using a photocoupler that protects against noise applied from a harness between board communication
TXZ+TM 4A Series M4K Group / TX04 Series M470 Group / TX03 Series M370 Group
Series TXZ+TM 4A Series TX04 Series TX03 Series
Group M4K Group M470 Group M370 Group
搜尋產品線
TXZ+TM 3A Series M3H Group
Series TXZ+TM 3A Series
Group M3H Group
搜尋產品線
Transistor output photocoupler
器件型號
TLP383
TLP293
TLP385
Toshiba Package Name 4pin SO6L SO4 4pin SO6L
BVS (Min) [Vrms] @ t = 60 [s] 5000 3750 5000
VCEO (Max) [V] 80 80 80
Topr [°C] -55 to 125 -55 to 125 -55 to 110
搜尋產品線

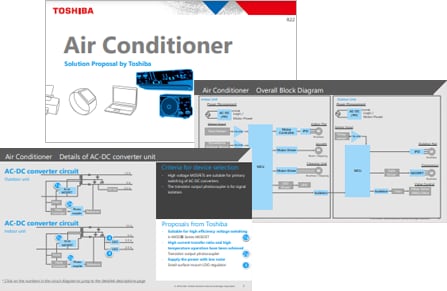

解決方案

這些文件說明推薦的半導體產品的要點及其特徵，方便產品選擇。

解決方案
SolutionProposal_Air Conditioner / English (PDF:1.8MB)
SolutionProposal_Air Conditioner / Japanese (PDF:2.1MB)

參考設計

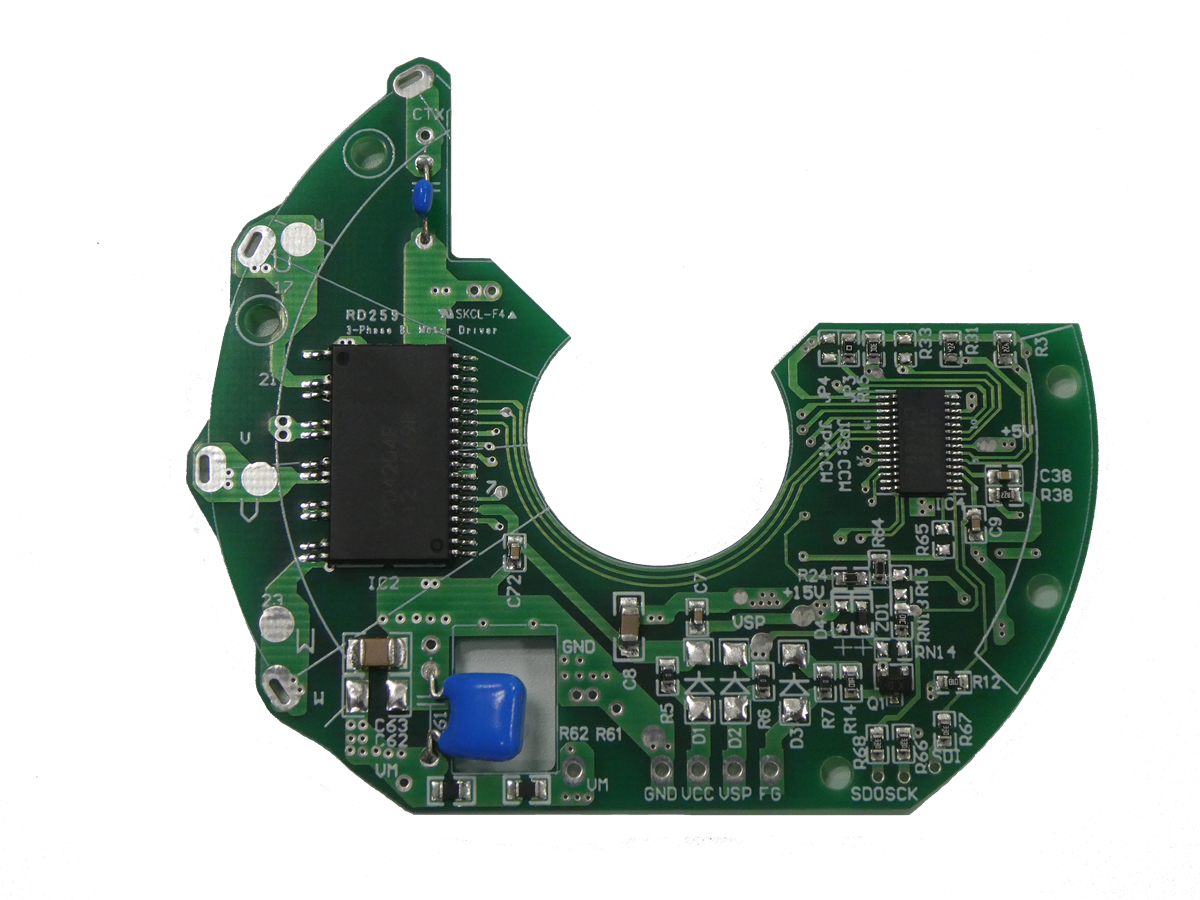

DC 300 V Input BLDC Motor Sensorless Control Circuit using TPD4165K
DC 300 V Input BLDC Motor Sensorless Control Circuit Using TPD4165K
This reference design provides design guide, data and other contents of DC 300 V Input BLDC Motor Sensorless Control Circuit using Intelligent Power IC. It achieves vector control with the MCU designed for Motor control.
詳細資料
Air Conditioner Outdoor Unit Control Circuit
Air Conditioner Outdoor Unit Control Circuit
This Reference Design provides design guide, data and other contents of the Air Conditioner Outdoor Unit that control two motors (fan motor, compressor) and a PFC circuit with a single MCU.
詳細資料
DC 300 V Input BLDC Motor Sensorless Control Circuit using TPD4164K
DC 300 V Input BLDC Motor Sensorless Control Circuit Using TPD4164K
This reference design provides design guide, data and other contents of DC 300 V Input BLDC Motor Sensorless Control Circuit using Intelligent Power IC. It achieves vector control with the MCU designed for Motor control.
詳細資料
DC 300 V Input BLDC Motor Sensorless Control Circuit using TPD4164F
DC 300 V Input BLDC Motor Sensorless Control Circuit using TPD4164F
This reference design provides design guide, data and other contents of DC 300 V Input BLDC Motor Sensorless Control Circuit using Intelligent Power IC. It achieves vector control with the MCU designed for Motor control.
詳細資料
DC 300 V Input BLDC Motor Sensorless Control Circuit using TPD4204F
使用 TPD4204F 的直流 300 V 輸入 BLDC 馬達無傳感器控制電路
該參考設計提供了使用智能功率器件的直流 300 V 輸入 BLDC 馬達無傳感器控制電路的設計指南、數據和其他內容。它通過專為電機控製而設計的MCU實現向量控制。
詳細資料
Circuit diagram of single phase PFC power supply basic simulation circuit.
Single Phase PFC Power Supply Basic Simulation Circuit
This reference design provides OrCAD® based simulation circuit, simulation results and design guide. This is for designing single phase PFC power supply.
詳細資料
Circuit diagram of interleaved PFC power supply basic simulation circuit.
Interleaved PFC Power Supply Basic Simulation Circuit
This reference design provides OrCAD® based simulation circuit, simulation results and design guide. This is for designing interleaved PFC power supply.
詳細資料
Circuit diagram of bridgeless PFC power supply basic simulation circuit.
Bridgeless PFC Power Supply Basic Simulation Circuit
This reference design provides OrCAD® based simulation circuit, simulation results and design guide. This is for designing bridgeless PFC power supply.
詳細資料
Application block diagram of application circuits of TPD4152F square-wave control type of BLDC motor driver.
Application Circuits of TPD4152F Square-Wave Control Type of BLDC Motor Driver
This reference design provides example circuit and design guide using Hall device/IC. The TPD4152F has 600V rating and built-in PWM to drive BLDC motor with square-wave control.
詳細資料
Application block diagram of application circuits of TPD4204F and TB6634FNG sine-wave control type of BLDC motor driver.
Application Circuits of TPD4204F and TB6634FNG Sine-Wave Control Type of BLDC Motor Driver
This reference design provides example circuit and design guide using Hall device/IC. The TPD4204F has 600V rating and built-in PWM to drive BLDC motor with sign-wave control.
詳細資料
Applicatoin block diagram of application circuits of TPD4206F and TB6634FNG sine-wave control type of BLDC motor driver.
Application Circuits of TPD4206F and TB6634FNG Sine-Wave Control Type of BLDC Motor Driver
This reference design provides example circuit and design guide using Hall device/IC. The TPD4206F has 500V rating and built-in PWM to drive BLDC motor with sign-wave control.
詳細資料

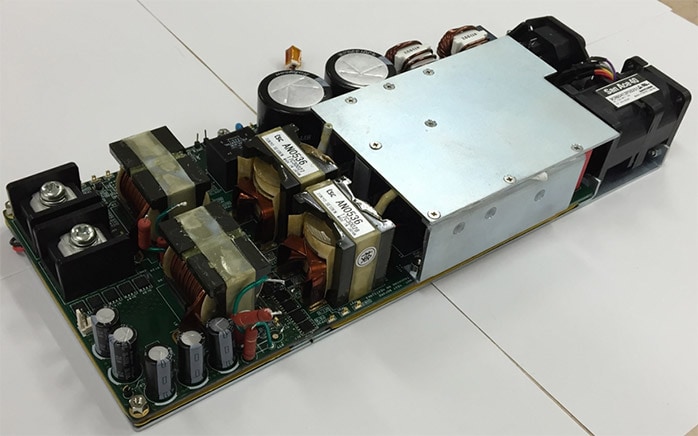

Features of 1.6kW, 80Plus Platinum class, high efficiency server AC-DC power supply .
1.6kW, 80Plus Platinum Class, High efficiency Server AC-DC Power supply
This reference design provides design guide, data and other contents of 1.6kW 80Plus Platinum class power supply using Semi-bridgeless/Isolated phase shift full bridge.
詳細資料

文件

其他文件請參閱以下頁面。

視頻

開發/設計支援

交換式電源供應器工具庫

您可以按照實際需求選擇並下載電源設備的各種基本topologies，以便在模擬環境中驗證MOSFET的性能。

交換式電源供應器工具庫
馬達控制和驅動電路的線上模擬資料庫

您可以根據實際要求選擇和下載馬達驅動IC的各種基本拓撲結構，例如3相逆變器電路，以驗證MOSFET和其他元件在您的模擬環境中的性能。

馬達控制和驅動電路的線上模擬資料庫
線上電路模擬器

允許使用者在網站上直接進行電路模擬，無須建構評估環境，即可預先驗證裝置。只要是註冊會員就可以免費使用。

線上電路模擬器
EDA/CAD 模型庫

我們提供開發產品板時所使用的模擬資料、封裝的 3D 模型以及焊盤圖案模型（2D 模型）。

EDA/CAD 模型庫
MCU Motor Studio

MCU Motor Studio 具有專用於東芝 TXZ+TM系列高階微控制器的 PC 工具和馬達控制韌體。

MCU Motor Studio
東芝電子報訂閱
東芝電子報訂閱
請填寫訂閱表格 ，即可收到有關東芝產品的最新消息! 歡迎訂閱!
了解更多

聯繫我們

技術方面問題

聯絡我們

聯絡我們

常見問題

常見問答
  • Arm and Cortex are registered trademarks of Arm Limited (or its subsidiaries) in the US and/or elsewhere.
  • TXZ+TM is a trademark of Toshiba Electronic Devices & Storage Corporation.
  • Other company names, product names, and service names may be trademarks of their respective companies.
開啟新視窗
