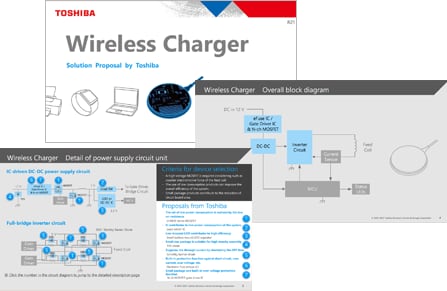

Wireless Charger

總方塊圖

Wireless Charger

點選總方塊圖中要查看詳細資訊的區域。顯示我們建議的子方塊圖的連結。

IC-driven DC-DC power supply circuit

IC-driven DC-DC power supply circuit (1)

Example of power supply circuit using discrete solution and control IC

IC-driven DC-DC power supply circuit (2)

Example of power supply circuit using discrete solution and control IC

Full-bridge inverter circuit

Example of inverter circuit using discrete solution and control IC

子方塊圖

IC-driven DC-DC power supply circuit

IC-driven DC-DC power supply circuit (1)

Example of power supply circuit using discrete solution and control IC

Low on-resistance products are available in the lineup. Improvement of trade-off characteristics between on-resistance and capacitance contributes to energy saving.

Part Number	TPN7R504PL	TPN8R408QM	TPN12008QM
Toshiba Package Name	TSON Advance	TSON Advance	TSON Advance
V_DSS (Max) [V]	40	80	80
I_D (Max) [A]	68	32	26
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.0075	0.0084	0.0123
Polarity	N-ch	N-ch	N-ch

搜尋產品線

Low on-resistance products are available in the lineup. Improvement of trade-off characteristics between on-resistance and capacitance contributes to energy saving.

Part Number	TPH7R204PL	TK90S06N1L	TK5R1P08QM	TK6R9P08QM
Toshiba Package Name	SOP Advance	DPAK+	DPAK	DPAK
V_DSS (Max) [V]	40	60	80	80
I_D (Max) [A]	72	90	84	62
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.0072	0.0033	0.0051	0.0069
Polarity	N-ch	N-ch	N-ch	N-ch

搜尋產品線

Low on-resistance is realized and it contributes to high power supply efficiency.

Part Number	TCK22921G	TCK22922G	TCK22923G	TCK22925G	TCK127BG
Toshiba Package Name	WCSP6E	WCSP6E	WCSP6E	WCSP6E	WCSP4G
V_IN (Max) [V]	6.0	6.0	6.0	6.0	6.0
I_OUT(DC) (Max) [A]	2.0	2.0	2.0	2.0	1.0

搜尋產品線

Low on-resistance is realized and it contributes to high power supply efficiency.

Part Number	TCK22971G	TCK22972G	TCK22973G	TCK22974G	TCK22975G
Toshiba Package Name	WCSP6E	WCSP6E	WCSP6E	WCSP6E	WCSP6E
V_IN (Max) [V]	6.0	6.0	6.0	6.0	6.0
I_OUT(DC) (Max) [A]	2.0	2.0	2.0	2.0	2.0

搜尋產品線

Wide lineup from general purpose type to WCSP (Wafer Level Chip Size Package) type are provided. Contribute to realize a stable power supply.

Part Number	TCR15AG Series	TCR8BM Series	TCR5FM Series	TCR5RG Series	TCR3RM Series
Toshiba Package Name	WCSP6F	DFN5B	DFN4D	WCSP4F	DFN4F
I_OUT (Max) [mA]	1500	800	500	500	300
V_OUT [V]	0.6 to 3.6	0.8 to 3.6	0.9 to 5.0	0.9 to 5.0	0.9 to 4.5

搜尋產品線

Wide lineup from general purpose type to WCSP (Wafer Level Chip Size Package) type are provided. Contribute to realize a stable power supply.

Part Number	TCR3U Series	TCR3LM Series	TCR3D Series	TCR3EM Series	TCR1HF Series
Toshiba Package Name	SOT-25 (SMV)	DFN4D	DFN4D	DFN4D	SOT-25 (SMV)
I_OUT (Max) [mA]	300	300	300	300	150
V_OUT [V]	0.8 to 5.0	0.8 to 5.0	1.0 to 4.5	0.8 to 5.0	1.8 to 5.0

搜尋產品線

This absorbs static electricity (ESD) from external terminals, prevents circuit malfunction and protects devices.

Part Number	DF2S6P2FU	DF2S12P2FU	DF2S14P2FU	DF2S23P2FU
Toshiba Package Name	SOD-323 (USC)	SOD-323 (USC)	SOD-323 (USC)	SOD-323 (USC)
V_ESD (Max) [kV]	+/-30	+/-30	+/-30	+/-30
I_R (Max) [µA]	0.1	0.1	0.1	0.1
R_dyn (Typ.) [Ω]	0.08	0.08	0.08	0.13
C_T (Typ.) [pF] @ V_R = 0 [V], f = 1 [MHz]	600	280	270	160

搜尋產品線

IC-driven DC-DC power supply circuit (2)

Example of power supply circuit using discrete solution and control IC

Electronic fuse (eFuse IC)
N-ch MOSFET gate driver IC (1)
N-ch MOSFET gate driver IC (2)

Electronic fuse (eFuse IC) can be used repeatedly to protect circuits from abnormal conditions such as over current and over voltage.

Part Number	TCKE8 Series	TCKE7 Series	TCKE9 Series	TCKE6 Series
Toshiba Package Name	WSON10B	WSON10	WSON8	TSOP6F
V_IN [V]	4.4 to 18	4.4 to 13.2	2.7 to 23	4.4 to 30
R_ON (Typ.) [mΩ]	28	53	34	52

搜尋產品線

It is N-ch MOSFET gate driver IC with Over Voltage Protection function. It contributes to reduction of power consumption and miniaturization of load switch circuit.

Part Number	TCK401G	TCK402G	TCK420G	TCK421G	TCK422G
Toshiba Package Name	WCSP6E	WCSP6E	WCSP6G	WCSP6G	WCSP6G
V_{OVL_FA} (Typ.) [V]			27.56	23.14	14.17
V_{OVL_RI} (Typ.) [V]			27.73	23.26	14.29
V_GS (Typ.) [V]	8.5	8.5	10	10	10

搜尋產品線

It is N-ch MOSFET gate driver IC with Over Voltage Protection function. It contributes to reduction of power consumption and miniaturization of load switch circuit.

Part Number	TCK423G	TCK424G	TCK425G
Toshiba Package Name	WCSP6G	WCSP6G	WCSP6G
V_{OVL_FA} (Typ.) [V]	14.17	10.71	6.19
V_{OVL_RI} (Typ.) [V]	14.29	10.83	6.31
V_GS (Typ.) [V]	5.6	5.6	5.6

搜尋產品線

Full-bridge inverter circuit

Example of inverter circuit using discrete solution and control IC

U-MOS Series MOSFET (1)
U-MOS Series MOSFET (2)
Schottky barrier diode (1)
Schottky barrier diode (2)

Low on-resistance products are available in the lineup. Improvement of trade-off characteristics between on-resistance and capacitance contributes to energy saving.

Part Number	TPN7R504PL	TPN8R408QM	TPN12008QM
Toshiba Package Name	TSON Advance	TSON Advance	TSON Advance
V_DSS (Max) [V]	40	80	80
I_D (Max) [A]	68	32	26
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.0075	0.0084	0.0123
Polarity	N-ch	N-ch	N-ch

搜尋產品線

Low on-resistance products are available in the lineup. Improvement of trade-off characteristics between on-resistance and capacitance contributes to energy saving.

Part Number	TPH7R204PL	TK90S06N1L	TK5R1P08QM	TK6R9P08QM
Toshiba Package Name	SOP Advance	DPAK+	DPAK	DPAK
V_DSS (Max) [V]	40	60	80	80
I_D (Max) [A]	72	90	84	62
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.0072	0.0033	0.0051	0.0069
Polarity	N-ch	N-ch	N-ch	N-ch

搜尋產品線

Wide voltage lineup using small size package with high power dissipation. It contributes to shorten the turn off time of gate voltage.

Part Number	CUHS20F30	CUHS20F40
Toshiba Package Name	SOD-323HE (US2H)	SOD-323HE (US2H)
V_RRM (Max) [V]
V_R (Max) [V]	30	40
C_T (Typ.) [pF]	380	300

搜尋產品線

Wide voltage lineup using small size package with high power dissipation. It contributes to shorten the turn off time of gate voltage.

Part Number	CUHS10F60	CUHS15F60	CUHS20F60	CUHS15S60	CUHS20S60
Toshiba Package Name	SOD-323HE (US2H)	SOD-323HE (US2H)	SOD-323HE (US2H)	SOD-323HE (US2H)	SOD-323HE (US2H)
V_RRM (Max) [V]
V_R (Max) [V]	60	60	60	60	60
C_T (Typ.) [pF]	130	130	300	130	290

搜尋產品線

Reference Design

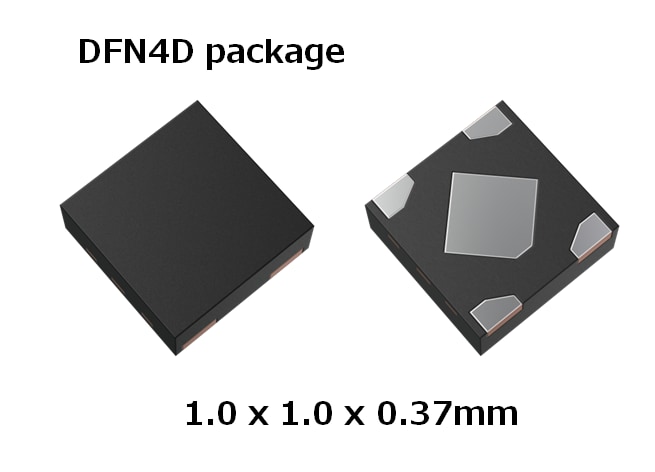

TCR3EMxxA/3DMxxA/3LMxxA系列LDO穩壓器，具有300 mA輸出，採用小型DNF4D封裝，適用於電源電路應用

該產品線包括三個系列的小型封裝LDO穩壓器，這些產品因其特點（標準型、低壓差型和低電流消耗型）而非常適合移動設備等。我們提供了每個系列的特點、設計要點和使用方法的描述。

詳細資料

Power multiplexer circuit

In this reference design, a Power multiplexer circuit with 2 input and 1 output is implemented on a small PCB. MOSFET gate driver ICs, eFuse ICs, zener diodes and small package MOSFETs selected from Toshiba's diverse lineup are used create ideal diode like characteristics with BBM and MBB switching.

詳細資料

Non-Isolated Buck DC-DC Converter

This reference design provides design guide, data and other contents of multiple non-isolated buck DC-DC converter power supplies. Multiple variations of the power supply are optimized for various outputs, loads and board mounting areas.

詳細資料

LDO Regulator TCR3UG Series Application for Power Supply of IoT Devices

This reference design provides document with low consumption current, PSRR, and dynamic response.The LDO has small package, low consumed power, and fast load transient response.

詳細資料

LDO Regulator TCR15AG (fixed output voltage type) Application & Circuit

This reference design provides document with PSRR, dynamic response and controlling output voltage.The LDO has very small package and fixed output voltage for consumer application.

詳細資料

LDO Regulator TCR15AGADJ Application & Circuit

This reference design provides document with PSRR, dynamic response and controlling output voltage. The LDO has very small package and adjustable output for consumer application.

詳細資料
