Uninterruptible power supply

Uninterruptible power supply

Such as low power consumption and miniaturization are important in designing uninterruptible power supply (UPS). Toshiba provides information on a wide range of semiconductor products suitable for power sullpy units, inverter/converter units, control units, signal transmission units, etc., along with circuit configuration examples.

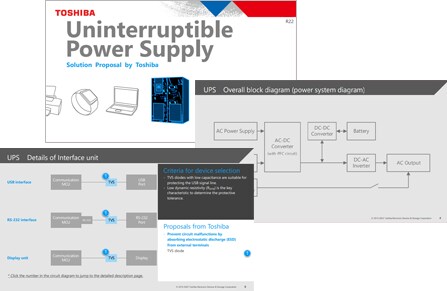

總方塊圖

點選總方塊圖中要查看詳細資訊的區域。顯示我們建議的子方塊圖的連結。

 Gate Driver GateDriver Gate Driver GateDriver Gate Driver GateDriver Gate Driver GateDriver Gate Driver GateDriver Gate Driver GateDriver ISO AMP ISOAMP ISO AMP ISOAMP IB-LS IB-LS IB-HS IB-HS VB-SENSE VB-SENSE Gate Driver GateDriver ISO AMP ISOAMP Main MCU Main MCU Isolation Isolation Communication MCU CommunicationMCU Display Display USB USB CAN CAN RS-232C RS-232C RS-422/485 RS-422/485 30 to 60 V 30 to 60 V 300 to 400 V 300 to 400 V Gate Driver GateDriver Gate Driver GateDriver MOSFET MOSFET MOSFET MOSFET MOSFET MOSFET MOSFET MOSFET MOSFET MOSFET MOSFET MOSFET MOSFET MOSFET MOSFET MOSFET MOSFET MOSFET Voltage and current detection signal transmission line Control signal transmission line Power supply to main MCU DC-DC converter and control circuit Communication signal transmission line Power supply to communication MCU Display unit USB interface RS-232 interface
USB interface

Example of ESD protection circuit for USB signal line

RS-232 interface

Example of ESD protection circuit for RS-232C signal line

Display unit

Example of ESD protection circuit for a display signal line

Control signal transmission line between MCU and converter

Example of control signal transmission circuit between MCU and converter

Communication signal transmission line between MCUs

Example of communication signal transmission circuit between MCUs

Voltage and current detection signal transmission line

Example of voltage and current detection signal transmission circuit between power line and MCU

DC-DC converter and control circuit

Example of DC-DC converter and control circuit

Power supply to analog front end

Example of power supply circuit to analog front end

Power supply to main MCU

Example of power supply circuit to main MCU

Power supply to communication MCU

Example of power supply circuit to communication MCU

點選總方塊圖中要查看詳細資訊的區域。顯示我們建議的子方塊圖的連結。

 PFC Controller PFCController Main MCU MainMCU AC Input AC Input DC Output 300 to 400 V DC Output300 to 400 V MOSFET MOSFET AC-DC converter (with PFC circuit) and control circuit Power supply to main MCU
AC-DC converter (with PFC circuit) and control circuit

Example of AC-DC converter (with PFC circuit) and control circuit

Power supply to main MCU

Example of power supply circuit to main MCU

點選總方塊圖中要查看詳細資訊的區域。顯示我們建議的子方塊圖的連結。

 Gate Driver GateDriver Gate Driver GateDriver Gate Driver GateDriver Gate Driver GateDriver Main MCU MainMCU AC Output AC Output C C DC Input 300 to 400 V DC Input300 to 400 V MOS FET MOSFET MOS FET MOSFET MOS FET MOSFET MOS FET MOSFET Power supply to main MCU DC-AC inverter and control circuit
DC-AC inverter and control circuit

Example of DC-AC inverter and control circuit

Power supply to main MCU

Example of power supply circuit to main MCU

子方塊圖

USB interface
USB interface

Example of ESD protection circuit for USB signal line

Example of ESD protection circuit for USB signal line
TVS diode
器件型號
DF2B7ASL
DF2B5M4SL
DF2B6M4SL
Toshiba Package Name SOD-962 (SL2) SOD-962 (SL2) SOD-962 (SL2)
VESD (Max) [kV] +/-30 +/-20 +/-20
IR (Max) [µA] 0.1 0.1 0.1
Rdyn (Typ.) [Ω] 0.2 0.5 0.5
CT (Typ.) [pF] @ VR = 0 [V], f = 1 [MHz] 8.5 0.2 0.2
搜尋產品線
RS-232 interface
RS-232 interface

Example of ESD protection circuit for RS-232C signal line

Example of ESD protection circuit for RS-232C signal line
TVS diode
器件型號
DF2B7ASL
DF2B5M4SL
DF2B6M4SL
Toshiba Package Name SOD-962 (SL2) SOD-962 (SL2) SOD-962 (SL2)
VESD (Max) [kV] +/-30 +/-20 +/-20
IR (Max) [µA] 0.1 0.1 0.1
Rdyn (Typ.) [Ω] 0.2 0.5 0.5
CT (Typ.) [pF] @ VR = 0 [V], f = 1 [MHz] 8.5 0.2 0.2
搜尋產品線
Display unit
Display unit

Example of ESD protection circuit for a display signal line

Example of ESD protection circuit for a display signal line
TVS diode
器件型號
DF2B7ASL
DF2B5M4SL
DF2B6M4SL
Toshiba Package Name SOD-962 (SL2) SOD-962 (SL2) SOD-962 (SL2)
VESD (Max) [kV] +/-30 +/-20 +/-20
IR (Max) [µA] 0.1 0.1 0.1
Rdyn (Typ.) [Ω] 0.2 0.5 0.5
CT (Typ.) [pF] @ VR = 0 [V], f = 1 [MHz] 8.5 0.2 0.2
搜尋產品線
Control signal transmission line between MCU and converter
Control signal transmission line between MCU and converter

Example of control signal transmission circuit between MCU and converter

Example of control signal transmission circuit between MCU and converter
Gate driver photocoupler
器件型號
TLP5214A
TLP5212
TLP5222
TLP5231
TLP5754H
TLP5705H
Toshiba Package Name SO16L SO16L SO16L SO16L SO6L SO6L
BVS (Min) [Vrms] @ t = 60 [s] 5000 5000 5000 5000 5000 5000
VCC / VDD (Min) [V] 15 15 15 15.0 15 15
VCC / VDD (Max) [V] 30 30 30 23.5 30 30
ICC / IDD (Max) [mA] 3.8 5 5 10.2 3 3
Output Interface totem-pole(BUF) totem-pole(BUF) totem-pole(BUF) totem-pole(BUF) totem-pole(BUF)
搜尋產品線
MCU
Series TXZ+TM 4A Series
Group M4N group
搜尋產品線
Communication signal transmission line between MCUs
Communication signal transmission line between MCUs

Example of communication signal transmission circuit between MCUs

Example of communication signal transmission circuit between MCUs
Photocoupler for high speed communication
器件型號
TLP2710
TLP2761
TLP2770
TLP2210
TLP2261
TLP2270
Toshiba Package Name SO6L SO6L SO6L SO8L(LF4) SO8L(LF4) SO8L(LF4)
BVS (Min) [Vrms] @ t = 60 [s] 5000 5000 5000 5000 5000 5000
VCC / VDD (Min) [V] 2.7 2.7 2.7 2.7 2.7 2.7
VCC / VDD (Max) [V] 5.5 5.5 5.5 5.5 5.5 5.5
ICC / IDD (Max) [mA] 0.3 1 0.4 0.6 2 0.8
Output Interface totem-pole(BUF) totem-pole(INV) totem-pole(BUF) totem-pole(BUF) totem-pole(INV) totem-pole(BUF)
搜尋產品線
MCU
Series TXZ+TM 4A Series
Group M4N group
搜尋產品線
Voltage and current detection signal transmission line
Voltage and current detection signal transmission line

Example of voltage and current detection signal transmission circuit between power line and MCU

Example of voltage and current detection signal transmission circuit between power line and MCU
Isolation amplifier
器件型號
TLP7820
TLP7830
Toshiba Package Name SO8L(LF4) SO8L(LF4)
Output Interface Analog output Digital output
BVS (Min) [Vrms] @ t = 60 [s] 5000 5000
VDD1 (Max) [V] 5.5 5.5
VDD2 (Max) [V] 5.5 5.5
IDD1 (Max) [mA] @ VIN+ = 0 [V] 12 12
IDD2 (Max) [mA] @ VIN+ = 0 [V] 10 8
搜尋產品線
MCU
Series TXZ+TM 4A Series
Group M4N group
搜尋產品線
DC-DC converter and control circuit
DC-DC converter and control circuit

Example of DC-DC converter and control circuit

Example of DC-DC converter and control circuit
DTMOS Series MOSFET(1)
器件型號
TK25A60X
TK16A60W5
TK110A65Z
TK190A65Z
Toshiba Package Name TO-220SIS TO-220SIS TO-220SIS TO-220SIS
VDSS (Max) [V] 600 600 650 650
ID (Max) [A] 25 15.8 24 15
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.125 0.23 0.11 0.19
Polarity N-ch N-ch N-ch N-ch
搜尋產品線
DTMOS Series MOSFET(2)
器件型號
TK110U65Z
TK190U65Z
Toshiba Package Name TOLL TOLL
VDSS (Max) [V] 650 650
ID (Max) [A] 24 15
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.11 0.19
Polarity N-ch N-ch
搜尋產品線
SiC MOSFET
器件型號
TW015N65C
TW015N120C
TW015Z65C
TW015Z120C
Toshiba Package Name TO-247 TO-247 TO-247-4L(X) TO-247-4L(X)
VDSS (Max) [V] 650 1200 650 1200
ID (Max) [A] 100 100 100 100
RDS(ON) (Max) [Ω] @ |VGS| = 18.0 [V] 0.021 0.02 0.022 0.021
Polarity N-ch N-ch N-ch N-ch
搜尋產品線
U-MOS Series MOSFET(1)
器件型號
TPN19008QM
TPH4R008QM
TPH2R408QM
TPH9R00CQ5
TK2R4A08QM
Toshiba Package Name TSON Advance SOP Advance(N) SOP Advance SOP Advance / SOP Advance(N) TO-220SIS
VDSS (Max) [V] 80 80 80 150 80
ID (Max) [A] 34 86 120 64 100
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.019 0.004 0.00243 0.009 0.00244
Polarity N-ch N-ch N-ch N-ch N-ch
搜尋產品線
U-MOS Series MOSFET(2)
器件型號
TK2R4E08QM
TK100E10N1
Toshiba Package Name TO-220 TO-220
VDSS (Max) [V] 80 100
ID (Max) [A] 120 207
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.00244 0.0034
Polarity N-ch N-ch
搜尋產品線
Gate driver photocoupler
器件型號
TLP5214A
TLP5212
TLP5222
TLP5231
TLP5754H
TLP5705H
Toshiba Package Name SO16L SO16L SO16L SO16L SO6L SO6L
BVS (Min) [Vrms] @ t = 60 [s] 5000 5000 5000 5000 5000 5000
VCC / VDD (Min) [V] 15 15 15 15.0 15 15
VCC / VDD (Max) [V] 30 30 30 23.5 30 30
ICC / IDD (Max) [mA] 3.8 5 5 10.2 3 3
Output Interface totem-pole(BUF) totem-pole(BUF) totem-pole(BUF) totem-pole(BUF) totem-pole(BUF)
搜尋產品線
MCU
Series TXZ+TM 4A Series
Group M4N group
搜尋產品線
Power supply to analog front end
Power supply to analog front end

Example of power supply circuit to analog front end

Example of power supply circuit to analog front end
Small surface mount LDO regulator(1)
器件型號
TCR15AG Series
TCR13AG Series
TCR8BM Series
TCR5BM Series
Toshiba Package Name WCSP6F WCSP6F DFN5B DFN5B
IOUT (Max) [mA] 1500 1300 800 500
VOUT [V] 0.6 to 3.6 0.55 to 3.6 0.8 to 3.6 0.8 to 3.6
搜尋產品線
Small surface mount LDO regulator(2)
器件型號
TCR5RG Series
TCR3RM Series
TCR3U Series
TCR2L Series
TAR5 Series
Toshiba Package Name WCSP4F DFN4F WCSP4F SOT-553 (ESV) SOT-25 (SMV)
IOUT (Max) [mA] 500 300 300 200 200
VOUT [V] 0.9 to 5.0 0.9 to 4.5 0.8 to 5.0 0.8 to 3.6 1.5 to 5.0
搜尋產品線
Power supply to main MCU
Power supply to main MCU

Example of power supply circuit to main MCU

Example of power supply circuit to main MCU
Small surface mount LDO regulator(1)
器件型號
TCR15AG Series
TCR13AG Series
TCR8BM Series
TCR5BM Series
Toshiba Package Name WCSP6F WCSP6F DFN5B DFN5B
IOUT (Max) [mA] 1500 1300 800 500
VOUT [V] 0.6 to 3.6 0.55 to 3.6 0.8 to 3.6 0.8 to 3.6
搜尋產品線
Small surface mount LDO regulator(2)
器件型號
TCR5RG Series
TCR3RM Series
TCR3U Series
TCR2L Series
TAR5 Series
Toshiba Package Name WCSP4F DFN4F WCSP4F SOT-553 (ESV) SOT-25 (SMV)
IOUT (Max) [mA] 500 300 300 200 200
VOUT [V] 0.9 to 5.0 0.9 to 4.5 0.8 to 5.0 0.8 to 3.6 1.5 to 5.0
搜尋產品線
MCU
Series TXZ+TM 4A　Series
Group M4N Group
搜尋產品線
Power supply to communication MCU
Power supply to communication MCU

Example of power supply circuit to communication MCU

Example of power supply circuit to communication MCU
Small surface mount LDO regulator(1)
器件型號
TCR15AG Series
TCR13AG Series
TCR8BM Series
TCR5BM Series
Toshiba Package Name WCSP6F WCSP6F DFN5B DFN5B
IOUT (Max) [mA] 1500 1300 800 500
VOUT [V] 0.6 to 3.6 0.55 to 3.6 0.8 to 3.6 0.8 to 3.6
搜尋產品線
Small surface mount LDO regulator(2)
器件型號
TCR5RG Series
TCR3RM Series
TCR3U Series
TCR2L Series
TAR5 Series
Toshiba Package Name WCSP4F DFN4F WCSP4F SOT-553 (ESV) SOT-25 (SMV)
IOUT (Max) [mA] 500 300 300 200 200
VOUT [V] 0.9 to 5.0 0.9 to 4.5 0.8 to 5.0 0.8 to 3.6 1.5 to 5.0
搜尋產品線
AC-DC converter (with PFC circuit) and control circuit
AC-DC converter (with PFC circuit) and control circuit

Example of AC-DC converter (with PFC circuit) and control circuit

Example of AC-DC converter (with PFC circuit) and control circuit
DTMOS Series MOSFET(1)
器件型號
TK25A60X
TK16A60W5
TK110A65Z
TK190A65Z
Toshiba Package Name TO-220SIS TO-220SIS TO-220SIS TO-220SIS
VDSS (Max) [V] 600 600 650 650
ID (Max) [A] 25 15.8 24 15
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.125 0.23 0.11 0.19
Polarity N-ch N-ch N-ch N-ch
搜尋產品線
DTMOS Series MOSFET(2)
器件型號
TK110U65Z
TK190U65Z
Toshiba Package Name TOLL TOLL
VDSS (Max) [V] 650 650
ID (Max) [A] 24 15
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.11 0.19
Polarity N-ch N-ch
搜尋產品線
SiC MOSFET
器件型號
TW015N65C
TW015N120C
TW015Z65C
TW015Z120C
Toshiba Package Name TO-247 TO-247 TO-247-4L(X) TO-247-4L(X)
VDSS (Max) [V] 650 1200 650 1200
ID (Max) [A] 100 100 100 100
RDS(ON) (Max) [Ω] @ |VGS| = 18.0 [V] 0.021 0.02 0.022 0.021
Polarity N-ch N-ch N-ch N-ch
搜尋產品線
SiC Schottky barrier diode
器件型號
TRS12A65F
TRS24N65FB
TRS2E65H
TRS12E65H
TRS4V65H
TRS12V65H
Toshiba Package Name TO-220F-2L TO-247 TO-220-2L TO-220-2L DFN 8×8 DFN 8×8
IF(DC) (Max) [A] 12 24 2 12 4 12
VRRM (Max) [V] 650 650 650 650 650 650
VF (Max) [V] 1.6 1.6 1.35 1.35 1.35 1.35
IR (Max) [µA] @ VRRM (Max) 60 60 40 120 55 120
搜尋產品線
Gate driver photocoupler
器件型號
TLP5214A
TLP5212
TLP5222
TLP5231
TLP5754H
TLP5705H
Toshiba Package Name SO16L SO16L SO16L SO16L SO6L SO6L
BVS (Min) [Vrms] @ t = 60 [s] 5000 5000 5000 5000 5000 5000
VCC / VDD (Min) [V] 15 15 15 15.0 15 15
VCC / VDD (Max) [V] 30 30 30 23.5 30 30
ICC / IDD (Max) [mA] 3.8 5 5 10.2 3 3
Output Interface totem-pole(BUF) totem-pole(BUF) totem-pole(BUF) totem-pole(BUF) totem-pole(BUF)
搜尋產品線
MCU
Series TXZ+TM 4A Series
Group M4N group
搜尋產品線
Power supply to main MCU
Power supply to main MCU

Example of power supply circuit to main MCU

Example of power supply circuit to main MCU
Small surface mount LDO regulator(1)
器件型號
TCR15AG Series
TCR13AG Series
TCR8BM Series
TCR5BM Series
Toshiba Package Name WCSP6F WCSP6F DFN5B DFN5B
IOUT (Max) [mA] 1500 1300 800 500
VOUT [V] 0.6 to 3.6 0.55 to 3.6 0.8 to 3.6 0.8 to 3.6
搜尋產品線
Small surface mount LDO regulator(2)
器件型號
TCR5RG Series
TCR3RM Series
TCR3U Series
TCR2L Series
TAR5 Series
Toshiba Package Name WCSP4F DFN4F WCSP4F SOT-553 (ESV) SOT-25 (SMV)
IOUT (Max) [mA] 500 300 300 200 200
VOUT [V] 0.9 to 5.0 0.9 to 4.5 0.8 to 5.0 0.8 to 3.6 1.5 to 5.0
搜尋產品線
MCU
Series TXZ+TM 4A　Series
Group M4N Group
搜尋產品線
DC-AC inverter and control circuit
DC-AC inverter and control circuit

Example of DC-AC inverter and control circuit

Example of DC-AC inverter and control circuit
DTMOS Series MOSFET(1)
器件型號
TK25A60X
TK16A60W5
TK110A65Z
TK190A65Z
Toshiba Package Name TO-220SIS TO-220SIS TO-220SIS TO-220SIS
VDSS (Max) [V] 600 600 650 650
ID (Max) [A] 25 15.8 24 15
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.125 0.23 0.11 0.19
Polarity N-ch N-ch N-ch N-ch
搜尋產品線
DTMOS Series MOSFET(2)
器件型號
TK110U65Z
TK190U65Z
Toshiba Package Name TOLL TOLL
VDSS (Max) [V] 650 650
ID (Max) [A] 24 15
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.11 0.19
Polarity N-ch N-ch
搜尋產品線
SiC MOSFET
器件型號
TW015N65C
TW015N120C
TW015Z65C
TW015Z120C
Toshiba Package Name TO-247 TO-247 TO-247-4L(X) TO-247-4L(X)
VDSS (Max) [V] 650 1200 650 1200
ID (Max) [A] 100 100 100 100
RDS(ON) (Max) [Ω] @ |VGS| = 18.0 [V] 0.021 0.02 0.022 0.021
Polarity N-ch N-ch N-ch N-ch
搜尋產品線
Gate driver photocoupler
器件型號
TLP5214A
TLP5212
TLP5222
TLP5231
TLP5754H
TLP5705H
Toshiba Package Name SO16L SO16L SO16L SO16L SO6L SO6L
BVS (Min) [Vrms] @ t = 60 [s] 5000 5000 5000 5000 5000 5000
VCC / VDD (Min) [V] 15 15 15 15.0 15 15
VCC / VDD (Max) [V] 30 30 30 23.5 30 30
ICC / IDD (Max) [mA] 3.8 5 5 10.2 3 3
Output Interface totem-pole(BUF) totem-pole(BUF) totem-pole(BUF) totem-pole(BUF) totem-pole(BUF)
搜尋產品線
MCU
Series TXZ+TM 4A Series
Group M4N group
搜尋產品線
Power supply to main MCU
Power supply to main MCU

Example of power supply circuit to main MCU

Example of power supply circuit to main MCU
Small surface mount LDO regulator(1)
器件型號
TCR15AG Series
TCR13AG Series
TCR8BM Series
TCR5BM Series
Toshiba Package Name WCSP6F WCSP6F DFN5B DFN5B
IOUT (Max) [mA] 1500 1300 800 500
VOUT [V]
