Refrigerator

Refrigerator

Such as low power consumption and miniaturization are important in designing refrigerator. Toshiba provides information on a wide range of semiconductor products suitable for power supply units, motor driving units, sensor signal input unit, AC load control unit, etc., along with circuit configuration examples.

總方塊圖

點選總方塊圖中要查看詳細資訊的區域。顯示我們建議的子方塊圖的連結。

 Compressor Compressor Motor Damper Motor Damper Inner Fan Inner Fan AC AC Op-amp Op-amp LDO LDO LED LED Speaker Speaker Key Key LED Driver LEDDriver LED Light LED Light Sensor Sensor Door switch Door switch MCD MCD M M M M Surge absorption Surgeabsorption Heater Heater MOSFET MOSFET MCD MCD Control MCU for Display Panel Control MCUfor Display Panel DC-DC Circuit DC-DCCircuit Compressor MCU CompressorMCU Current Sense Op-amp CurrentSense Op-amp Central and Fan Control MCU Central andFan ControlMCU LDO LDO M M IPD IPD MCD MCD M M Auto Icemaker AutoIcemaker Brushless Brushless Brushless Brushless Stepping Stepping Stepping Stepping LDO LDO Compressor drive circuit MCU power supply circuit Heater control circuit LED driving circuit Sensor input circuit Damper drive circuit Fan drive circuit
MCU power supply circuit

Example of a stable power supply circuit for MCU

Compressor drive circuit

Example of a high-voltage motor driving circuit for a compressor using an IPD

Damper drive circuit

Example of a small size motor driving circuit for damper using MOSFETs

Fan drive circuit

Example of a small size motor driving circuit for fan using MOSFETs

LED driving circuit

Example of an LED driving circuit for indicator using MOSFETs

Sensor input circuit

Example of a circuit using an operational amplifier for amplifying sensor signal

Heater control circuit

Example of a heater control circuit using triac output coupler

子方塊圖

MCU power supply circuit
MCU power supply circuit

Example of a stable power supply circuit for MCU

Example of a stable power supply circuit for MCU
Small surface mount LDO regulator(1)
器件型號
TCR15AG Series
TCR13AG Series
TCR8BM Series
TCR5BM Series
Toshiba Package Name WCSP6F WCSP6F DFN5B DFN5B
IOUT (Max) [mA] 1500 1300 800 500
VOUT [V] 0.6 to 3.6 0.55 to 3.6 0.8 to 3.6 0.8 to 3.6
搜尋產品線
Small surface mount LDO regulator(2)
器件型號
TCR5RG Series
TCR3RM Series
TCR3U Series
TCR2L Series
TAR5 Series
Toshiba Package Name WCSP4F DFN4F WCSP4F SOT-553 (ESV) SOT-25 (SMV)
IOUT (Max) [mA] 500 300 300 200 200
VOUT [V] 0.9 to 5.0 0.9 to 4.5 0.8 to 5.0 0.8 to 3.6 1.5 to 5.0
搜尋產品線
TXZ+TM 3A Series M3H Group
Series TXZ+TM 3A Series
Group M3H Group
搜尋產品線
TXZ+TM 4A Series M4K Group / TX04 Series M470 Group / TX03 Series M370 Group
Series TXZ+TM 4A Series TX04 Series TX03 Series
Group M4K Group M470 Group M370 Group
搜尋產品線
Compressor drive circuit
Compressor drive circuit

Example of a high-voltage motor driving circuit for a compressor using an IPD

Example of a high-voltage motor driving circuit for a compressor using an IPD
TXZ+TM 4A Series M4K Group / TX04 Series M470 Group / TX03 Series M370 Group
Series TXZ+TM 4A Series TX04 Series TX03 Series
Group M4K Group M470 Group M370 Group
搜尋產品線
General purpose operational amplifier
器件型號
TC75S51FU
TC75S103F
Toshiba Package Name SOT-353 (USV) SOT-25 (SMV)
VCC (Max) [V] 7 5.5
VCC, VEE (Max) [V] +/-3.5 +/-2.75
搜尋產品線
High voltage IPD
器件型號
TPD4207F
Toshiba Package name SSOP30
VBB (Max) [V] 600
VCC (Max) [V] 18
IO (Max) [A] 5.0
搜尋產品線

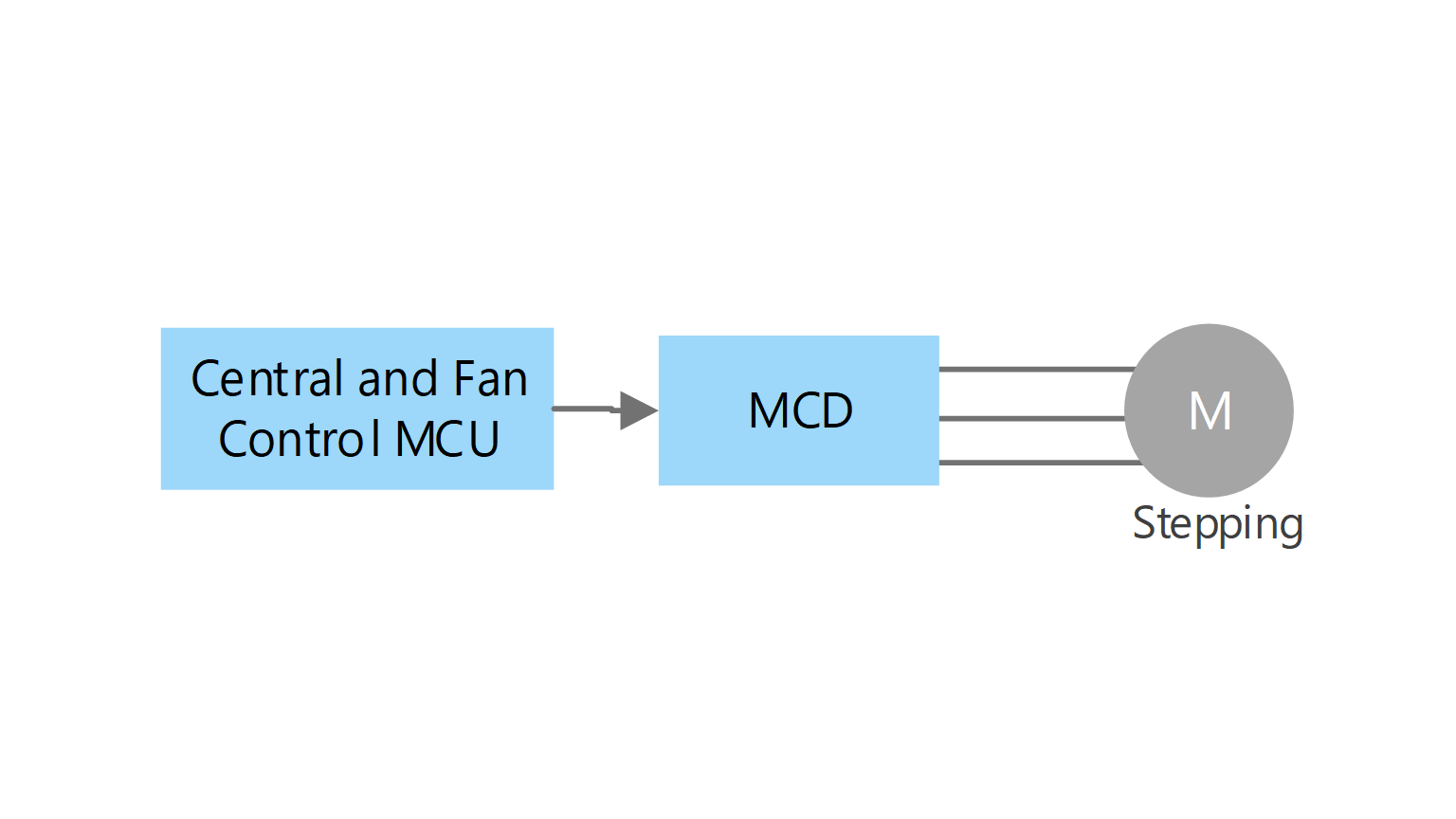

Damper drive circuit
Damper drive circuit

Example of a small size motor driving circuit for damper using MOSFETs

Example of a small size motor driving circuit for damper using MOSFETs
Stepping motor driver
器件型號
TC78H621FNG
Toshiba Package Name P-TSSOP16-0505-0.65-001
VOUT (Max) [V] 18
IOUT (Max) [A] 1.1
VM [V] 2.5 to 15
RON (Typ.) [Ω] 0.8
搜尋產品線
Brushed DC motor driver IC
器件型號
TC78H660FNG
Toshiba Package Name P-TSSOP16-0505-0.65-001
VOUT (Max) [V] 18
IOUT (Max) [A] 2.0
VM [V] 2.5 to 16
RON(Normal) (Typ.) [Ω] 0.48
RON(Large) (Typ.) [Ω]
搜尋產品線
Single-phase brushless DC motor driver IC
器件型號
TC78B002FNG
TC78B002FTG
Toshiba Package Name SSOP16-P-225-0.65B P-WQFN16-0303-0.50-002
VOUT (Max) [V] 18 18
IOUT (Max) [A] 1.5 1.5
VM [V] 5.5 to 16 5.5 to 16
RON (Typ.) [Ω] 1.6 1.6
搜尋產品線
TXZ+TM 3A Series M3H Group
Series TXZ+TM 3A Series
Group M3H Group
搜尋產品線
Fan drive circuit
Fan drive circuit

Example of a small size motor driving circuit for fan using MOSFETs

Example of a small size motor driving circuit for fan using MOSFETs
Small signal MOSFET
器件型號
SSM3K333R
SSM3K335R
SSM3J332R
SSM3J334R
SSM6P39TU
SSM3K35AFS
Toshiba Package Name SOT-23F SOT-23F SOT-23F SOT-23F SOT-363F (UF6) SOT-416 (SSM)
VDSS (Max) [V] 30 30 -30 -30 -20 20
ID (Max) [A] 6.0 6.0 -6.0 -4.0 -1.5 0.25
RDS(ON) (Max) [Ω] @ |VGS| = 4.5 [V] 0.042 0.056 0.05 0.105   1.1
Polarity N-ch N-ch P-ch P-ch P-ch×2 N-ch
搜尋產品線
Stepping motor driver
器件型號
TC78H621FNG
Toshiba Package Name P-TSSOP16-0505-0.65-001
VOUT (Max) [V] 18
IOUT (Max) [A] 1.1
VM [V] 2.5 to 15
RON (Typ.) [Ω] 0.8
搜尋產品線
Brushed DC motor driver IC
器件型號
TC78H660FNG
Toshiba Package Name P-TSSOP16-0505-0.65-001
VOUT (Max) [V] 18
IOUT (Max) [A] 2.0
VM [V] 2.5 to 16
RON(Normal) (Typ.) [Ω] 0.48
RON(Large) (Typ.) [Ω]
搜尋產品線
Single-phase brushless DC motor driver IC
器件型號
TC78B002FNG
TC78B002FTG
Toshiba Package Name SSOP16-P-225-0.65B P-WQFN16-0303-0.50-002
VOUT (Max) [V] 18 18
IOUT (Max) [A] 1.5 1.5
VM [V] 5.5 to 16 5.5 to 16
RON (Typ.) [Ω] 1.6 1.6
搜尋產品線
TXZ+TM 3A Series M3H Group
Series TXZ+TM 3A Series
Group M3H Group
搜尋產品線
LED driving circuit
LED driving circuit

Example of an LED driving circuit for indicator using MOSFETs

Example of an LED driving circuit for indicator using MOSFETs
Small signal MOSFET
器件型號
SSM3K333R
SSM3K335R
SSM3J332R
SSM3J334R
SSM6P39TU
SSM3K35AFS
Toshiba Package Name SOT-23F SOT-23F SOT-23F SOT-23F SOT-363F (UF6) SOT-416 (SSM)
VDSS (Max) [V] 30 30 -30 -30 -20 20
ID (Max) [A] 6.0 6.0 -6.0 -4.0 -1.5 0.25
RDS(ON) (Max) [Ω] @ |VGS| = 4.5 [V] 0.042 0.056 0.05 0.105   1.1
Polarity N-ch N-ch P-ch P-ch P-ch×2 N-ch
搜尋產品線
TXZ+TM 3A Series M3H Group
Series TXZ+TM 3A Series
Group M3H Group
搜尋產品線
Sensor input circuit
Sensor input circuit

Example of a circuit using an operational amplifier for amplifying sensor signal

Example of a circuit using an operational amplifier for amplifying sensor signal
General purpose operational amplifier
器件型號
TC75S51FU
TC75S103F
Toshiba Package Name SOT-353 (USV) SOT-25 (SMV)
VCC (Max) [V] 7 5.5
VCC, VEE (Max) [V] +/-3.5 +/-2.75
搜尋產品線
TXZ+TM 3A Series M3H Group
Series TXZ+TM 3A Series
Group M3H Group
搜尋產品線
Heater control circuit
Heater control circuit

Example of a heater control circuit using triac output coupler

Example of a heater control circuit using triac output coupler
Triac output photocouplers
器件型號
TLP267J
TLP3052A
Toshiba Package Name 4pin SO6 5pin DIP6
BVS (Min) [Vrms] @ t = 60 [s] 3750 5000
Topr [°C] -40 to 100 -40 to 100
搜尋產品線
TXZ+TM 3A Series M3H Group
Series TXZ+TM 3A Series
Group M3H Group
搜尋產品線

解決方案

這些文件說明推薦的半導體產品的要點及其特徵，方便產品選擇。

解決方案
SolutionProposal_Refrigerator / English (PDF:1002KB)
SolutionProposal_Refrigerator / Japanese (PDF:1.2MB)

參考設計

Application block diagram of application circuit of TPD4207F for small compressor motor drive.
Application Circuit of TPD4207F for Small Compressor Motor Drive
This reference design provides an example circuit of small compressor motor drive with combination of TPD4207F and TMPM4K0FSADUG, and design guide of peripheral circuit.
詳細資料
Power supply circuit example of LDO regulator TCR3UG series application for power supply of IoT devices.
LDO Regulator TCR3UG Series Application for Power Supply of IoT Devices
This reference design provides document with low consumption current, PSRR, and dynamic response.The LDO has small package, low consumed power, and fast load transient response.
詳細資料
Power supply circuit example of LDO regulator TCR15AG (fixed output voltage type) application & circuit.
LDO Regulator TCR15AG (fixed output voltage type) Application & Circuit
This reference design provides document with PSRR, dynamic response and controlling output voltage.The LDO has very small package and fixed output voltage for consumer application.
詳細資料
Power supply circuit example of LDO regulator TCR15AGADJ application & circuit.
LDO Regulator TCR15AGADJ Application & Circuit
This reference design provides document with PSRR, dynamic response and controlling output voltage. The LDO has very small package and adjustable output for consumer application.
詳細資料
