Wireless Charger

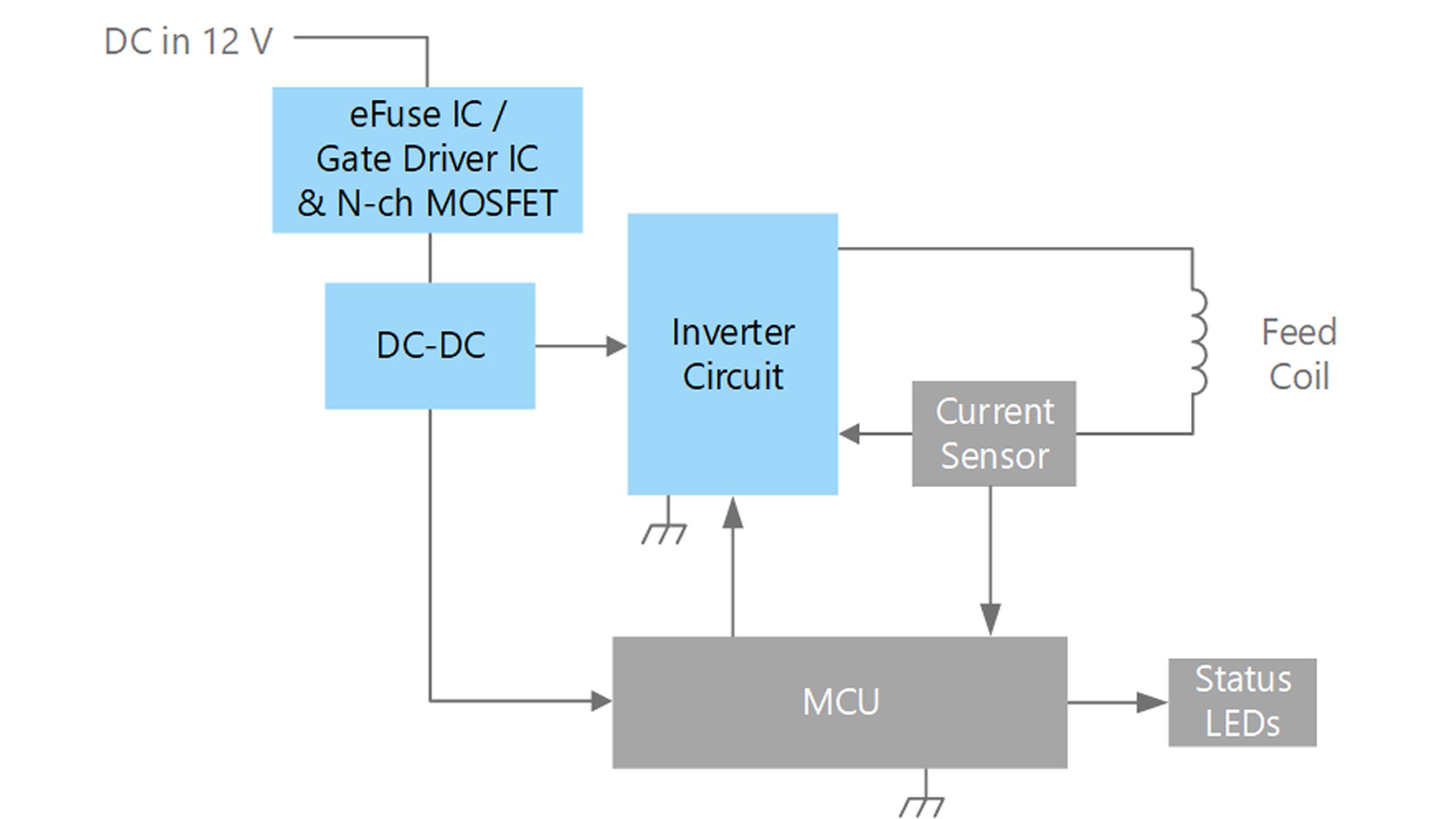

總方塊圖

Wireless Charger

點選總方塊圖中要查看詳細資訊的區域。顯示我們建議的子方塊圖的連結。

IC-driven DC-DC power supply circuit

IC-driven DC-DC power supply circuit(1)

Example of power supply circuit using discrete solution and control IC

IC-driven DC-DC power supply circuit(2)

Example of power supply circuit using discrete solution and control IC

Full-bridge inverter circuit

Example of inverter circuit using discrete solution and control IC

子方塊圖

IC-driven DC-DC power supply circuit

IC-driven DC-DC power supply circuit(1)

Example of power supply circuit using discrete solution and control IC

TVS diode

器件型號	DF2S6P2FU	DF2S12P2FU	DF2S14P2FU	DF2S23P2FU
Toshiba Package Name	SOD-323 (USC)	SOD-323 (USC)	SOD-323 (USC)	SOD-323 (USC)
V_ESD (Max) [kV]	+/-30	+/-30	+/-30	+/-30
I_R (Max) [µA]	0.1	0.1	0.1	0.1
R_dyn (Typ.) [Ω]	0.08	0.08	0.08	0.13
C_T (Typ.) [pF] @ V_R = 0 [V], f = 1 [MHz]	600	280	270	160

搜尋產品線

U-MOS Series MOSFET(1)

器件型號	TPN7R504PL	TPN8R408QM	TPN12008QM
Toshiba Package Name	TSON Advance	TSON Advance	TSON Advance
V_DSS (Max) [V]	40	80	80
I_D (Max) [A]	68	32	26
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.0075	0.0084	0.0123
Polarity	N-ch	N-ch	N-ch

搜尋產品線

U-MOS Series MOSFET(2)

器件型號	TPH7R204PL	TK90S06N1L	TK5R1P08QM	TK6R9P08QM
Toshiba Package Name	SOP Advance	DPAK+	DPAK	DPAK
V_DSS (Max) [V]	40	60	80	80
I_D (Max) [A]	72	90	84	62
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.0072	0.0033	0.0051	0.0069
Polarity	N-ch	N-ch	N-ch	N-ch

搜尋產品線

Electronic fuse (eFuse IC) (1)

器件型號	TCKE800NA	TCKE805NA	TCKE812NA
Toshiba Package Name	WSON10B	WSON10B	WSON10B
V_IN (Max) [V]	18	18	18
R_ON (Typ.) [mΩ]	28	28	28
V_OVC (Typ.) [V]		6.04	15.1
Recovery Operation Type	Auto-retry	Auto-retry	Auto-retry

搜尋產品線

Electronic fuse (eFuse IC) (2)

器件型號	TCKE800NL	TCKE805NL	TCKE812NL	TCKE712BNL
Toshiba Package Name	WSON10B	WSON10B	WSON10B	WSON10
V_IN (Max) [V]	18	18	18	13.2
R_ON (Typ.) [mΩ]	28	28	28	53
V_OVC (Typ.) [V]		6.04	15.1
Recovery Operation Type	Latch	Latch	Latch	Latch

搜尋產品線

N-ch MOSFET gate driver IC(1)

器件型號	TCK401G	TCK402G	TCK420G	TCK421G	TCK422G
Toshiba Package Name	WCSP6E	WCSP6E	WCSP6G	WCSP6G	WCSP6G
V_{OVL_FA} (Typ.) [V]			27.56	23.14	14.17
V_{OVL_RI} (Typ.) [V]			27.73	23.26	14.29
V_GS (Typ.) [V]	8.5	8.5	10	10	10

搜尋產品線

N-ch MOSFET gate driver IC(2)

器件型號	TCK423G	TCK424G	TCK425G
Toshiba Package Name	WCSP6G	WCSP6G	WCSP6G
V_{OVL_FA} (Typ.) [V]	14.17	10.71	6.19
V_{OVL_RI} (Typ.) [V]	14.29	10.83	6.31
V_GS (Typ.) [V]	5.6	5.6	5.6

搜尋產品線

IC-driven DC-DC power supply circuit(2)

Example of power supply circuit using discrete solution and control IC

Load switch IC (1)
Load switch IC(2)
Small surface mount LDO regulator(1)
Small surface mount LDO regulator(2)

Load switch IC (1)

器件型號	TCK22921G	TCK22922G	TCK22923G	TCK22925G	TCK127BG
Toshiba Package Name	WCSP6E	WCSP6E	WCSP6E	WCSP6E	WCSP4G
V_IN (Max) [V]	6.0	6.0	6.0	6.0	6.0
I_OUT(DC) (Max) [A]	2.0	2.0	2.0	2.0	1.0

搜尋產品線

Load switch IC(2)

器件型號	TCK22971G	TCK22972G	TCK22973G	TCK22974G	TCK22975G
Toshiba Package Name	WCSP6E	WCSP6E	WCSP6E	WCSP6E	WCSP6E
V_IN (Max) [V]	6.0	6.0	6.0	6.0	6.0
I_OUT(DC) (Max) [A]	2.0	2.0	2.0	2.0	2.0

搜尋產品線

Small surface mount LDO regulator(1)

器件型號	TCR15AG Series	TCR13AG Series	TCR8BM Series	TCR5BM Series
Toshiba Package Name	WCSP6F	WCSP6F	DFN5B	DFN5B
I_OUT (Max) [mA]	1500	1300	800	500
V_OUT [V]	0.6 to 3.6	0.55 to 3.6	0.8 to 3.6	0.8 to 3.6

搜尋產品線

Small surface mount LDO regulator(2)

器件型號	TCR5RG Series	TCR3RM Series	TCR3U Series	TCR2L Series	TAR5 Series
Toshiba Package Name	WCSP4F	DFN4F	WCSP4F	SOT-553 (ESV)	SOT-25 (SMV)
I_OUT (Max) [mA]	500	300	300	200	200
V_OUT [V]	0.9 to 5.0	0.9 to 4.5	0.8 to 5.0	0.8 to 3.6	1.5 to 5.0

搜尋產品線

Full-bridge inverter circuit

Example of inverter circuit using discrete solution and control IC

Schottky barrier diode(1)
Schottky barrier diode(2)
U-MOS Series MOSFET(1)
U-MOS Series MOSFET(2)

Schottky barrier diode(1)

器件型號	CUHS20F30	CUHS20F40
Toshiba Package Name	SOD-323HE (US2H)	SOD-323HE (US2H)
V_RRM (Max) [V]
V_R (Max) [V]	30	40
C_T (Typ.) [pF]	380	300

搜尋產品線

Schottky barrier diode(2)

器件型號	CUHS10F60	CUHS15F60	CUHS20F60	CUHS15S60	CUHS20S60
Toshiba Package Name	SOD-323HE (US2H)	SOD-323HE (US2H)	SOD-323HE (US2H)	SOD-323HE (US2H)	SOD-323HE (US2H)
V_RRM (Max) [V]
V_R (Max) [V]	60	60	60	60	60
C_T (Typ.) [pF]	130	130	300	130	290

搜尋產品線

U-MOS Series MOSFET(1)

器件型號	TPN7R504PL	TPN8R408QM	TPN12008QM
Toshiba Package Name	TSON Advance	TSON Advance	TSON Advance
V_DSS (Max) [V]	40	80	80
I_D (Max) [A]	68	32	26
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.0075	0.0084	0.0123
Polarity	N-ch	N-ch	N-ch

搜尋產品線

U-MOS Series MOSFET(2)

器件型號	TPH7R204PL	TK90S06N1L	TK5R1P08QM	TK6R9P08QM
Toshiba Package Name	SOP Advance	DPAK+	DPAK	DPAK
V_DSS (Max) [V]	40	60	80	80
I_D (Max) [A]	72	90	84	62
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.0072	0.0033	0.0051	0.0069
Polarity	N-ch	N-ch	N-ch	N-ch

搜尋產品線

參考設計

TCR3EMxxA / 3DMxxA / 3LMxxA Series LDO Regulators With 300mA Output in Small DFN4D Package for Power Supply Circuit Applications

該產品線包括三個系列的小型封裝LDO穩壓器，這些產品因其特點（標準型、低壓差型和低電流消耗型）而非常適合移動設備等。我們提供了每個系列的特點、設計要點和使用方法的描述。

詳細資料

Power multiplexer circuit

In this reference design, a Power multiplexer circuit with 2 input and 1 output is implemented on a small PCB. MOSFET gate driver ICs, eFuse ICs, zener diodes and small package MOSFETs selected from Toshiba's diverse lineup are used create ideal diode like characteristics with BBM and MBB switching.

詳細資料

Non-Isolated Buck DC-DC Converter

This reference design provides design guide, data and other contents of multiple non-isolated buck DC-DC converter power supplies. Multiple variations of the power supply are optimized for various outputs, loads and board mounting areas.

詳細資料

LDO Regulator TCR3UG Series Application for Power Supply of IoT Devices

This reference design provides document with low consumption current, PSRR, and dynamic response.The LDO has small package, low consumed power, and fast load transient response.

詳細資料

LDO Regulator TCR15AG (fixed output voltage type) Application & Circuit

This reference design provides document with PSRR, dynamic response and controlling output voltage.The LDO has very small package and fixed output voltage for consumer application.

詳細資料

LDO Regulator TCR15AGADJ Application & Circuit

This reference design provides document with PSRR, dynamic response and controlling output voltage. The LDO has very small package and adjustable output for consumer application.

詳細資料
