LDO Regulator TCR15AGADJ Application & Circuit

This reference design provides document with PSRR, dynamic response and controlling output voltage. The LDO has very small package and adjustable output for consumer application.

Power supply circuit example of LDO regulator TCR15AGADJ application & circuit.

特性

  • Ultra Small package WCSP6F (0.8 mm x 1.2 mm (typ.), t: 0.33 mm (max))
  • Wide range Output Voltage (Fixed Output Voltage 0.65 V to 3.6 V ,Adjustable Output Voltage 0.6 V to 3.6 V)
  • Fast load transient response -100 / +115 mV (typ.)@ 0.01 A⇔1.5 A, COUT = 4.7 μF
  • High Ripple rejection ratio 95 dB (typ.)@1 kHz
  • Overcurrent protection function
  • Thermal shutdown function
  • Auto-discharge function
  • Inrush current reduction function ( output voltage soft start )
  • Under voltage lockout function: 0.5 V (Typ.)

說明

  • The TCR15AGADJ is available in capable of driving up to 1.5 A, this device is ideal for portable applications that require high-density board assembly such as cellular phones.
  • This voltage regulator is available in adjustable output voltage from 0.6 V to 3.6 V.
  • As small ceramic input and output capacitors can be used with the TCR15AGADJ.

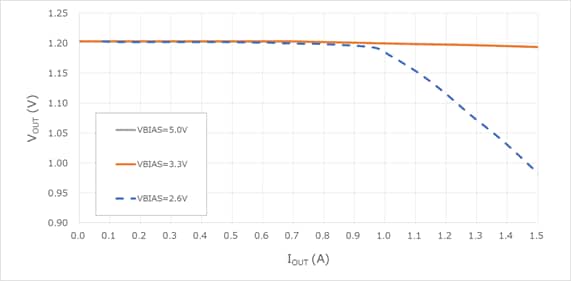

Dropout voltage characteristics of LDO regulator TCR15AGADJ application & circuit.
Dropout voltage characteristics

設計文件

供設計人員使用的材料，例如電路操作概述和設計注意事項的解釋。請點擊每個選項以查看內容。

設計數據

提供可載入到EDA工具中的電路資料、PCB佈局資料以及PCB製造中使用的資料。來自多個工具供應商的可用格式。您可以使用喜歡的工具來自由的編輯它。

使用東芝項目/產品

器件型號 器件目錄 使用部位・數量 說明
Low Dropout (LDO) Linear Voltage Regulator 1 1500 mA Adjustable Output LDO Regulator, 0.6 to 3.6 V, WCSP6F
