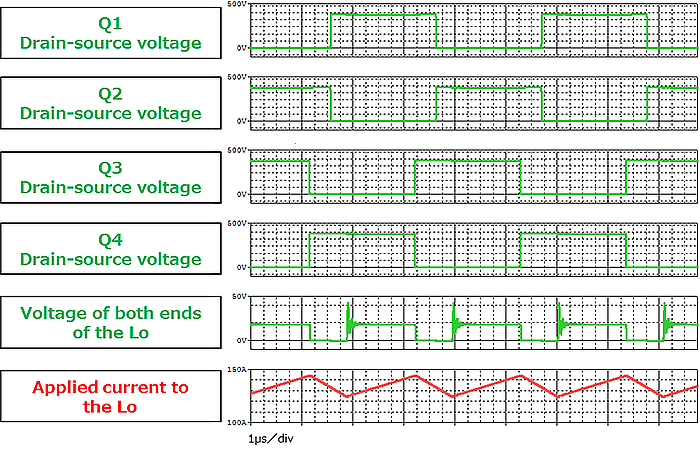

This reference design provides OrCAD® based simulation circuit, simulation results and design guide. This is for designing phase-shift full bridge (PSFB) topology of AC-DC power supply.
|Input voltage||AC 380V|
|Output voltage||DC 12V|
|Power MOSFET (N-ch 500V<VDSS≤700V)||Primary side・4||N-ch MOSFET, 600 V, 0.14 Ω@10V, TO-247, DTMOSⅣ-H|
|Power MOSFET (N-ch single 30V<VDSS≤60V)||Secondary side synchronous rectification・12||N-ch MOSFET, 40 V, 0.0037 Ω@10V, SOP Advance, U-MOSⅨ-H|
