Active Clamp Forward DC-DC Power Supply Basic Simulation Circuit

This reference design provides OrCAD® based simulation circuit, simulation results and design guide. This is for designing Active Clamp Forward topology of DC-DC power supply.

Circuit of active clamp forward DC-DC power supply basic simulation circuit.

特性

  • Bundled simulation circuit and device models.
  • Able to edit power supply specificatoin and devices freely.
  • Able to set power supply specificatoin and ciruit parameters on OrCAD®

說明

  • Basic simulation circuit of Active Clamp Forward DC-DC power supply that can operate on OrCAD®.
Input voltage DC 24 V
Output voltage DC 3.3 V
Output power 70 W

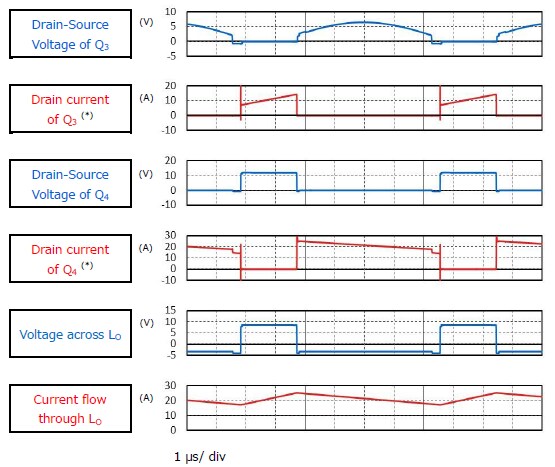

Waveforms of active clamp forward DC-DC power supply basic simulation circuit.
Waveforms

設計文件

設計・文件 包含以下文件。

設計數據

設計數據包含以下內容。

使用東芝項目/產品

器件型號 器件目錄 使用部位・數量 說明
Power MOSFET (P-ch single) Primary side・1 P-ch MOSFET, -60 V, -5.0 A, 0.0395 Ω@10V, PS-8
Power MOSFET (N-ch single VDSS≤30V) Secondary side
synchronous rectification・2		 N-ch MOSFET, 30 V, 0.002 Ω@10V, SOP Advance, U-MOSⅨ-H
Power MOSFET (N-ch single 30V<VDSS≤60V) Primary side・1 N-ch MOSFET, 60 V, 0.0048 Ω@10V, TSON Advance, U-MOSⅨ-H
