Half-Bridge (HB) AC-DC Power Supply Basic Simulation Circuit

This reference design provides OrCAD® based simulation circuit, simulation results and design guide. This is for designing Half-Bridge (HB) topology of AC-DC power supply.

Circuit

特性

  • Bundled simulation circuit and device models.
  • Able to edit power supply specificatoin and devices freely.
  • Able to set power supply specificatoin and ciruit parameters on OrCAD®

說明

  • Basic simulation circuit of Half-Bridge AC-DC power supply that can operate on OrCAD®.

說明

Input voltage AC 380 V
Output voltage DC 24 V
Output power 300 W

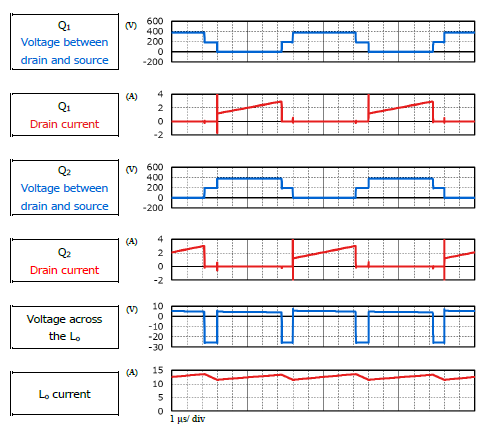

Waveforms
Waveforms

Design Documents

Materials for designers, such as an overview of circuit operation and explanations of design considerations. Please click on each tab to view the contents.

Design Data

Provides circuit data that can be loaded into EDA tools, PCB layout data, and data used in PCB manufacturing. Available in formats from multiple tool vendors. You can freely edit it with your preferred tool.

使用東芝項目/產品

器件型號 器件目錄 使用部位・數量 說明
Power MOSFET (N-ch 500V<VDSS≤700V) Primary side・2 N-ch MOSFET, 600 V, 0.38 Ω@10V, TO-220SIS, DTMOSⅣ
Power MOSFET (N-ch 150V<VDSS≤250V) Secondary side
synchronous rectification・6		 N-ch MOSFET, 200 V, 0.029 Ω@10V, SOP Advance, U-MOSⅧ-H

Related Documents

We provide materials useful for designing and considering similar circuits, such as application notes for installed products. Please click on each tab to view the contents.
