Automotive Electric Pump (Water/Oil)

總方塊圖

Automotive Electric Pump (Water/Oil)

點選總方塊圖中要查看詳細資訊的區域。顯示我們建議的子方塊圖的連結。

Driving circuit for DC motor

Driving circuit for brushed DC motor (N-ch type)

Example of a brushed DC motor drive circuit (N-ch type) for electric pump (Water/Oil)

Driving circuit for brushless DC motor (N-ch type)

Example of a three-phase brushless DC motor drive circuit (N-ch type) for electric pump (Water/Oil)

Driving circuit for brushless DC motor (N-ch/P-ch type)

Example of a three-phase brushless DC motor drive circuit (N-ch/P-ch type) for electric pump (Water/Oil)

Power supply ON/OFF control and reverse connection protection circuit

Power supply ON/OFF control and reverse connection protection circuit (P-ch type)

Example of ON/OFF control and reverse connection protection circuit using P-ch MOSFET for 12 V power lines.

Power supply ON/OFF control and reverse connection protection circuit (N-ch type)

Example of ON/OFF control and reverse connection protection circuit using N-ch MOSFET for 12 V power lines.

子方塊圖

Driving circuit for DC motor

Driving circuit for brushed DC motor (N-ch type)

Example of a brushed DC motor drive circuit (N-ch type) for electric pump (Water/Oil)

U-MOS Series 40 V N-ch MOSFET
U-MOS Series 60 V N-ch MOSFET
Brushed DC motor gate driver
Power supply IC (for MCU)

U-MOS Series 40 V N-ch MOSFET

器件型號	XPN3R804NC	TK1R4S04PB	XPHR7904PS	TPWR7904PB	XPJR6604PB	XPQR3004PB
Toshiba Package Name	TSON Advance(WF)	DPAK+	SOP Advance(WF)	DSOP Advance(WF)L	S-TOGL	L-TOGL
V_DSS (Max) [V]	40	40	40	40	40	40
I_D (Max) [A]	40	120	150	150	200	400
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.0038	0.00135	0.00079	0.00079	0.00066	0.00030
Polarity	N-ch	N-ch	N-ch	N-ch	N-ch	N-ch

搜尋產品線

U-MOS Series 60 V N-ch MOSFET

器件型號	XPN12006NC	XPN6R706NC	XPH3R206NC	XPH2R106NC	TK90S06N1L
Toshiba Package Name	TSON Advance(WF)	TSON Advance(WF)	SOP Advance(WF)	SOP Advance(WF)	DPAK+
V_DSS (Max) [V]	60	60	60	60	60
I_D (Max) [A]	20	40	70	110	90
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.0120	0.0067	0.0032	0.0021	0.0033
Polarity	N-ch	N-ch	N-ch	N-ch	N-ch

搜尋產品線

Brushed DC motor gate driver

器件型號	TB9057FG
Toshiba Package Name	LQFP48-P-0707-0.50
Product Category	H-bridge driver for automobile

搜尋產品線

Power supply IC (for MCU)

器件型號	TB9005FNG
Toshiba Package Name	SSOP20
Product Category	Automobile CPU regulator, built-in watchdog timer

搜尋產品線

Driving circuit for brushless DC motor (N-ch type)

Example of a three-phase brushless DC motor drive circuit (N-ch type) for electric pump (Water/Oil)

U-MOS Series 40 V N-ch MOSFET
U-MOS Series 60 V N-ch MOSFET
Gate driver (for motor)
Brushless DC motor gate driver
Power supply IC (for MCU)

U-MOS Series 40 V N-ch MOSFET

器件型號	XPN3R804NC	TK1R4S04PB	XPHR7904PS	TPWR7904PB	XPJR6604PB	XPQR3004PB
Toshiba Package Name	TSON Advance(WF)	DPAK+	SOP Advance(WF)	DSOP Advance(WF)L	S-TOGL	L-TOGL
V_DSS (Max) [V]	40	40	40	40	40	40
I_D (Max) [A]	40	120	150	150	200	400
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.0038	0.00135	0.00079	0.00079	0.00066	0.00030
Polarity	N-ch	N-ch	N-ch	N-ch	N-ch	N-ch

搜尋產品線

U-MOS Series 60 V N-ch MOSFET

器件型號	XPN12006NC	XPN6R706NC	XPH3R206NC	XPH2R106NC	TK90S06N1L
Toshiba Package Name	TSON Advance(WF)	TSON Advance(WF)	SOP Advance(WF)	SOP Advance(WF)	DPAK+
V_DSS (Max) [V]	60	60	60	60	60
I_D (Max) [A]	20	40	70	110	90
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.0120	0.0067	0.0032	0.0021	0.0033
Polarity	N-ch	N-ch	N-ch	N-ch	N-ch

搜尋產品線

Gate driver (for motor)

器件型號	TPD7211F	TPD7212F	TPD7212FN
Toshiba Package name	PS-8	WQFN32	SSOP30
V_BB (Max) [V]
V_CC (Max) [V]
I_O (Max) [A]	+0.5/-0.5	+1.5/-1	+1.5/-1

搜尋產品線

Brushless DC motor gate driver

器件型號	TB9081FG	TB9083FTG	TB9084FTG
Toshiba Package Name	QFP64-P-1010-0.50C	P-VQFN48-0707-0.50-005	P-VQFN36-0606-0.50-003
Product Category	Pre-driver for automobile	Pre-driver for automobile	Pre-driver for automobile

搜尋產品線

Power supply IC (for MCU)

器件型號	TB9005FNG
Toshiba Package Name	SSOP20
Product Category	Automobile CPU regulator, built-in watchdog timer

搜尋產品線

Driving circuit for brushless DC motor (N-ch/P-ch type)

Example of a three-phase brushless DC motor drive circuit (N-ch/P-ch type) for electric pump (Water/Oil)

U-MOS Series 40 V N-ch MOSFET
U-MOS Series 60 V N-ch MOSFET
U-MOS Series -40V, -60V P-ch power MOSFET
Brushless DC motor pre driver
Power supply IC (for MCU)

U-MOS Series 40 V N-ch MOSFET

器件型號	XPN3R804NC	TK1R4S04PB	XPHR7904PS	TPWR7904PB	XPJR6604PB	XPQR3004PB
Toshiba Package Name	TSON Advance(WF)	DPAK+	SOP Advance(WF)	DSOP Advance(WF)L	S-TOGL	L-TOGL
V_DSS (Max) [V]	40	40	40	40	40	40
I_D (Max) [A]	40	120	150	150	200	400
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.0038	0.00135	0.00079	0.00079	0.00066	0.00030
Polarity	N-ch	N-ch	N-ch	N-ch	N-ch	N-ch

搜尋產品線

U-MOS Series 60 V N-ch MOSFET

器件型號	XPN12006NC	XPN6R706NC	XPH3R206NC	XPH2R106NC	TK90S06N1L
Toshiba Package Name	TSON Advance(WF)	TSON Advance(WF)	SOP Advance(WF)	SOP Advance(WF)	DPAK+
V_DSS (Max) [V]	60	60	60	60	60
I_D (Max) [A]	20	40	70	110	90
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.0120	0.0067	0.0032	0.0021	0.0033
Polarity	N-ch	N-ch	N-ch	N-ch	N-ch

搜尋產品線

U-MOS Series -40V, -60V P-ch power MOSFET

器件型號	XPN9R614MC	XPH3R114MC	XPH8R316MC	TJ90S04M3L
Toshiba Package Name	TSON Advance(WF)	SOP Advance(WF)	SOP Advance(WF)	DPAK+
V_DSS (Max) [V]	-40	-40	-60	-40
I_D (Max) [A]	-40	-100	-90	-90
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.0096	0.0031	0.0083	0.0043
Polarity	P-ch	P-ch	P-ch	P-ch

搜尋產品線

Brushless DC motor pre driver

器件型號	TB9061AFNG	TB9062FNG	TB9067FNG
Toshiba Package Name	SSOP24-P-300-0.65A	SSOP24-P-300-0.65A	SSOP24-P-300-0.65A
Product Category	Pre-driver for automobile	Pre-driver for automobile	Pre-driver for automobile

搜尋產品線

Power supply IC (for MCU)

器件型號	TB9005FNG
Toshiba Package Name	SSOP20
Product Category	Automobile CPU regulator, built-in watchdog timer

搜尋產品線

Power supply ON/OFF control and reverse connection protection circuit

Power supply ON/OFF control and reverse connection protection circuit (P-ch type)

Example of ON/OFF control and reverse connection protection circuit using P-ch MOSFET for 12 V power lines.

U-MOS Series -40V, -60V P-ch power MOSFET
General purpose small signal MOSFET
General purpose small signal bipolar transistor
Small signal bias resistor built-in transistor (BRT)
TVS diode (for CAN communication)
Power supply IC (for MCU)

U-MOS Series -40V, -60V P-ch power MOSFET

器件型號	XPN9R614MC	XPH3R114MC	XPH8R316MC	TJ90S04M3L
Toshiba Package Name	TSON Advance(WF)	SOP Advance(WF)	SOP Advance(WF)	DPAK+
V_DSS (Max) [V]	-40	-40	-60	-40
I_D (Max) [A]	-40	-100	-90	-90
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.0096	0.0031	0.0083	0.0043
Polarity	P-ch	P-ch	P-ch	P-ch

搜尋產品線

General purpose small signal MOSFET

器件型號	SSM3K7002KF	SSM3J168F	SSM3J66MFV
Toshiba Package Name	SOT-346 (S-Mini)	SOT-346 (S-Mini)	SOT-723 (VESM)
V_DSS (Max) [V]	60	-60	-20
I_D (Max) [A]	0.4	-0.4	-0.8
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 4.5 [V]	1.75	1.9	0.39
Polarity	N-ch	P-ch	P-ch

搜尋產品線

General purpose small signal bipolar transistor

器件型號	2SA1832	2SC4738	2SC4116	2SA1586	2SC2712	2SA1162
Toshiba Package Name	SOT-416 (SSM)	SOT-416 (SSM)	SOT-323 (USM)	SOT-323 (USM)	SOT-346 (S-Mini)	SOT-346 (S-Mini)
V_CEO (Max) [V]	-50	50	50	-50	50	-50
I_C (Max) [A]	-0.15	0.15	0.15	-0.15	0.15	-0.15
Polarity	PNP	NPN	NPN	PNP	NPN	PNP

搜尋產品線

Small signal bias resistor built-in transistor (BRT)

器件型號	RN1907FE	RN2907FE	RN1901	RN2901
Toshiba Package Name	SOT-563 (ES6)	SOT-563 (ES6)	SOT-363 (US6)	SOT-363 (US6)
V_CEO (Q1) (Max) [V]	50	-50	50	-50
V_CEO (Q2) (Max) [V]	50	-50	50	-50
I_C (Q1) (Max) [A]	0.1	-0.1	0.1	-0.1
I_C (Q2) (Max) [A]	0.1	-0.1	0.1	-0.1
Polarity (Q1)	NPN	PNP	NPN	PNP
Polarity (Q2)	NPN	PNP	NPN	PNP

搜尋產品線

TVS diode (for CAN communication)

器件型號	DF3D18FU	DF3D29FU	DF3D36FU
Toshiba Package Name	SOT-323 (USM)	SOT-323 (USM)	SOT-323 (USM)
V_ESD (Max) [kV]	+/-30	+/-25	+/-20
I_R (Max) [µA]	0.1	0.1	0.1
R_dyn (Typ.) [Ω]	0.8	1.1	1.5
C_T (Typ.) [pF] @ V_R = 0 [V], f = 1 [MHz]	9	9	6.5

搜尋產品線

Power supply IC (for MCU)

器件型號	TB9005FNG
Toshiba Package Name	SSOP20
Product Category	Automobile CPU regulator, built-in watchdog timer

搜尋產品線

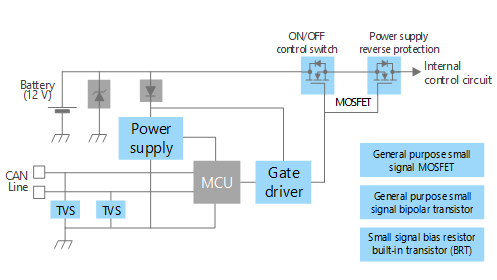

Power supply ON/OFF control and reverse connection protection circuit (N-ch type)

Example of ON/OFF control and reverse connection protection circuit using N-ch MOSFET for 12 V power lines.

U-MOS Series 40 V N-ch MOSFET
Gate driver (for switch)
General purpose small signal MOSFET
General purpose small signal bipolar transistor
Small signal bias resistor built-in transistor (BRT)
TVS diode (for CAN communication)
Power supply IC (for MCU)

U-MOS Series 40 V N-ch MOSFET

器件型號	XPN3R804NC	TK1R4S04PB	XPHR7904PS	TPWR7904PB	XPJR6604PB	XPQR3004PB
Toshiba Package Name	TSON Advance(WF)	DPAK+	SOP Advance(WF)	DSOP Advance(WF)L	S-TOGL	L-TOGL
V_DSS (Max) [V]	40	40	40	40	40	40
I_D (Max) [A]	40	120	150	150	200	400
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 10.0 [V]	0.0038	0.00135	0.00079	0.00079	0.00066	0.00030
Polarity	N-ch	N-ch	N-ch	N-ch	N-ch	N-ch

搜尋產品線

Gate driver (for switch)

器件型號	TPD7104AF	TPD7106F	TPD7107F
Toshiba Package name	PS-8	SSOP16	WSON10A
V_BB (Max) [V]
V_CC (Max) [V]
I_O (Max) [A]	+5mA/ Internally Limited		Internally Limited /-5m

搜尋產品線

General purpose small signal MOSFET

器件型號	SSM3K7002KF	SSM3J168F	SSM3J66MFV
Toshiba Package Name	SOT-346 (S-Mini)	SOT-346 (S-Mini)	SOT-723 (VESM)
V_DSS (Max) [V]	60	-60	-20
I_D (Max) [A]	0.4	-0.4	-0.8
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 4.5 [V]	1.75	1.9	0.39
Polarity	N-ch	P-ch	P-ch

搜尋產品線

General purpose small signal bipolar transistor

器件型號	2SA1832	2SC4738	2SC4116	2SA1586	2SC2712	2SA1162
Toshiba Package Name	SOT-416 (SSM)	SOT-416 (SSM)	SOT-323 (USM)	SOT-323 (USM)	SOT-346 (S-Mini)	SOT-346 (S-Mini)
V_CEO (Max) [V]	-50	50	50	-50	50	-50
I_C (Max) [A]	-0.15	0.15	0.15	-0.15	0.15	-0.15
Polarity	PNP	NPN	NPN	PNP	NPN	PNP

搜尋產品線

Small signal bias resistor built-in transistor (BRT)

器件型號	RN1907FE	RN2907FE	RN1901	RN2901
Toshiba Package Name	SOT-563 (ES6)	SOT-563 (ES6)	SOT-363 (US6)	SOT-363 (US6)
V_CEO (Q1) (Max) [V]	50	-50	50	-50
V_CEO (Q2) (Max) [V]	50	-50	50	-50
I_C (Q1) (Max) [A]	0.1	-0.1	0.1	-0.1
I_C (Q2) (Max) [A]	0.1	-0.1	0.1	-0.1
Polarity (Q1)	NPN	PNP	NPN	PNP
Polarity (Q2)	NPN	PNP	NPN	PNP

搜尋產品線

TVS diode (for CAN communication)

器件型號	DF3D18FU	DF3D29FU	DF3D36FU
Toshiba Package Name	SOT-323 (USM)	SOT-323 (USM)	SOT-323 (USM)
V_ESD (Max) [kV]	+/-30	+/-25	+/-20
I_R (Max) [µA]	0.1	0.1	0.1
R_dyn (Typ.) [Ω]	0.8	1.1	1.5
C_T (Typ.) [pF] @ V_R = 0 [V], f = 1 [MHz]	9	9	6.5

搜尋產品線

Power supply IC (for MCU)

器件型號	TB9005FNG
Toshiba Package Name	SSOP20
Product Category	Automobile CPU regulator, built-in watchdog timer

搜尋產品線
