Bridgeless PFC Power Supply Basic Simulation Circuit
This reference design provides OrCAD® based simulation circuit, simulation results and design guide. This is for designing bridgeless PFC power supply.
Bundled simulation circuit and device models
Able to edit power supply specificatoin and devices freely
Able to set powef supply specificatoin and ciruit parameters on OrCAD®

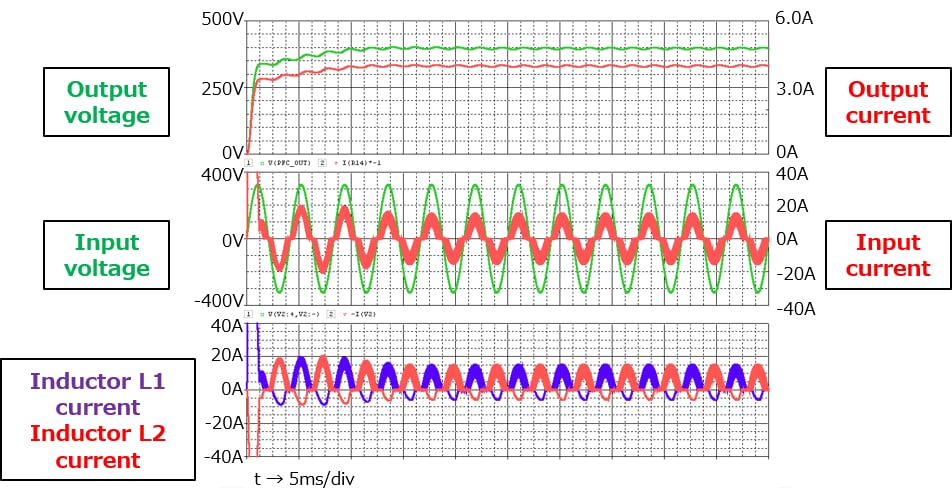

Basic simulation circuit of bridgeless PFC power supply that can operate on OrCAD®.
