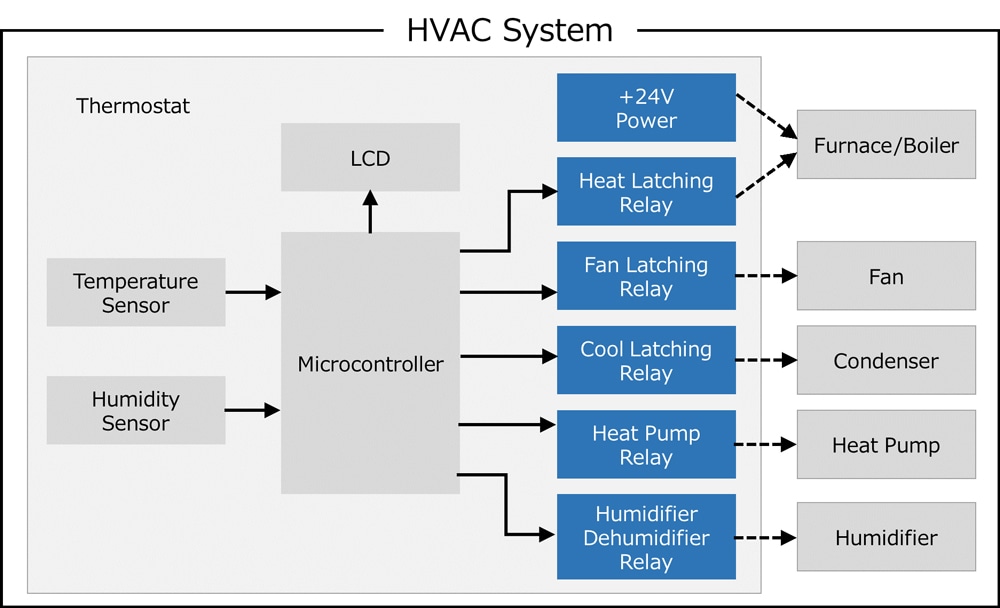

Solid state relay with photovoltaic-output coupler, TLP3906, and MOSFET, TPH1R306PL. Describes design guidance of solid state relay circuit as replacement of mechanical relay.
設計・文件 包含以下文件。
器件型號 | 器件目錄 | 使用部位・數量 | 說明 |
---|---|---|---|
Photocoupler (photovoltaic output) | Driving MOSFET・1 | Photocoupler (photovoltaic output), VOC=7 V / ISC=12 μA, 3750 Vrms, 4pin SO6 | |
Power MOSFET (N-ch single 30V<VDSS≤60V) | Current flow line・1 | N-ch MOSFET, 60 V, 0.00134 Ω@10V, SOP Advance, U-MOSⅨ-H |
