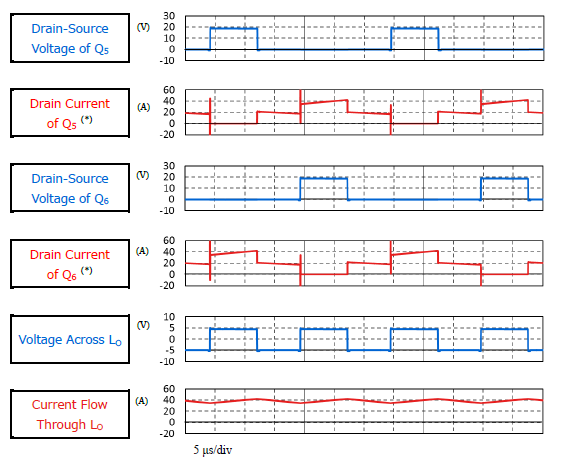

This reference design provides OrCAD® based simulation circuit, simulation results and design guide. This is for designing Full-Bridge topology of DC-DC power supply.
|Input voltage||DC 24 V|
|Output voltage||DC 5 V|
|Output power||200 W|
|Power MOSFET (N-ch single 30V<VDSS≤60V)||Secondary side
|N-ch MOSFET, 40 V, 0.00124 Ω@10V, SOP Advance, U-MOSⅨ-H|
|Power MOSFET (N-ch single 30V<VDSS≤60V)||Primary side・4||N-ch MOSFET, 60 V, 0.0114 Ω@10V, TSON Advance, U-MOSⅨ-H|
