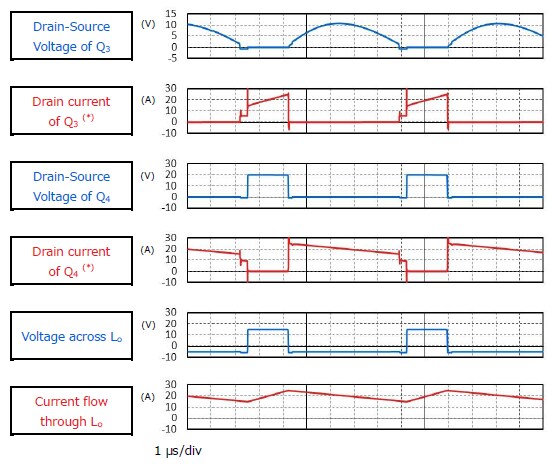

This reference design provides OrCAD® based simulation circuit, simulation results and design guide. This is for designing Active Clamp Forward topology of AC-DC power supply.
|Input voltage||DC 200 V|
|Output voltage||DC 5 V|
|Output power||100 W|
|Power MOSFET (N-ch 500V<VDSS≤700V)||Primary side・1||N-ch MOSFET, 600 V, 0.38 Ω@10V, TO-220SIS, DTMOSⅣ|
|Power MOSFET (N-ch single VDSS≤30V)||Secondary side
|N-ch MOSFET, 30 V, 0.002 Ω@10V, SOP Advance, U-MOSⅨ-H|
