Application circuit of low noise Op-amp TC75S67TU for pulse sensor

The application circuit to the pulse sensor of the photon detection system of low noise level Op-amp TC75S67TU. Describes design guidance of the small pulse sensor circuit

Circuit

特性

  • Super low noize level
  • Wearable on body
  • Small board size

說明

  • The pulse sensor circuit using low noise Op-amp TC75S67TU
  • Introduction of application of the TC75S67TU for pulse sensor
  • Describes usage and precautions of the TC75S67TU in designing of pulse sensor

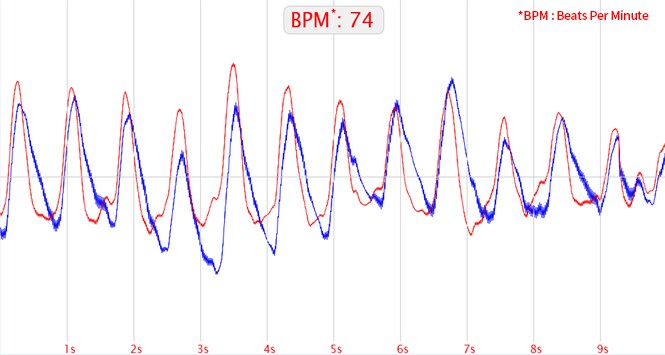

Waveforms
Waveforms

Design Documents

Materials for designers, such as an overview of circuit operation and explanations of design considerations. Please click on each tab to view the contents.

Design Data

Provides circuit data that can be loaded into EDA tools, PCB layout data, and data used in PCB manufacturing. Available in formats from multiple tool vendors. You can freely edit it with your preferred tool.

使用東芝項目/產品

器件型號 器件目錄 使用部位・數量 說明
Op-amp (CMOS) I-V converter・1
amplifier・1		 Single Op-amp (CMOS), 5.5 V, +/-2.75 V, SOT-353F(UFV)
Op-amp (CMOS) Bias voltage generater Single Op-amp (CMOS), 7 V, +/-3.5 V, SOT-353(USV)
