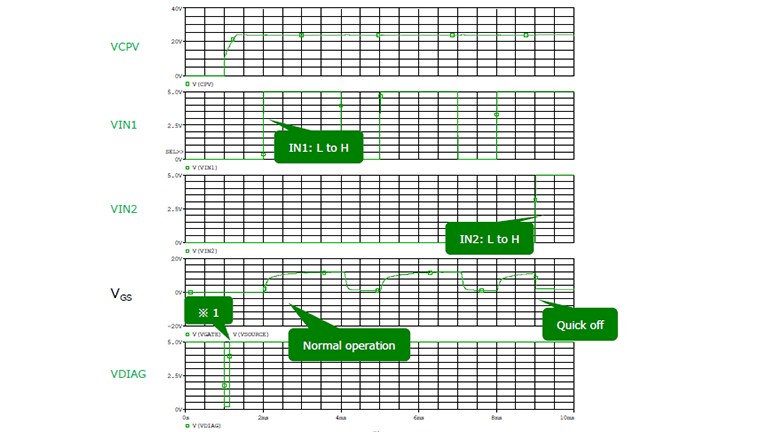

This reference design provides examples of application circuit and simulation for TPD7106F which features power supply reverse connection, charge pumpccircuit and others.
供設計人員使用的材料,例如電路操作概述和設計注意事項的解釋。請點擊每個選項以查看內容。
提供可載入到EDA工具中的電路資料、PCB佈局資料以及PCB製造中使用的資料。來自多個工具供應商的可用格式。您可以使用喜歡的工具來自由的編輯它。
器件型號 | 器件目錄 | 使用部位・數量 | 說明 |
---|---|---|---|
Intelligent power device (High side power-MOSFET driver with built-in charge pump) | 1 | Automotive Gate driver for High-side switch, SSOP16 | |
Power MOSFET (N-ch single 30V<VDSS≤60V) | 6 | N-ch MOSFET, 40 V, 250 A, 0.00074 Ω@10V, TO-220SM(W) |
