Automotive 3kW 48V-12V Bidirectional DC-DC Converter

In recent years, xEV (hybrid-electric vehicles and battery-powered electric vehicles) are becoming popular to reduce greenhouse-gas emissions. The xEV may have a 48V battery inside in addition to a 12V battery to reduce electrical power loss.
This design is a bidirectional DC-DC converter required for the applications which have the 48V battery and the 12V battery. It achieves high efficiency operation by using Toshiba's automotive MOSFETs which have low on-resistance and high heat dissipation.
Design tips on each portion of the circuit, method of operation, and design information such as circuit diagrams and PCB patterns are available, please use them for your design.

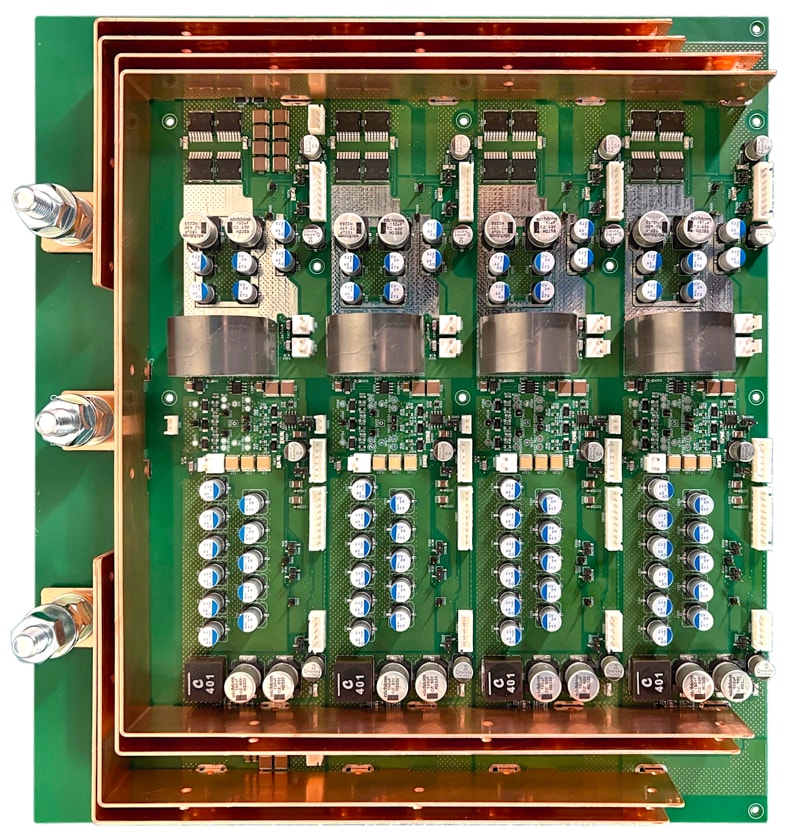

Board Appearance
XPW4R10ANB XPW4R10ANB XPW4R10ANB XPW4R10ANB XPQR3004PB XPQR3004PB XPQR3004PB TPD7106F TPD7106F

Click on components for more details

特性

  • Bidirectional converter with 48V to 12V buck and 12V to 48V boost
  • Total efficiency 92.2% (Boost operation, Vin = 48V, 100% load)
  • Total efficiency 91.3% (Buck operation, Vin = 12V, 100% load)
  • Built-in input/output circuits and various protection circuits
  • Equipped with the latest generation power MOSFETs and intelligent power devices

說明

Input voltage (Buck Operation) DC 24V to 54V, (Boost Operation) DC 5V to 16V
Output voltage (Buck Operation) DC 12V, (Boost Operation) DC 48V
Output power 3kW

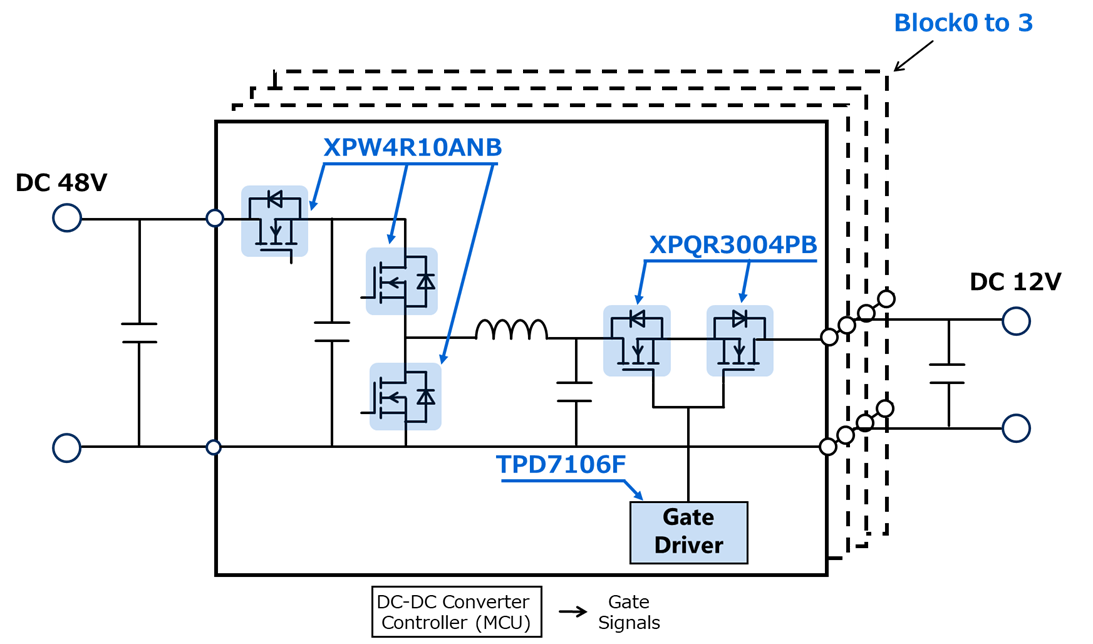

Circuit topology 4-Phase Non-Isolated Bidirectional DC-DC Converter

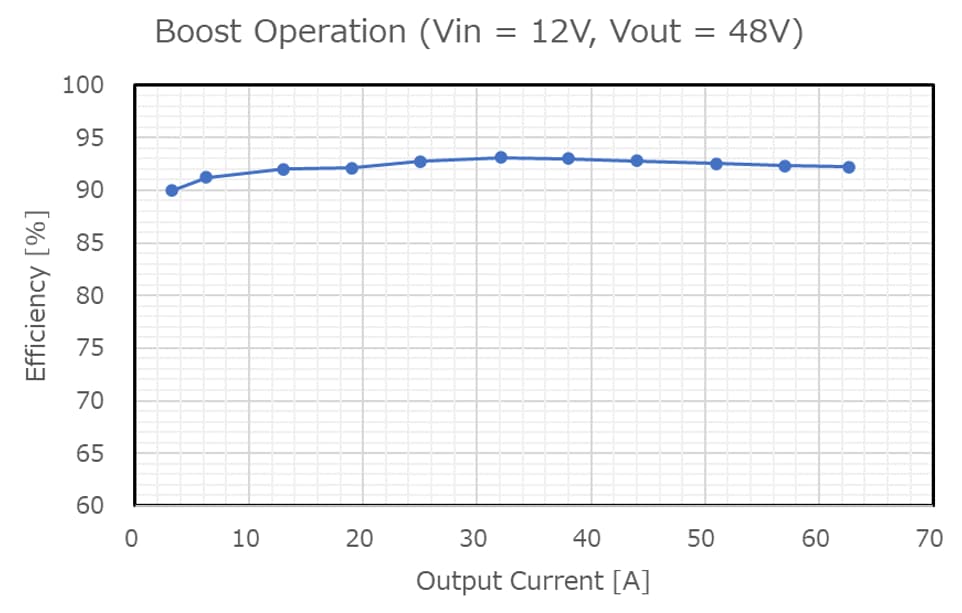

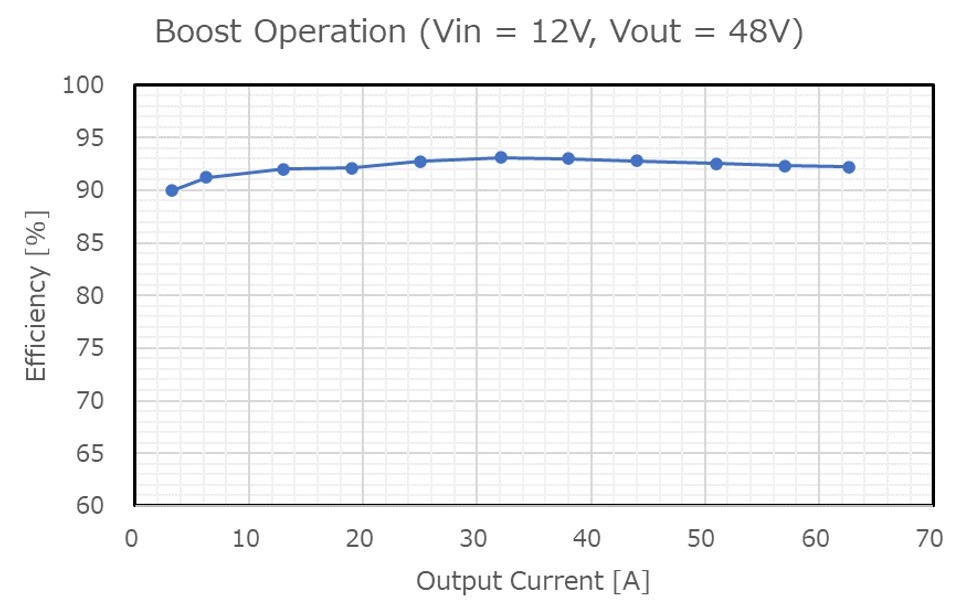

Efficiency Curve

設計文件

供設計人員使用的材料，例如電路操作概述和設計注意事項的解釋。請點擊每個選項以查看內容。

設計數據

提供可載入到EDA工具中的電路資料、PCB佈局資料以及PCB製造中使用的資料。來自多個工具供應商的可用格式。您可以使用喜歡的工具來自由的編輯它。

使用東芝項目/產品

器件型號 器件目錄 使用部位・數量 說明
Power MOSFET (N-ch single 60V<VDSS≤150V) 48V Input/Output Circuit & DC-DC Converter Circuit・32 N-ch MOSFET, 100 V, 70 A, 0.0041 Ω@10V, DSOP Advance(WF)L
Power MOSFET (N-ch single 30V<VDSS≤60V) 12V Input/Output Circuit・16 N-ch MOSFET, 40 V, 400 A, 0.00030 Ω@10V, L-TOGL
Intelligent power device (High side power-MOSFET driver with built-in charge pump) 12V Input/Output Circuit・4 Automotive Gate driver for High-side switch, SSOP16

相關文件

我們提供有助於設計和考慮類似電路的材料，例如已安裝產品的應用說明。請點擊每個選項以查看內容。

應用

Automotive DC-DC Converter
Such as reduction of power consumption and miniaturization are important in designing DC-DC converter. Toshiba provides information on a wide range of semiconductor products suitable for step-up or step-down DC-DC converter units, etc., along with circuit configuration examples.
