TCR3EMxxA / 3DMxxA / 3LMxxA Series LDO Regulators With 300mA Output in Small DFN4D Package for Power Supply Circuit Applications

The lineup includes three series of small package LDO regulators that are ideal for mobile devices, etc. becuase of their features (standard type, low dropout voltage type, and low current consumption type). We provide the description of features, design points, and usage methods of each series.

This is a picture of the DFN4D package.
TCR3EM30A TCR3EM30A TCR3DM30A TCR3LM30A

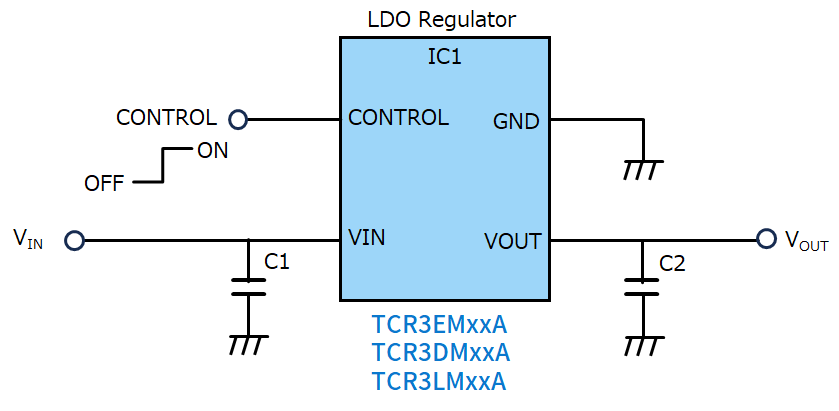

Click on components for more details

特性

  • Small DFN4D package (1.0 x 1.0 x 0.37㎜)
  • Ideal for mobile devices, etc.
  • Lineup includes three series: standard type, low dropout voltage type, and low current consumption type

說明

Input Power Supply Voltage 5.5V (Max.)
Output current (Max.) 300mA
