TLP5214A

Photocoupler (photo-IC output)

  • 相關參考設計(2)

數據表

TLP5214A 數據表/日文[Oct,2019]PDF: 1435KB

數據表

TLP5214A 數據表/英文[Oct,2019]PDF: 1448KB

Simulation Model

PSpice Model[Dec,2023]ZIP: 19KB

Reliability Information

Reliability Data[Dec,2023]PDF: 201KB

Environment Information

Certificate Regarding EU RoHS(2011/65/EU)Controlled Substances[Dec,2024]PDF: 86KB

Environment Information

Certificate on Content of SVHC of REACH[Dec,2024]PDF: 85KB

Application Note

Smart Gate Driver Coupler Tips for Designing DESAT Detection Circuits[May,2022]PDF: 1055KB

Application Note

Smart Gate Driver TLP5214A/TLP5214/TLP5212/TLP5222 Application Note -Introduction-[Apr,2022]PDF: 1534KB

Application Note

Smart Gate Driver Coupler TLP5214/TLP5214A/TLP5212/TLP5222 Appication Note -Advanced edition-[Apr,2022]PDF: 2189KB

Application Note

Safety standards for photocouplers[Mar,2021]PDF: 753KB

Application Note

Gate Drive Coupler Notes on using power device gate negative bias power supply[Jan,2021]PDF: 1030KB

Application Note

Glossary of Photocoupler and Photorelay Terms[Mar,2018]PDF: 509KB

Catalog

Selection Guide Isolators and Solid State Relays 2024Rev2.0[Aug,2024]PDF: 14710KB

Catalog

Photocouplers and Photorelays[Apr,2020]PDF: 2619KB

數據表

TLP5214A 數據表/日文[Oct,2019]PDF: 1435KB

數據表

TLP5214A 數據表/英文[Oct,2019]PDF: 1448KB

Application Note

Smart Gate Driver Coupler Tips for Designing DESAT Detection Circuits[May,2022]PDF: 1055KB

Application Note

Smart Gate Driver TLP5214A/TLP5214/TLP5212/TLP5222 Application Note -Introduction-[Apr,2022]PDF: 1534KB

Application Note

Smart Gate Driver Coupler TLP5214/TLP5214A/TLP5212/TLP5222 Appication Note -Advanced edition-[Apr,2022]PDF: 2189KB

Application Note

Safety standards for photocouplers[Mar,2021]PDF: 753KB

Application Note

Gate Drive Coupler Notes on using power device gate negative bias power supply[Jan,2021]PDF: 1030KB

Application Note

Glossary of Photocoupler and Photorelay Terms[Mar,2018]PDF: 509KB

Simulation Model

PSpice Model[Dec,2023]ZIP: 19KB

Reliability Information

Reliability Data[Dec,2023]PDF: 201KB

Environment Information

Certificate Regarding EU RoHS(2011/65/EU)Controlled Substances[Dec,2024]PDF: 86KB

Environment Information

Certificate on Content of SVHC of REACH[Dec,2024]PDF: 85KB

Catalog

Selection Guide Isolators and Solid State Relays 2024Rev2.0[Aug,2024]PDF: 14710KB

Catalog

Photocouplers and Photorelays[Apr,2020]PDF: 2619KB

產品概要

Feature 2.3mm low-profile package / Creepage and clearance 8mm / High temperature 110 degC operation
Application Scope Factory automation / Inverter / PV inverter
Function IGBT driver
Number of Circuits 1
Output Interface totem-pole(BUF)
RoHS Compatible Product(s) (#) Available
Safety Standard Approved　:　UL 1577 / cUL (CSA Component Acceptance Service No. 5A) / EN 60747-5-5 (VDE) / EN IEC 62368-1 (VDE) / GB 4943.1-2022 (CQC)

*Download Online Certification of Safety Standard(UL 1577)
*Download Online Certification of Safety Standard(cUL)

包裝資訊

Toshiba Package Name SO16L
Package Image SO16L
Pins 16
Mounting Surface Mount
Width×Length×Height
(mm)		 10.3×10.0×2.1
Package Dimensions 檢視
Land pattern dimensions 檢視
CAD data
(Symbol, Footprint and 3D model)		 Download from UltraLibrarian<sup>®</sup> in your desired CAD format (Note)

Download from UltraLibrarian® in your desired CAD format (Note)

 Please refer to the link destination to check the detailed size.

(Note)

Ultra Librarian® is a Registered trademark and CAD data library of EMA (EMA Design Automation, Inc.).

絕對最大額定值

項目 符號 值 單位
Supply Voltage VCC -0.5 to 35 V
Operating Temperature Topr -40 to 110 ℃

電器特性

項目 符號 條件 值 單位
Pulse width distortion |tpHL-tpLH| - 50 ns
Isolation voltage BVS t=60sec 5000 Vrms
Common mode transient immunity CMH / CML - +/-35 kV/μs
ICC (Max) ICC - 3.8 mA
threshold input current(L/H) IFLH - 6 mA
Output Current Iout (peak) (Max) IOP - +/-4.0 A
Propagation delay time (H/L)(Max) tpHL - 150 ns
Propagation delay time (L/H)(Max) tpLH - 150 ns
Supply Voltage(under Recommended Operating Conditions)(Max) VCC - 30 V
Supply Voltage(under Recommended Operating Conditions)(Min) VCC - 15 V
購買及樣品申請
請聯繫東芝的官方經銷商之一或最近的東芝銷售辦事處
點選以下連結搜索和購買小量樣品

文檔

  • 如果沒看到確認框則對應文件目前無法下載

Dec,2023

Dec,2023

Dec,2024

Dec,2024

Orderable part number

Orderable part number
(example)		 MOQ(pcs) Reliability
Information		 RoHS
TLP5214A(D4-TP,E 1500 Yes
TLP5214A(TP,E 1500 Yes

參考設計

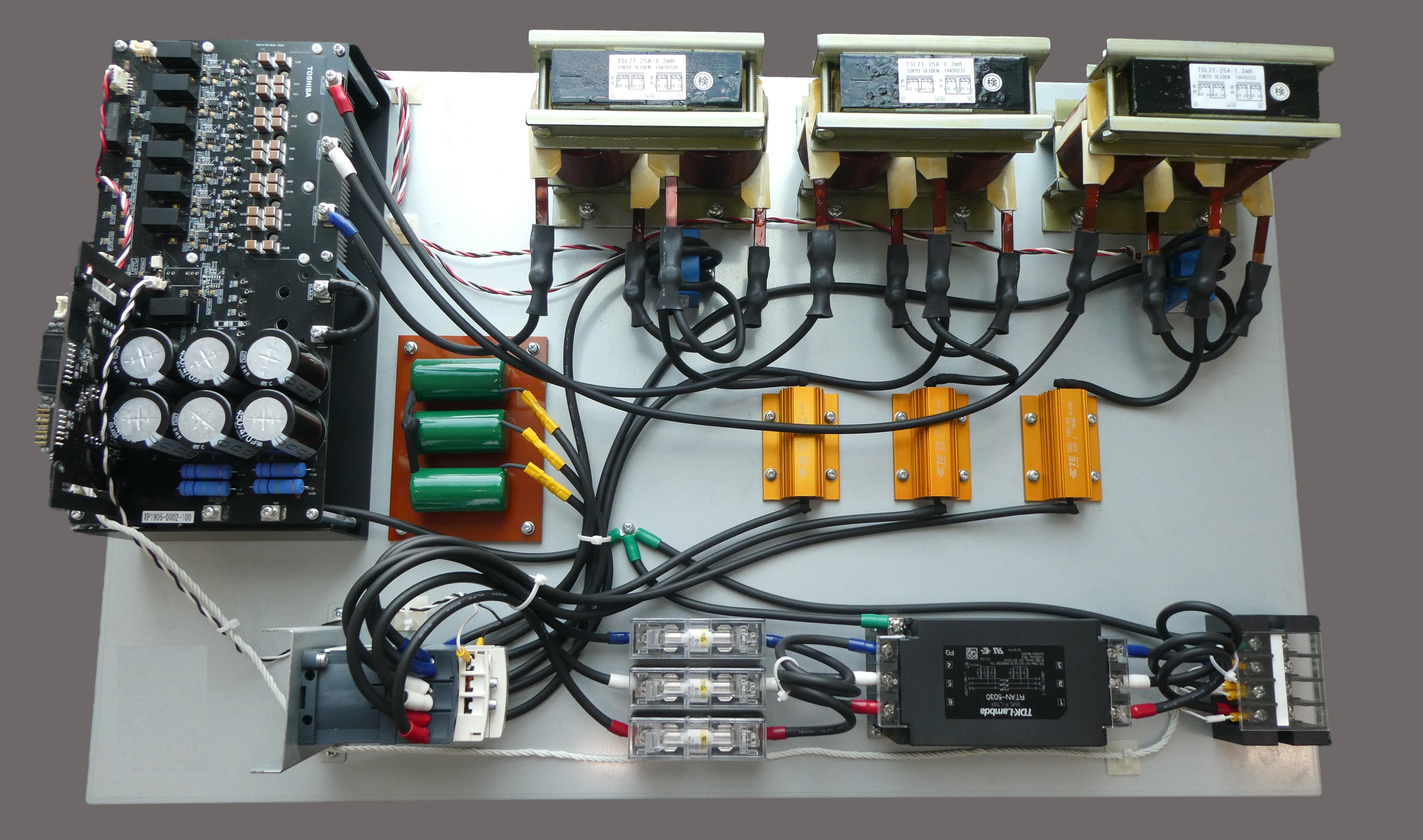

Inverter application example of smart gate driver coupler TLP5214A inverter application.
Smart Gate Driver Coupler TLP5214A Inverter Application
This reference design provides example circuits, design guide of built-in functions and thermal design guide for applying TLP5214A to inverter circuit as gate driver.
詳細資料
Photo of evaluation board of Smart Gate Driver Coupler.
Evaluation Board of Smart Gate Driver Coupler
This reference design provides design guide, data and other contents of the evaluation board of Smart Gate Driver Coupler.
詳細資料

應用

Inverter/Servo
Such as low power consumption, miniaturization and robust operation are important in designing inverter/servo. Toshiba provides information on a wide range of semiconductor products suitable for power supply unit, motor driving circuit units, signal transmission units, etc., along with circuit configuration examples.
詳細資料
PV Inverter for Household Use
Such as high efficiency and miniaturization are important in designing PV inverter for household use. Toshiba provides information on a wide range of semiconductor products suitable for convertercircuit unit, inverter circuit unit, etc., along with circuit configuration examples.
詳細資料
Uninterruptible power supply
Such as low power consumption and miniaturization are important in designing uninterruptible power supply (UPS). Toshiba provides information on a wide range of semiconductor products suitable for power sullpy units, inverter/converter units, control units, signal transmission units, etc., along with circuit configuration examples.
詳細資料
