TK20A60W5

Power MOSFET (N-ch 500V<VDSS≤700V)

  • 相關參考設計(2)

數據表

TK20A60W5 數據表/日文[Feb,2014]PDF: 359KB

數據表

TK20A60W5 數據表/英文[Feb,2014]PDF: 235KB

Simulation Model

PSpice Model[Feb,2022]ZIP: 45KB

Simulation Model

LTspice Model[May,2022]ZIP: 53KB

Thermal Simulation Model

Simplified CFD Model[Apr,2024]ZIP: 11KB

Reliability Information

Reliability Data[Oct,2024]PDF: 203KB

Application Note

MOSFET SPICE model grade[May,2023]PDF: 1639KB

Application Note

Electrical Characteristics: Power MOSFET Application Notes[Feb,2023]PDF: 1266KB

Application Note

Simplified CFD Model Application Note[Nov,2022]PDF: 993KB

Application Note

Efficiency Evaluation and Loss Analysis of 300W isolated DC-DC converter[Sep,2021]PDF: 2324KB

Application Note

Quick Reference Guide for Thermal Design for Power Semiconductor SMD type: Part 2[Dec,2020]PDF: 3593KB

Application Note

Efficiency evaluation of Half-bridge DC-DC converter supporting 48V Bus system[Sep,2020]PDF: 1517KB

Application Note

Avalanche energy calculation[Mar,2020]PDF: 562KB

Application Note

Quick Reference Guide for Thermal Design for Discrete Semiconductor Devices[Feb,2020]PDF: 2104KB

Application Note

Resonant Circuits and Soft Switching[Nov,2019]PDF: 1071KB

Application Note

Power Factor Correction (PFC) Circuits: Power MOSFET Application Notes[Nov,2019]PDF: 1061KB

Application Note

U-MOSⅨ-H 60V Low VDS spike TPH1R306P1[Aug,2019]PDF: 1081KB

Application Note

Hints and Tips for Thermal Design part3[Feb,2019]PDF: 3165KB

Application Note

Reverse Recovery Operation and Destruction of MOSFET Body Diode[Sep,2018]PDF: 472KB

Application Note

MOSFET Secondary Breakdown[Sep,2018]PDF: 450KB

Application Note

RC Snubbers for Step-Down Converters[Sep,2018]PDF: 1846KB

Application Note

Structures and Characteristics: Power MOSFET Application Notes[Jul,2018]PDF: 331KB

Application Note

Maximum Ratings: Power MOSFET Application Notes[Jul,2018]PDF: 705KB

Application Note

Selecting MOSFETs and Consideration for Circuit Design: Power MOSFET Application Notes[Jul,2018]PDF: 848KB

Application Note

Thermal Design and Attachment of a Thermal Fin: Power MOSFET Application Notes[Jul,2018]PDF: 789KB

Application Note

Parasitic Oscillation and Ringing: Power MOSFET Application Notes[Jul,2018]PDF: 1394KB

Application Note

Parasitic Oscillation between Parallel Power MOSFETs: Power MOSFET Application Notes[Jul,2018]PDF: 1178KB

Application Note

MOSFET Gate Drive Circuit: Power MOSFET Application Notes[Jul,2018]PDF: 1215KB

Application Note

Impacts of the dv/dt Rate on MOSFETs: Power MOSFET Application Notes[Jul,2018]PDF: 1077KB

Application Note

MOSFET Avalanche Ruggedness: Power MOSFET Application Notes[Jul,2018]PDF: 616KB

Application Note

Hints and Tips for Thermal Design for Discrete Semiconductor Devices[Jul,2018]PDF: 1266KB

Application Note

Calculating the Temperature of Discrete Semiconductor Devices[Jul,2018]PDF: 965KB

Application Note

Derating of the MOSFET Safe Operating Area[Jul,2018]PDF: 656KB

Application Note

MOSFET Self-Turn-On Phenomenon[Jul,2018]PDF: 1338KB

Application Note

Discrete Semiconductor Devices Hints and Tips for Thermal Design Part 2[Jul,2018]PDF: 1069KB

Application Note

Motor Control (Vacuum Cleaners)[Jul,2018]PDF: 2483KB

Catalog

Selection Guide MOSFETs 2024 Rev2.0[Jul,2024]PDF: 10837KB

數據表

TK20A60W5 數據表/日文[Feb,2014]PDF: 359KB

數據表

TK20A60W5 數據表/英文[Feb,2014]PDF: 235KB

Application Note

MOSFET SPICE model grade[May,2023]PDF: 1639KB

Application Note

Electrical Characteristics: Power MOSFET Application Notes[Feb,2023]PDF: 1266KB

Application Note

Simplified CFD Model Application Note[Nov,2022]PDF: 993KB

Application Note

Efficiency Evaluation and Loss Analysis of 300W isolated DC-DC converter[Sep,2021]PDF: 2324KB

Application Note

Quick Reference Guide for Thermal Design for Power Semiconductor SMD type: Part 2[Dec,2020]PDF: 3593KB

Application Note

Efficiency evaluation of Half-bridge DC-DC converter supporting 48V Bus system[Sep,2020]PDF: 1517KB

Application Note

Avalanche energy calculation[Mar,2020]PDF: 562KB

Application Note

Quick Reference Guide for Thermal Design for Discrete Semiconductor Devices[Feb,2020]PDF: 2104KB

Application Note

Resonant Circuits and Soft Switching[Nov,2019]PDF: 1071KB

Application Note

Power Factor Correction (PFC) Circuits: Power MOSFET Application Notes[Nov,2019]PDF: 1061KB

Application Note

U-MOSⅨ-H 60V Low VDS spike TPH1R306P1[Aug,2019]PDF: 1081KB

Application Note

Hints and Tips for Thermal Design part3[Feb,2019]PDF: 3165KB

Application Note

Reverse Recovery Operation and Destruction of MOSFET Body Diode[Sep,2018]PDF: 472KB

Application Note

MOSFET Secondary Breakdown[Sep,2018]PDF: 450KB

Application Note

RC Snubbers for Step-Down Converters[Sep,2018]PDF: 1846KB

Application Note

Structures and Characteristics: Power MOSFET Application Notes[Jul,2018]PDF: 331KB

Application Note

Maximum Ratings: Power MOSFET Application Notes[Jul,2018]PDF: 705KB

Application Note

Selecting MOSFETs and Consideration for Circuit Design: Power MOSFET Application Notes[Jul,2018]PDF: 848KB

Application Note

Thermal Design and Attachment of a Thermal Fin: Power MOSFET Application Notes[Jul,2018]PDF: 789KB

Application Note

Parasitic Oscillation and Ringing: Power MOSFET Application Notes[Jul,2018]PDF: 1394KB

Application Note

Parasitic Oscillation between Parallel Power MOSFETs: Power MOSFET Application Notes[Jul,2018]PDF: 1178KB

Application Note

MOSFET Gate Drive Circuit: Power MOSFET Application Notes[Jul,2018]PDF: 1215KB

Application Note

Impacts of the dv/dt Rate on MOSFETs: Power MOSFET Application Notes[Jul,2018]PDF: 1077KB

Application Note

MOSFET Avalanche Ruggedness: Power MOSFET Application Notes[Jul,2018]PDF: 616KB

Application Note

Hints and Tips for Thermal Design for Discrete Semiconductor Devices[Jul,2018]PDF: 1266KB

Application Note

Calculating the Temperature of Discrete Semiconductor Devices[Jul,2018]PDF: 965KB

Application Note

Derating of the MOSFET Safe Operating Area[Jul,2018]PDF: 656KB

Application Note

MOSFET Self-Turn-On Phenomenon[Jul,2018]PDF: 1338KB

Application Note

Discrete Semiconductor Devices Hints and Tips for Thermal Design Part 2[Jul,2018]PDF: 1069KB

Application Note

Motor Control (Vacuum Cleaners)[Jul,2018]PDF: 2483KB

Simulation Model

PSpice Model[Feb,2022]ZIP: 45KB

Simulation Model

LTspice Model[May,2022]ZIP: 53KB

Thermal Simulation Model

Simplified CFD Model[Apr,2024]ZIP: 11KB

Reliability Information

Reliability Data[Oct,2024]PDF: 203KB

Catalog

Selection Guide MOSFETs 2024 Rev2.0[Jul,2024]PDF: 10837KB

產品概要

Application Scope Switching Voltage Regulators
Polarity N-ch
Generation DTMOSⅣ
Internal Connection Single
RoHS Compatible Product(s) (#) Available

包裝資訊

Toshiba Package Name TO-220SIS
Package Image TO-220SIS
JEITA SC-67
Pins 3
Mounting Through Hole
Width×Length×Height
(mm)		 10.0×15.0×4.5
Package Dimensions 檢視
CAD data
(Symbol, Footprint and 3D model)		 Download from UltraLibrarian<sup>®</sup> in your desired CAD format (Note) Download from UltraLibrarian® in your desired CAD format (Note)

 Please refer to the link destination to check the detailed size.

 (Note) Ultra Librarian® is a Registered trademark and CAD data library of EMA (EMA Design Automation, Inc.).

絕對最大額定值

項目 符號 值 單位
Drain-Source voltage VDSS 600 V
Gate-Source voltage VGSS +/-30 V
Drain current ID 20 A
Power Dissipation PD 45 W

電器特性

項目 符號 條件 值 單位
Gate threshold voltage (Max) Vth - 4.5 V
Gate threshold voltage (Min) Vth - 3.0 V
Drain-Source on-resistance (Max) RDS(ON) |VGS|=10V 175 mΩ
Input capacitance (Typ.) Ciss - 1800 pF
Total gate charge (Typ.) Qg VGS=10V 55 nC
Reverse recovery time (Typ.) trr - 110 ns
Reverse recovery charge (Typ.) Qrr - 600 nC
購買及樣品申請
請聯繫東芝的官方經銷商之一或最近的東芝銷售辦事處
點選以下連結搜索和購買小量樣品

文檔

  • 如果沒看到確認框則對應文件目前無法下載

Feb,2022

May,2022

Apr,2024

Oct,2024

(Note)

LTspice ® is a trademark and simulation software of ADI (Analog Devices, Inc.).

Orderable part number

Orderable part number
(example)		 MOQ(pcs) Reliability
Information		 RoHS
TK20A60W5,S5VX 50 Yes

應用

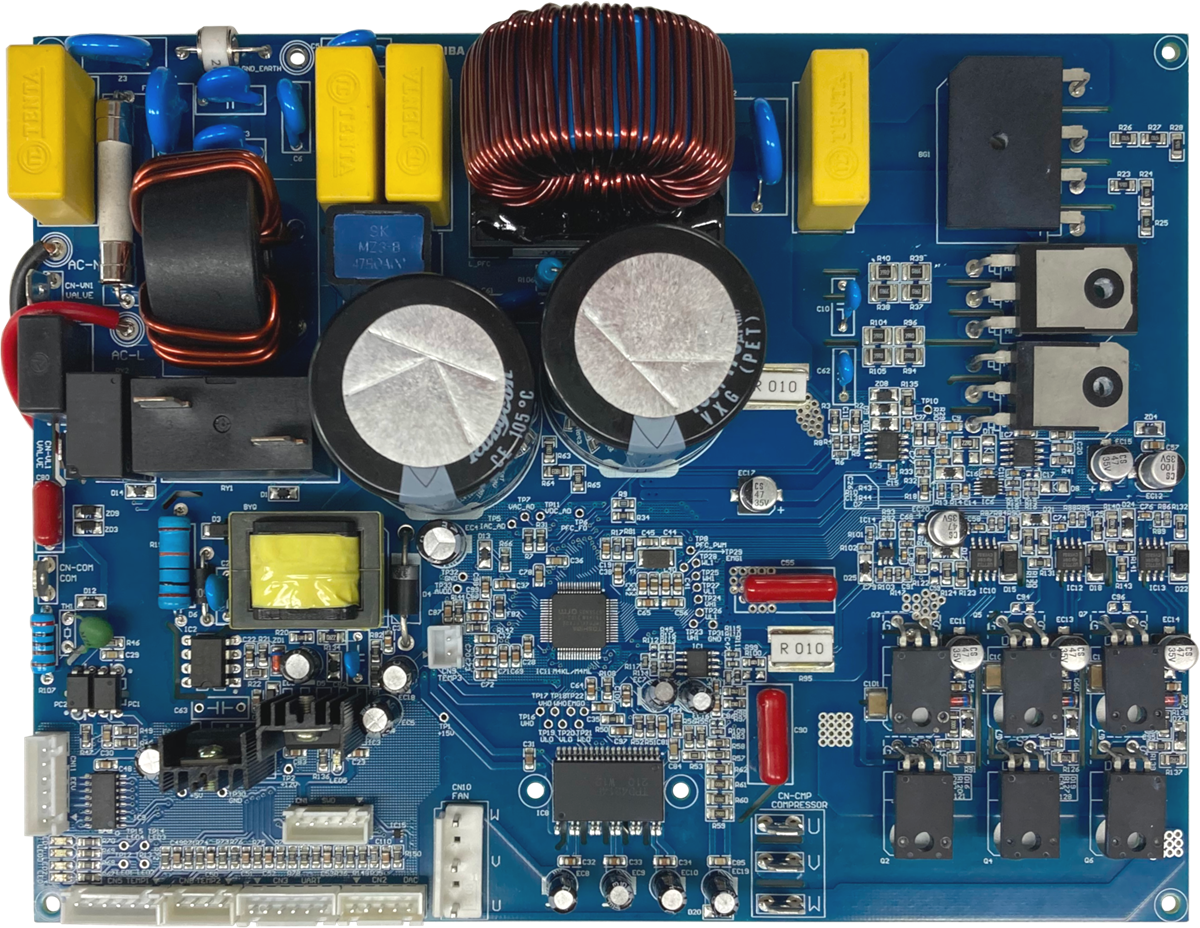

Air Conditioner
