SSM6K818R

Small Low ON resistance MOSFETs

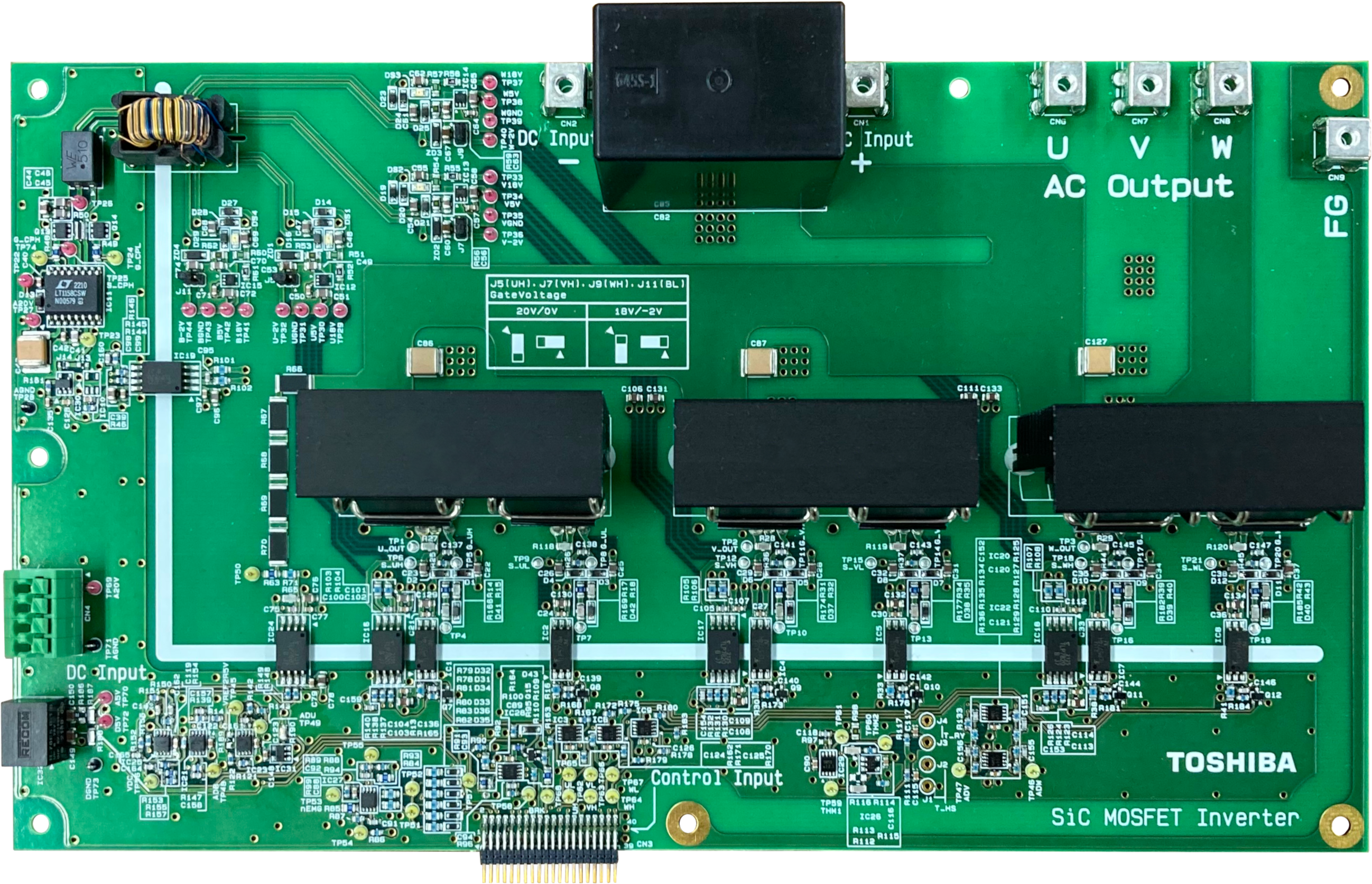

相關參考設計(1)

全部 Data sheet 應用說明 Other

數據表

SSM6K818R 數據表/日文[Aug,2024]PDF: 433KB

數據表

SSM6K818R 數據表/英文[Aug,2024]PDF: 319KB

Simulation Model

PSpice Model[Jun,2022]ZIP: 11KB

Simulation Model

LTspice Model[Jun,2022]ZIP: 21KB

Thermal Simulation Model

Simplified CFD Model[Feb,2024]ZIP: 10KB

Reliability Information

Reliability Data[Sep,2024]PDF: 276KB

Environment Information

Certificate Regarding EU RoHS(2011/65/EU)Controlled Substances[Jan,2025]PDF: 87KB

Environment Information

Certificate on Content of SVHC of REACH[Jan,2025]PDF: 86KB

Application Note

Surface Mount Small Signal MOSFET Precautions for use[Jan,2022]PDF: 830KB

Catalog

Mini catalog Introduction of Semi-power & small-size low RON MOSFET[Dec,2024]PDF: 433KB

Catalog

Mini catalog Introduction of small-package MOSFET[Dec,2024]PDF: 680KB

Catalog

Selection Guide MOSFETs 2024 Rev2.0[Jul,2024]PDF: 10837KB

Catalog

Selection Guide Small Signal 2024 Rev2.0[Jul,2024]PDF: 15538KB

數據表

SSM6K818R 數據表/日文[Aug,2024]PDF: 433KB

數據表

SSM6K818R 數據表/英文[Aug,2024]PDF: 319KB

Application Note

Surface Mount Small Signal MOSFET Precautions for use[Jan,2022]PDF: 830KB

Simulation Model

PSpice Model[Jun,2022]ZIP: 11KB

Simulation Model

LTspice Model[Jun,2022]ZIP: 21KB

Thermal Simulation Model

Simplified CFD Model[Feb,2024]ZIP: 10KB

Reliability Information

Reliability Data[Sep,2024]PDF: 276KB

Environment Information

Certificate Regarding EU RoHS(2011/65/EU)Controlled Substances[Jan,2025]PDF: 87KB

Environment Information

Certificate on Content of SVHC of REACH[Jan,2025]PDF: 86KB

Catalog

Mini catalog Introduction of Semi-power & small-size low RON MOSFET[Dec,2024]PDF: 433KB

Catalog

Mini catalog Introduction of small-package MOSFET[Dec,2024]PDF: 680KB

Catalog

Selection Guide MOSFETs 2024 Rev2.0[Jul,2024]PDF: 10837KB

Catalog

Selection Guide Small Signal 2024 Rev2.0[Jul,2024]PDF: 15538KB

產品概要

Application Scope	DC-DC Converters / Power Management Switches
Feature	Low drain-source on-resistance
Polarity	N-ch
Generation	U-MOSⅨ-H
Internal Connection	Single
AEC-Q101	Qualified(*)
RoHS Compatible Product(s) (#)	Available

*: For detail information, please contact to our sales.

包裝資訊

Toshiba Package Name	TSOP6F
Package Image
Pins	6
Mounting	Surface Mount
Width×Length×Height (mm)	2.9×2.8×0.8
Package Dimensions	檢視
Land pattern dimensions	檢視
SamacSys CAD model (Symbol, Footprint and 3D model)	Download from SamacSys (Note1)(Note2)

Please refer to the link destination to check the detailed size.

(Note1)	SamacSys is a wholly owned subsidiary of Supplyframe, Inc. CAD models (Symbol/Footprint /3D model) are provided by Supplyframe, Inc. The footprints are generated based on the specifications of SamacSys.
(Note2)	Please note that the footprint dimensions may differ from the reference Land Pattern dimensions provided on our website.

絕對最大額定值

項目	符號	值	單位
Drain-Source voltage	V_DSS	30	V
Gate-Source voltage	V_GSS	+/-20	V
Drain current	I_D	15	A
Power Dissipation	P_D	1.5	W

電器特性

項目	符號	條件	值	單位
Gate threshold voltage (Max)	V_th	-	2.1	V
Gate threshold voltage (Min)	V_th	-	1.1	V
Drain-Source on-resistance (Max)	R_DS(ON)	\|V_GS\|=4.5V	12	mΩ
Drain-Source on-resistance (Max)	R_DS(ON)	\|V_GS\|=10V	8.9	mΩ
Input capacitance (Typ.)	C_iss	-	1130	pF
Total gate charge (Typ.)	Q_g	V_GS=4.5V	7.5	nC

文檔

全部選擇
如果沒看到確認框則對應文件目前無法下載

數據表 SSM6K818R 數據表/日文

PDF: 433KB

Aug,2024

數據表 SSM6K818R 數據表/英文

PDF: 319KB

Aug,2024

Simulation Model PSpice Model ZIP

ZIP: 11KB

Jun,2022

Simulation Model LTspice Model (Note) ZIP

ZIP: 21KB

Jun,2022

Thermal Simulation Model Simplified CFD Model ZIP

ZIP: 10KB

Feb,2024

Reliability Information Reliability Data

PDF: 276KB

Sep,2024

UPDATED Environment Information Certificate Regarding EU RoHS(2011/65/EU)Controlled Substances

PDF: 87KB

Jan,2025

UPDATED Environment Information Certificate on Content of SVHC of REACH

PDF: 86KB

Jan,2025

Application Note Surface Mount Small Signal MOSFET Precautions for use

PDF: 830KB

Jan,2022

Catalog Mini catalog Introduction of Semi-power & small-size low RON MOSFET

PDF: 433KB

Dec,2024

Catalog Mini catalog Introduction of small-package MOSFET

PDF: 680KB

Dec,2024

Catalog Selection Guide MOSFETs 2024 Rev2.0

PDF: 10837KB

Jul,2024

Catalog Selection Guide Small Signal 2024 Rev2.0

PDF: 15538KB

Jul,2024

(Note)

LTspice ^® is a trademark and simulation software of ADI (Analog Devices, Inc.).

Orderable part number

Orderable part number (example)	MOQ(pcs)	Reliability Information	RoHS	AEC-Q100 AEC-Q101	Note
SSM6K818R,LF	3000		Yes	-	General Use
SSM6K818R,LXGF	3000	-	Yes	Yes (Note)	Unintended Use (Note)

(Note)：For more information, please contact our sales or use the inquiry form on our website.

Notes

The Part Number column shows representative part numbers only, which may not be available for sale in the precise form shown. Each Part Number constitutes a product family which may contain multiple associated product configurations.
(#) Under the RoHS Compatible Product(s) column, "Available" means at least one RoHS-Compatible product is available for sale in the corresponding product family. "None" means no RoHS Compatible product is available in that product family. For Toshiba's definitions of concepts related to the RoHS Directive and RoHS Compatibility, please click here.
The RoHS compatibility information provided herein is to the best of Toshiba's knowledge and belief accurate as of the date Toshiba entered the information into this database. Information is subject to change at any time without notice.
Please contact your Toshiba sales representative for detailed environmental information about each specific part number or product, such as RoHS compatibility or material content. Please use Toshiba products only in compliance with all applicable laws and regulations concerning the inclusion or use of controlled substances, including without limitation the RoHS Directive.TOSHIBA ASSUMES NO LIABILITY FOR DAMAGES OR LOSSES OCCURRING AS A RESULT OF NONCOMPLIANCE WITH APPLICABLE LAWS AND REGULATIONS.
Reliability data are provided for your reference only, please contact your Toshiba sales representative for detailed reliability information about each part number.
For product delivery, additional characters will be added to the part numbers shown on this website. For details, please ask your local distributor, or send an inquiry accessed from "Contact Us" on this website.
