LED lighting

LED lighting

Such as high efficiency, low power consumption and miniaturization are important in designing LED lighting. Toshiba provides information on a wide range of semiconductor products suitable for power supply units, sensor signal input units, etc., along with circuit configuration examples.

總方塊圖

點選總方塊圖中要查看詳細資訊的區域。顯示我們建議的子方塊圖的連結。

 100 to 240 V AC 100 to 240 V AC DC-DC DC-DC Human sensor (Pyroelectric Infrared Sensor) Human sensor (Pyroelectric Infrared Sensor) Switches Switches IR Receiver IR Receiver Ambient Light Sensor Ambient Light Sensor LED Driver LEDDriver Wi-Fi® SoC Wi-Fi® SoC MCU, LED Driver, Op-amp, Wi-Fi® SoC MCU, LED Driver, Op-amp, Wi-Fi® SoC N-ch MOSFET N-chMOSFET N-ch MOSFET N-chMOSFET N-ch MOSFET N-chMOSFET N-ch MOSFET N-chMOSFET PFC Controller PFCController MCU MCU Ambient light sensor circuit PFC circuit Active type DC-DC converter circuit Human sensor circuit LED drive circuit
PFC circuit Active type

Example of the active type PFC circuit

DC-DC converter circuit

Example of flyback type DC-DC converter circuit

Example of forward type DC-DC converter circuit

LED drive circuit

Example of LED drive circuit using a MOSFET as a low side switch

Human sensor circuit

Example of the circuit using operational amplifier for amplifying human sensor signal

Ambient light sensor circuit

Example of the circuit using operational amplifier for amplifying ambient light sensor signal

子方塊圖

PFC circuit Active type
PFC circuit Active type

Example of the active type PFC circuit

Example of the active type PFC circuit
DTMOSⅥ Series MOSFET
器件型號
TK065U65Z
TK040N65Z
Toshiba Package Name TOLL TO-247
VDSS (Max) [V] 650 650
ID (Max) [A] 38 57
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.065 0.04
Polarity N-ch N-ch
搜尋產品線
SiC MOSFET
器件型號
TW107N65C
TW140N120C
TW107Z65C
TW140Z120C
Toshiba Package Name TO-247 TO-247 TO-247-4L(X) TO-247-4L(X)
VDSS (Max) [V] 650 1200 650 1200
ID (Max) [A] 20 20 20 20
RDS(ON) (Max) [Ω] @ |VGS| = 18.0 [V] 0.145 0.182 0.152 0.191
Polarity N-ch N-ch N-ch N-ch
搜尋產品線
Transistor Output Photocouplers
器件型號
TLP383
TLP293
TLP385
Toshiba Package Name 4pin SO6L SO4 4pin SO6L
BVS (Min) [Vrms] @ t = 60 [s] 5000 3750 5000
VCEO (Max) [V] 80 80 80
Topr [°C] -55 to 125 -55 to 125 -55 to 110
搜尋產品線
MCU TXZ+TM 3A Series M3H Group
Series TXZ+TM3A Series
Group M3H Group
搜尋產品線
DC-DC converter circuit
DC-DC converter circuit Flyback type

Example of flyback type DC-DC converter circuit

Example of flyback type DC-DC converter circuit
DTMOSⅥ Series MOSFET
器件型號
TK065U65Z
TK040N65Z
Toshiba Package Name TOLL TO-247
VDSS (Max) [V] 650 650
ID (Max) [A] 38 57
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.065 0.04
Polarity N-ch N-ch
搜尋產品線
SiC MOSFET
器件型號
TW107N65C
TW140N120C
TW107Z65C
TW140Z120C
Toshiba Package Name TO-247 TO-247 TO-247-4L(X) TO-247-4L(X)
VDSS (Max) [V] 650 1200 650 1200
ID (Max) [A] 20 20 20 20
RDS(ON) (Max) [Ω] @ |VGS| = 18.0 [V] 0.145 0.182 0.152 0.191
Polarity N-ch N-ch N-ch N-ch
搜尋產品線
U-MOS Series MOSFET (30 V / 40 V)
器件型號
TPWR6003PL
TPWR8004PL
TPHR7404PU
TPHR8504PL
Toshiba Package Name DSOP Advance DSOP Advance SOP Advance SOP Advance
VDSS (Max) [V] 30 40 40 40
ID (Max) [A] 412 340 400 340
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0006 0.0008 0.00074 0.00085
Polarity N-ch N-ch N-ch N-ch
搜尋產品線
U-MOS Series MOSFET (80 V)(1)
器件型號
TPH2R408QM
TPH4R008QM
TPN8R408QM
TPN12008QM
TPN19008QM
Toshiba Package Name SOP Advance SOP Advance(N) TSON Advance TSON Advance TSON Advance
VDSS (Max) [V] 80 80 80 80 80
ID (Max) [A] 120 86 32 26 34
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.00243 0.004 0.0084 0.0123 0.019
Polarity N-ch N-ch N-ch N-ch N-ch
搜尋產品線
U-MOS Series MOSFET (80 V)(2)
器件型號
TK5R1P08QM
TK6R9P08QM
Toshiba Package Name DPAK DPAK
VDSS (Max) [V] 80 80
ID (Max) [A] 84 62
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0051 0.0069
Polarity N-ch N-ch
搜尋產品線
Transistor output photocoupler
器件型號
TLP383
TLP293
TLP385
Toshiba Package Name 4pin SO6L SO4 4pin SO6L
BVS (Min) [Vrms] @ t = 60 [s] 5000 3750 5000
VCEO (Max) [V] 80 80 80
Topr [°C] -55 to 125 -55 to 125 -55 to 110
搜尋產品線
DC-DC converter circuit Forward type

Example of forward type DC-DC converter circuit

Example of forward type DC-DC converter circuit
DTMOSⅥ Series MOSFET
器件型號
TK065U65Z
TK040N65Z
Toshiba Package Name TOLL TO-247
VDSS (Max) [V] 650 650
ID (Max) [A] 38 57
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.065 0.04
Polarity N-ch N-ch
搜尋產品線
SiC MOSFET
器件型號
TW107N65C
TW140N120C
TW107Z65C
TW140Z120C
Toshiba Package Name TO-247 TO-247 TO-247-4L(X) TO-247-4L(X)
VDSS (Max) [V] 650 1200 650 1200
ID (Max) [A] 20 20 20 20
RDS(ON) (Max) [Ω] @ |VGS| = 18.0 [V] 0.145 0.182 0.152 0.191
Polarity N-ch N-ch N-ch N-ch
搜尋產品線
U-MOS Series MOSFET (30 V / 40 V)
器件型號
TPWR6003PL
TPWR8004PL
TPHR7404PU
TPHR8504PL
Toshiba Package Name DSOP Advance DSOP Advance SOP Advance SOP Advance
VDSS (Max) [V] 30 40 40 40
ID (Max) [A] 412 340 400 340
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0006 0.0008 0.00074 0.00085
Polarity N-ch N-ch N-ch N-ch
搜尋產品線
U-MOS Series MOSFET (80 V)(1)
器件型號
TPH2R408QM
TPH4R008QM
TPN8R408QM
TPN12008QM
TPN19008QM
Toshiba Package Name SOP Advance SOP Advance(N) TSON Advance TSON Advance TSON Advance
VDSS (Max) [V] 80 80 80 80 80
ID (Max) [A] 120 86 32 26 34
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.00243 0.004 0.0084 0.0123 0.019
Polarity N-ch N-ch N-ch N-ch N-ch
搜尋產品線
U-MOS Series MOSFET (80 V)(2)
器件型號
TK5R1P08QM
TK6R9P08QM
Toshiba Package Name DPAK DPAK
VDSS (Max) [V] 80 80
ID (Max) [A] 84 62
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0051 0.0069
Polarity N-ch N-ch
搜尋產品線
Transistor output photocoupler
器件型號
TLP383
TLP293
TLP385
Toshiba Package Name 4pin SO6L SO4 4pin SO6L
BVS (Min) [Vrms] @ t = 60 [s] 5000 3750 5000
VCEO (Max) [V] 80 80 80
Topr [°C] -55 to 125 -55 to 125 -55 to 110
搜尋產品線
LED drive circuit
LED drive circuit

Example of LED drive circuit using a MOSFET as a low side switch

Example of LED drive circuit using a MOSFET as a low side switch
U-MOS Series MOSFET (30 V / 40 V)
器件型號
TPWR6003PL
TPWR8004PL
TPHR7404PU
TPHR8504PL
Toshiba Package Name DSOP Advance DSOP Advance SOP Advance SOP Advance
VDSS (Max) [V] 30 40 40 40
ID (Max) [A] 412 340 400 340
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0006 0.0008 0.00074 0.00085
Polarity N-ch N-ch N-ch N-ch
搜尋產品線
U-MOS Series MOSFET (80 V) (1)
器件型號
TPH2R408QM
TPH4R008QM
TPN8R408QM
TPN12008QM
TPN19008QM
Toshiba Package Name SOP Advance SOP Advance(N) TSON Advance TSON Advance TSON Advance
VDSS (Max) [V] 80 80 80 80 80
ID (Max) [A] 120 86 32 26 34
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.00243 0.004 0.0084 0.0123 0.019
Polarity N-ch N-ch N-ch N-ch N-ch
搜尋產品線
U-MOS Series MOSFET (80 V) (2)
器件型號
TK5R1P08QM
TK6R9P08QM
Toshiba Package Name DPAK DPAK
VDSS (Max) [V] 80 80
ID (Max) [A] 84 62
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0051 0.0069
Polarity N-ch N-ch
搜尋產品線
MCU TXZ+TM 3A Series M3H Group
Series TXZ+TM3A Series
Group M3H Group
搜尋產品線

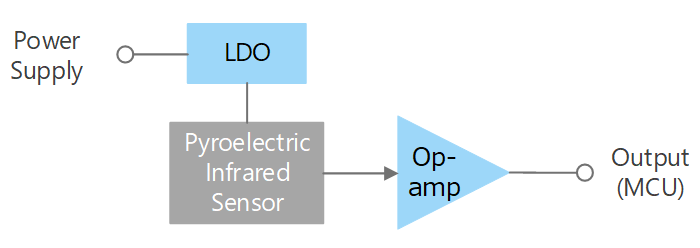

Human sensor circuit
Human sensor circuit

Example of the circuit using operational amplifier for amplifying human sensor signal

Example of the circuit using operational amplifier for amplifying human sensor signal
Small surface mount LDO regulator(1)
器件型號
TCR15AG Series
TCR13AG Series
TCR8BM Series
TCR5BM Series
Toshiba Package Name WCSP6F WCSP6F DFN5B DFN5B
IOUT (Max) [mA] 1500 1300 800 500
VOUT [V] 0.6 to 3.6 0.55 to 3.6 0.8 to 3.6 0.8 to 3.6
搜尋產品線
Small surface mount LDO regulator(2)
器件型號
TCR5RG Series
TCR3RM Series
TCR3U Series
TCR2L Series
TAR5 Series
Toshiba Package Name WCSP4F DFN4F WCSP4F SOT-553 (ESV) SOT-25 (SMV)
IOUT (Max) [mA] 500 300 300 200 200
VOUT [V] 0.9 to 5.0 0.9 to 4.5 0.8 to 5.0 0.8 to 3.6 1.5 to 5.0
搜尋產品線
Low current consumption op-amp / Low noise op-amp
器件型號
TC75S102F
TC75S67TU
Toshiba Package Name SOT-25 (SMV) SOT-353F (UFV)
VCC (Max) [V] 5.5 5.5
VCC, VEE (Max) [V] +/-2.75 +/-2.75
搜尋產品線
Ambient light sensor circuit
Ambient light sensor circuit

Example of the circuit using operational amplifier for amplifying ambient light sensor signal

Example of the circuit using operational amplifier for amplifying ambient light sensor signal
Small surface mount LDO regulator(1)
器件型號
TCR15AG Series
TCR13AG Series
TCR8BM Series
TCR5BM Series
Toshiba Package Name WCSP6F WCSP6F DFN5B DFN5B
IOUT (Max) [mA] 1500 1300 800 500
VOUT [V] 0.6 to 3.6 0.55 to 3.6 0.8 to 3.6 0.8 to 3.6
搜尋產品線
Small surface mount LDO regulator(2)
器件型號
TCR5RG Series
TCR3RM Series
TCR3U Series
TCR2L Series
TAR5 Series
Toshiba Package Name WCSP4F DFN4F WCSP4F SOT-553 (ESV) SOT-25 (SMV)
IOUT (Max) [mA] 500 300 300 200 200
VOUT [V] 0.9 to 5.0 0.9 to 4.5 0.8 to 5.0 0.8 to 3.6 1.5 to 5.0
搜尋產品線
Low current consumption op-amp / Low noise op-amp
器件型號
TC75S102F
TC75S67TU
Toshiba Package Name SOT-25 (SMV) SOT-353F (UFV)
VCC (Max) [V] 5.5 5.5
VCC, VEE (Max) [V] +/-2.75 +/-2.75
搜尋產品線
