Single Phase PFC Power Supply Basic Simulation Circuit

This reference design provides OrCAD® based simulation circuit, simulation results and design guide. This is for designing single phase PFC power supply.

Circuit diagram of single phase PFC power supply basic simulation circuit.

特性

  • Bundled simulation circuit and device models
  • Able to edit power supply specificatoin and devices freely
  • Able to set powef supply specificatoin and ciruit parameters on OrCAD®

說明

  • Basic simulation circuit of single phase PFC power supply that can operate on OrCAD®.
Input voltage AC 90 to 264V
Output voltage DC 400
Output power 500W

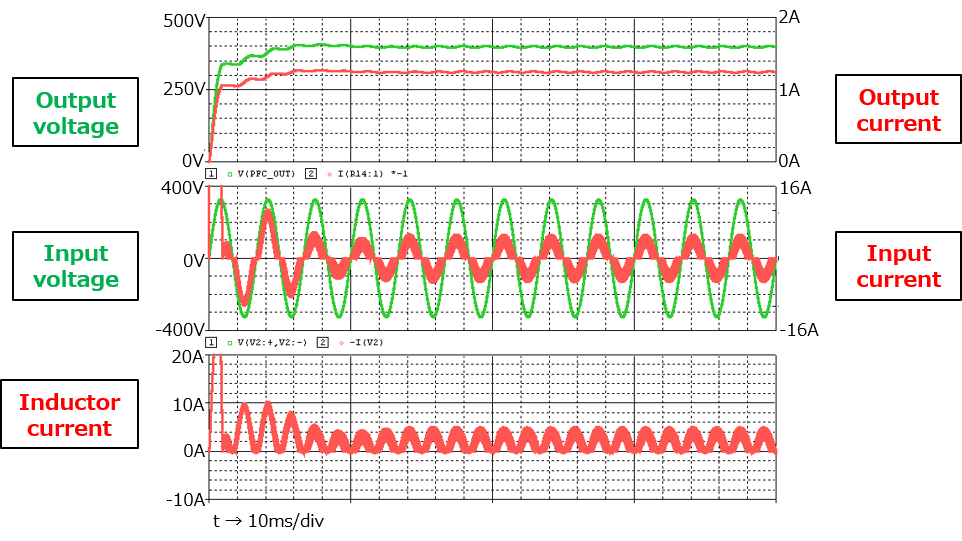

Waveform of single phase PFC power supply basic simulation circuit.
Waveform

設計文件

供設計人員使用的材料，例如電路操作概述和設計注意事項的解釋。請點擊每個選項以查看內容。

設計數據

提供可載入到EDA工具中的電路資料、PCB佈局資料以及PCB製造中使用的資料。來自多個工具供應商的可用格式。您可以使用喜歡的工具來自由的編輯它。

使用東芝項目/產品

器件型號 器件目錄 使用部位・數量 說明
Power MOSFET (N-ch 500V<VDSS≤700V) 1 N-ch MOSFET, 600 V, 0.19 Ω@10V, TO-247, DTMOSⅣ
SiC Schottky barrier diode 1 650 V/4 A SiC Schottky Barrier Diode, TO-220-2L
