This reference design provides design guide, data and other contents of the constant current 100 W Power Supply for LED Lighting with PFC and a wide range of input voltage i.e. AC90V to 264V.
Click on components for more details
輸入電壓 | AC 90V至264V |
---|---|
輸出電壓 | DC 110 V |
輸出功率 | 100 W |

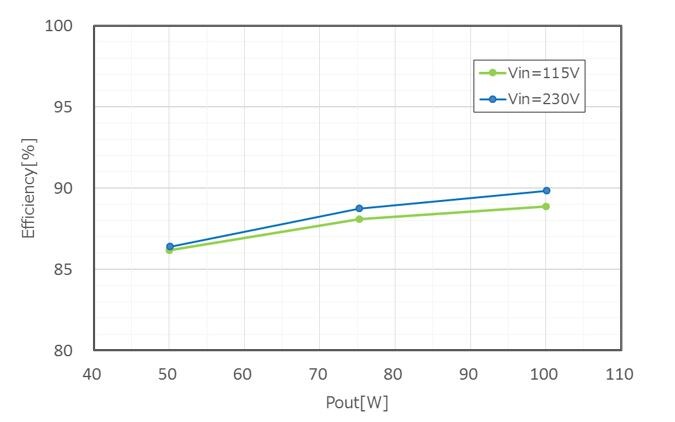

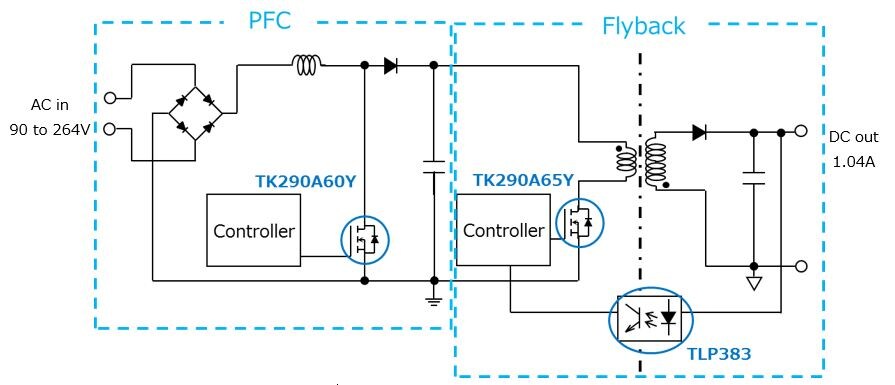

電路拓撲 | 通過返馳式和PFC電路的AC到DC轉換 |
設計・文件 包含以下文件。
設計數據包含以下內容。
器件型號 | 器件目錄 | 使用部位・數量 | 說明 |
---|---|---|---|
Power MOSFET (N-ch 500V<VDSS≤700V) | PFC・1 | N-ch MOSFET, 600 V, 0.29 Ω@10V, TO-220SIS, DTMOSⅤ | |
Power MOSFET (N-ch 500V<VDSS≤700V) | 一次側・1 | N-ch MOSFET, 650 V, 0.29 Ω@10V, TO-220SIS, DTMOSⅤ | |
光耦 | 輸出電壓回授・1 | Photocoupler (phototransistor output), DC input, 5000 Vrms, 4pin SO6L |
