Flyback DC-DC Power Supply Basic Simulation Circuit
This reference design provides OrCAD® based simulation circuit, simulation results and design guide. This is for designing flyback topology of DC-DC power supply.
Bundled simulation circuit and device models
Able to edit power supply specificatoin and devices freely
Able to set powef supply specificatoin and ciruit parameters on OrCAD®

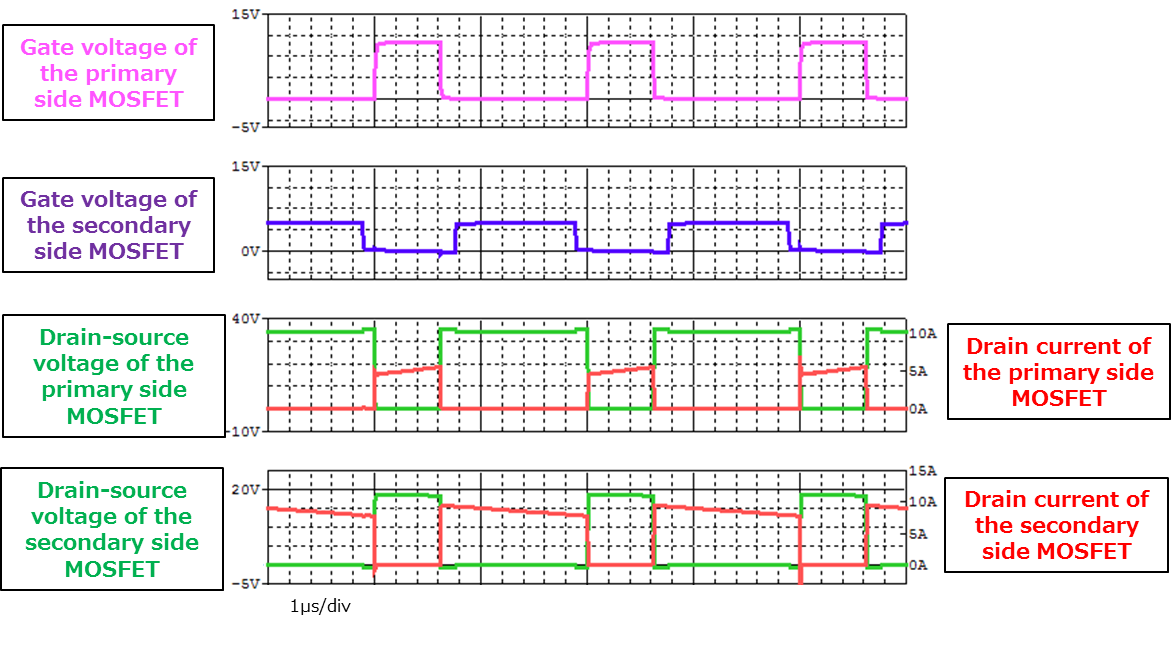

Basic simulation circuit of Flyback AC-DC power supply that can operate on OrCAD®.
