Non-Isolated Buck DC-DC Converter

This reference design provides design guide, data and other contents of multiple non-isolated buck DC-DC converter power supplies. Multiple variations of the power supply are optimized for various outputs, loads and board mounting areas.

Photo of non-isolated buck DC-DC converter.

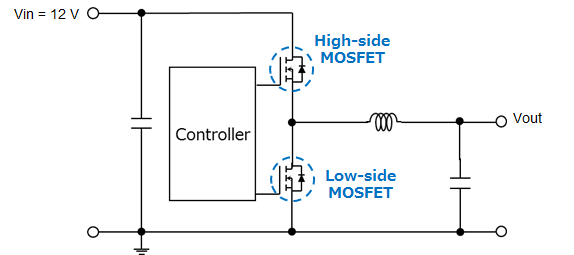

Simple block diagram of non-isolated buck DC-DC converter.

特性

  • Non-Isolated Buck DC-DC Converter with synchronous rectification
  • 8 power supply circuit designs with different output voltage and output power
  • Each power supply circuit design has 3 variations

說明

Input voltage DC 12 V
Output voltage/current 5V/5A、5V/8A、5V/12A、3.3V/10A、3.3V/13.3A、3.3V/18.2A、1.5V/10A、1.05V/10A
Optimization Each design is optimized for efficiency at 50% load and 100% load and also for small size
Design Variations 24
Efficiency curves of non-isolated buck DC-DC converter.
Efficiency Curves

設計文件

供設計人員使用的材料，例如電路操作概述和設計注意事項的解釋。請點擊每個選項以查看內容。

設計數據

提供可載入到EDA工具中的電路資料、PCB佈局資料以及PCB製造中使用的資料。來自多個工具供應商的可用格式。您可以使用喜歡的工具來自由的編輯它。

*1:實際PCB在CR5000BD上設計。其他文件由CR5000BD文件生成。

*2:數據在CR5000BD上生成。

使用東芝項目/產品

器件型號 器件目錄 使用部位・數量 說明
Power MOSFET (N-ch single VDSS≤30V) High-side N-ch MOSFET, 30 V, 0.0032 Ω@10V, SOP Advance, U-MOSⅧ-H
Power MOSFET (N-ch single VDSS≤30V) High-side N-ch MOSFET, 30 V, 0.004 Ω@10V, SOP Advance, U-MOSⅧ-H
Power MOSFET (N-ch single VDSS≤30V) High-side/Low-side N-ch MOSFET, 30 V, 0.0089 Ω@10V, SOP Advance, U-MOSⅧ-H
Power MOSFET (N-ch single VDSS≤30V) High-side/Low-side N-ch MOSFET, 30 V, 0.011 Ω@10V, SOP Advance, U-MOSⅧ-H
Power MOSFET (N-ch single VDSS≤30V) High-side N-ch MOSFET, 30 V, 0.0043 Ω@10V, TSON Advance, U-MOSⅧ-H
Power MOSFET (N-ch single VDSS≤30V) High-side/Low-side N-ch MOSFET, 30 V, 0.0089 Ω@10V, TSON Advance, U-MOSⅧ-H
Power MOSFET (N-ch single VDSS≤30V) High-side N-ch MOSFET, 30 V, 0.011 Ω@10V, TSON Advance, U-MOSⅧ-H
Power MOSFET (N-ch single VDSS≤30V) Low-side N-ch MOSFET, 30 V, 0.00065 Ω@10V, SOP Advance(N), U-MOSⅨ-H
Power MOSFET (N-ch single VDSS≤30V) Low-side N-ch MOSFET, 30 V, 0.00092 Ω@10V, SOP Advance(N), U-MOSⅨ-H
Power MOSFET (N-ch single VDSS≤30V) Low-side N-ch MOSFET, 30 V, 0.002 Ω@10V, SOP Advance, U-MOSⅨ-H
Power MOSFET (N-ch single VDSS≤30V) Low-side N-ch MOSFET, 30 V, 0.0029 Ω@10V, SOP Advance, U-MOSⅨ-H
Power MOSFET (N-ch single VDSS≤30V) Low-side N-ch MOSFET, 30 V, 0.0048 Ω@10V, SOP Advance, U-MOSⅨ-H
Power MOSFET (N-ch single VDSS≤30V) Low-side N-ch MOSFET, 30 V, 0.0016 Ω@10V, TSON Advance, U-MOSⅨ-H
Power MOSFET (N-ch single VDSS≤30V) Low-side N-ch MOSFET, 30 V, 0.0029 Ω@10V, TSON Advance, U-MOSⅨ-H
Power MOSFET (N-ch single VDSS≤30V) Low-side N-ch MOSFET, 30 V, 0.0052 Ω@10V, TSON Advance, U-MOSⅨ-H
