Automotive Brushed DC Motor Control Circuit Using TB9103FTG

The Automotive Brushed DC Motor Control Circuit Using TB9103FTG can control two motors in half-bridge mode or one motor in H-bridge mode. The Motor can be controlled using onboard switches or an external MCU. This reference design provides design guide, data, and other contents.

Board Appearance

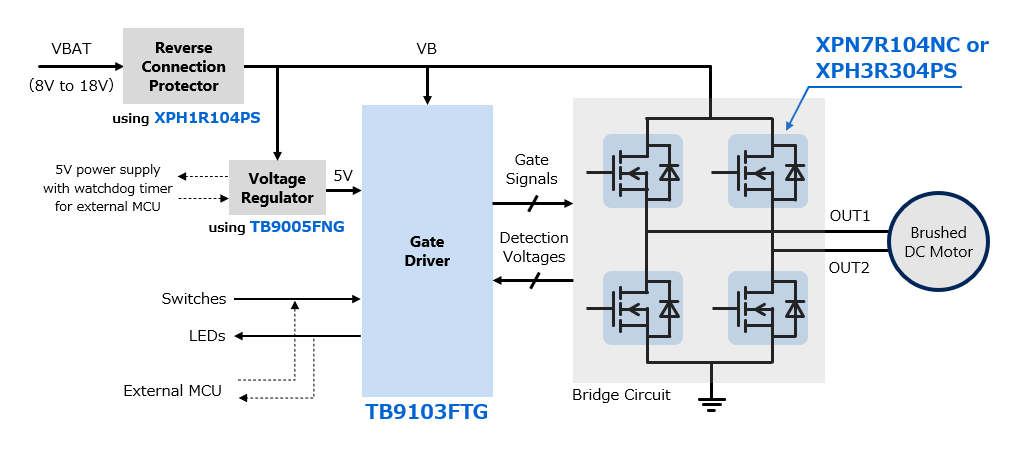

XPH1R104PS XPH1R104PS TB9005FNG TB9005FNG TB9103FTG TB9103FTG XPN7R104NC XPN7R104NC XPN7R104NC XPN7R104NC XPN7R104NC XPH3R304PS

Click on components for more details

特性

  • Automotive Brushed DC Motor Control Circuit
  • Supports half-bridge and H-bridge modes
  • Can be used in doors, windows, etc. of automobiles
  • Board Size : 75mm x 75mm

說明

Input Power Supply Voltage DC 8V to 18V
Input Control Signal Voltage DC 5V
Rated Output Current 10A (Max.) with XPN7R104NC MOSFETs / 20A (Max.) with XPH3R304PS MOSFETs

設計文件

供設計人員使用的材料,例如電路操作概述和設計注意事項的解釋。請點擊每個選項以查看內容。

設計數據

提供可載入到EDA工具中的電路資料、PCB佈局資料以及PCB製造中使用的資料。來自多個工具供應商的可用格式。您可以使用喜歡的工具來自由的編輯它。

使用東芝項目/產品

器件型號 器件目錄 使用部位・數量 說明
H-bridge driver for automobile Bridge Circuit Drive・1 DC Brushed Motor Pre-Driver
Automobile CPU regulator, built-in watchdog timer 5V Power Supply Circuit・1
Power MOSFET (N-ch single 30V<VDSS≤60V) Bridge Circuit・4 N-ch MOSFET, 40 V, 20 A, 0.0071 Ω@10V, TSON Advance(WF)
Power MOSFET (N-ch single 30V<VDSS≤60V) Bridge Circuit・4 N-ch MOSFET, 40 V, 60 A, 0.0033 Ω@10V, SOP Advance(WF)
Power MOSFET (N-ch single 30V<VDSS≤60V) Reverse Connection Protector Circuit・1 N-ch MOSFET, 40 V, 120 A, 0.00114 Ω@10V, SOP Advance(WF)
Small Low ON resistance MOSFETs LED Drive・2 P-ch MOSFET, -20 V, -0.8 A, 0.39 Ω@4.5V, SOT-723(VESM)
Transistor for low frequency small-signal amplification Reverse Connection Protector Circuit・1 NPN Bipolar Transistor, 50 V, 1 A, SOT-23F
Power transistor for high-speed switching applications 5V Power Supply Circuit・1 PNP Bipolar Transistor, -50 V, -5 A, New PW-Mold
Small-signal Schottky barrier diode Power Supply Circuit・3 30 V/0.2 A Schottky Barrier Diode, SOD-523(ESC)
Zener diode Bridge Circuit・1 27 V Zener Diode, SOD-323(USC)

相關文件

我們提供有助於設計和考慮類似電路的材料,例如已安裝產品的應用說明。請點擊每個選項以查看內容。

應用

Automotive Power Slide Door
Such as ensuring tolerance to motor lock current and reduction of power consumption are important in power sliding door. Toshiba provides information on a wide range of semiconductor products suitable for motor drive unit, power supply unit, etc., along with circuit configuration examples.
