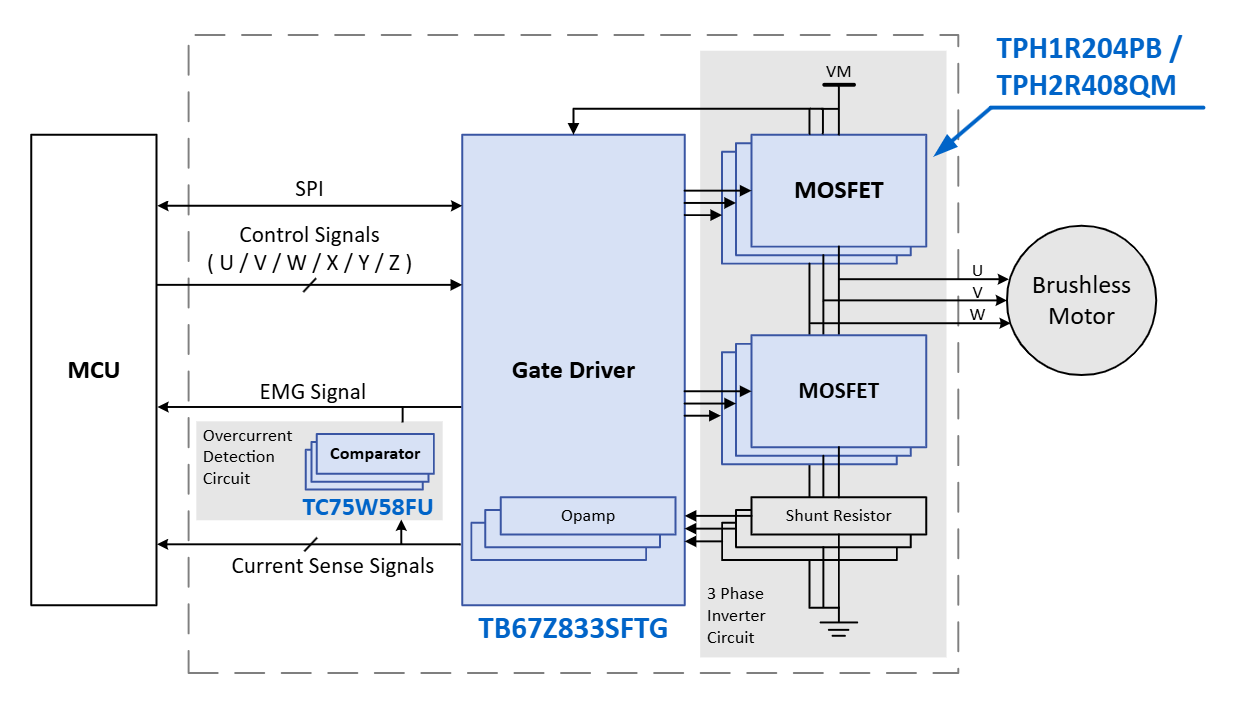

三相無刷直流馬達驅動電路結合了六個MOSFET(TPH1R204PB、TPH2R408QM)和一個閘極驅動器(TB67Z833SFTG),實現了緊湊而高效的馬達控制。它支援各種輸入模式。此參考設計提供設計指南、數據和其他內容。
Click on components for more details
輸入電源電壓 | (類型1)DC 12 V至24V,(類型2)DC 24 V至48 V |
---|---|
輸入控制訊號電壓 | DC 5V |
額定輸出電流 | 20A |
電路拓撲 | 3相逆變器電路 |
供設計人員使用的材料,例如電路操作概述和設計注意事項的解釋。請點擊每個選項以查看內容。
提供可載入到EDA工具中的電路資料、PCB佈局資料以及PCB製造中使用的資料。來自多個工具供應商的可用格式。您可以使用喜歡的工具來自由的編輯它。
器件型號 | 器件目錄 | 使用部位・數量 | 說明 |
---|---|---|---|
無刷馬達驅動IC | 3相逆變器電路・1 | 3相無刷馬達閘極驅動電路 | |
功率 MOSFET (N通道單通道 30V<VDSS≤60V) | 3相逆變器電路・6 | N通道MOSFET, 40 V, 0.0012 Ω@10V, SOP Advance, U-MOSⅨ-H | |
功率 MOSFET (N通道單通道 60V<VDSS≤150V) | 3相逆變器電路・6 | N通道MOSFET, 80 V, 0.00243 Ω@10V, SOP Advance, U-MOSⅩ-H | |
比較器(CMOS) | 雙路比較器(CMOS), 7 V, +/-3.5 V, SOT-505(SM8) |
我們提供有助於設計和考慮類似電路的材料,例如已安裝產品的應用說明。請點擊每個選項以查看內容。
